Restoring a CMM configuration

You can restore a saved CMM configuration through the CMM web interface.

Attention
  • When you restore a saved CMM configuration, all current configuration settings are erased. Be sure to save your current configuration before you restore, if you intend to use the current settings.
  • Some restore operations might cause you to lose web connectivity. When this occurs the final confirmation popup and log events might not be available. If web connectivity is lost, clear the browser cache and restart the web session.

Use the following instructions to restore a saved configuration file to the CMM, through the CMM web interface.

Note
When the CMM is set to Secure security mode, only the secure file transfer methods HTTPS and SFTP can be used for firmware updates and other tasks involving file transfers, such as transferring a backup configuration file to restore a configuration. The unsecure file transfer protocols HTTP, FTP, and TFTP are disabled when security is set to the Secure mode.
  1. From the CMM homepage click Mgt Module Management > Configuration > Restore Configuration from File.
  2. Enter the Passphrase.
  3. Enter the file path or browse for the saved configuration file, then press Enter.
  4. Click Restore Configuration.

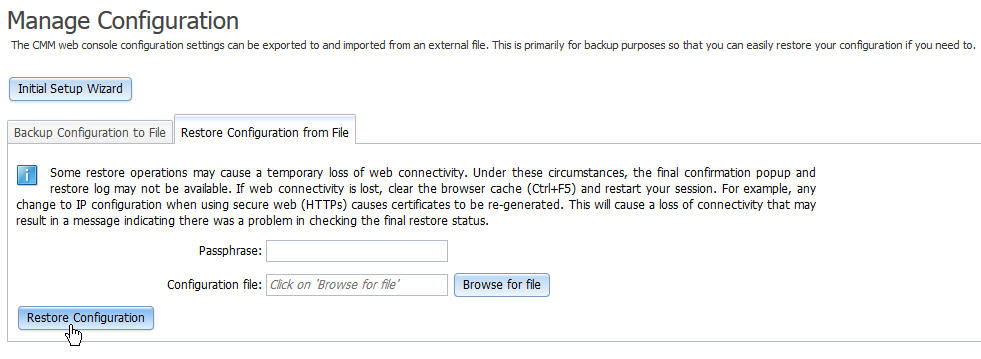

    Graphic illustrating Manage Configuration page, Restore Configuration from File login screen.

Note
You can also restore a saved CMM configuration through the CMM command-line interface. See read command for information.

When deploying CMMs to multiple chassis, you can apply the saved backup configuration file to the CMMs without having to configure each one individually. If static IP addresses are used, each CMM must have a unique address and only one CMM at a time can be added onto the network for discovery. Adding more than one CMM to the network without a unique IP address assignment for each results in IP address conflicts.

In order to successfully apply the backup configuration file, you must open the saved CMM backup configuration file in a text editor like Notepad, and change the IP address to a unique IP address for the CMM that is to be configured. Use the following to change the IP address in a saved CMM backup configuration file and apply it to a CMM.

  1. Navigate to the location where the CMM backup configuration file is saved and open the file with a text editor like Notepad.
  2. Locate the IPv4 address of the primary CMM in the Primary Management Module IPv4 Configuration section of the Network Interfaces information. The IPv4 address used in the example is 192.168.1.1 (highlighted in bold in the code block below).
    Note
    The entry beginning with ifconfig -T mm[P] -eth0... is shown with a line break after -s 255 -s 255.255.255.0. When this command is entered, the entire entry must all be on one line.
    #############################
    ### Network Interfaces
    #############################

    ifconfig -T mm[P] -eth0 -dn

    ### Primary Management Module IPv4 Configuration

    ifconfig -T mm[P] -eth0 -i 192.168.1.1 -g 0.0.0.0 -s 255.255.255.0
     -n MM5CF3FC25D969
    ifconfig -T mm[P] -eth0 -c dthens

  3. Change the Primary Management Module IPv4 Configuration IP address to a unique address and save the file.
  4. Open the web interface for the CMM that is being added, and from the Mgt Module Management menu, click Configuration > Restore Configuration from File
  5. Enter and confirm the Passphrase.
  6. Browse for and select the CMM backup configuration file to use, and click Open.
