Space planning

Follow the guidelines in this topic to make plans for the space that will contain the rack cabinet.

Dimensions of the 48U rack cabinet:

  • Height: 2277 mm (89.6 in)

  • Width (without outriggers): 600 mm (23.6 in)

  • Depth (without extensions): 1200 mm (47.2 in)

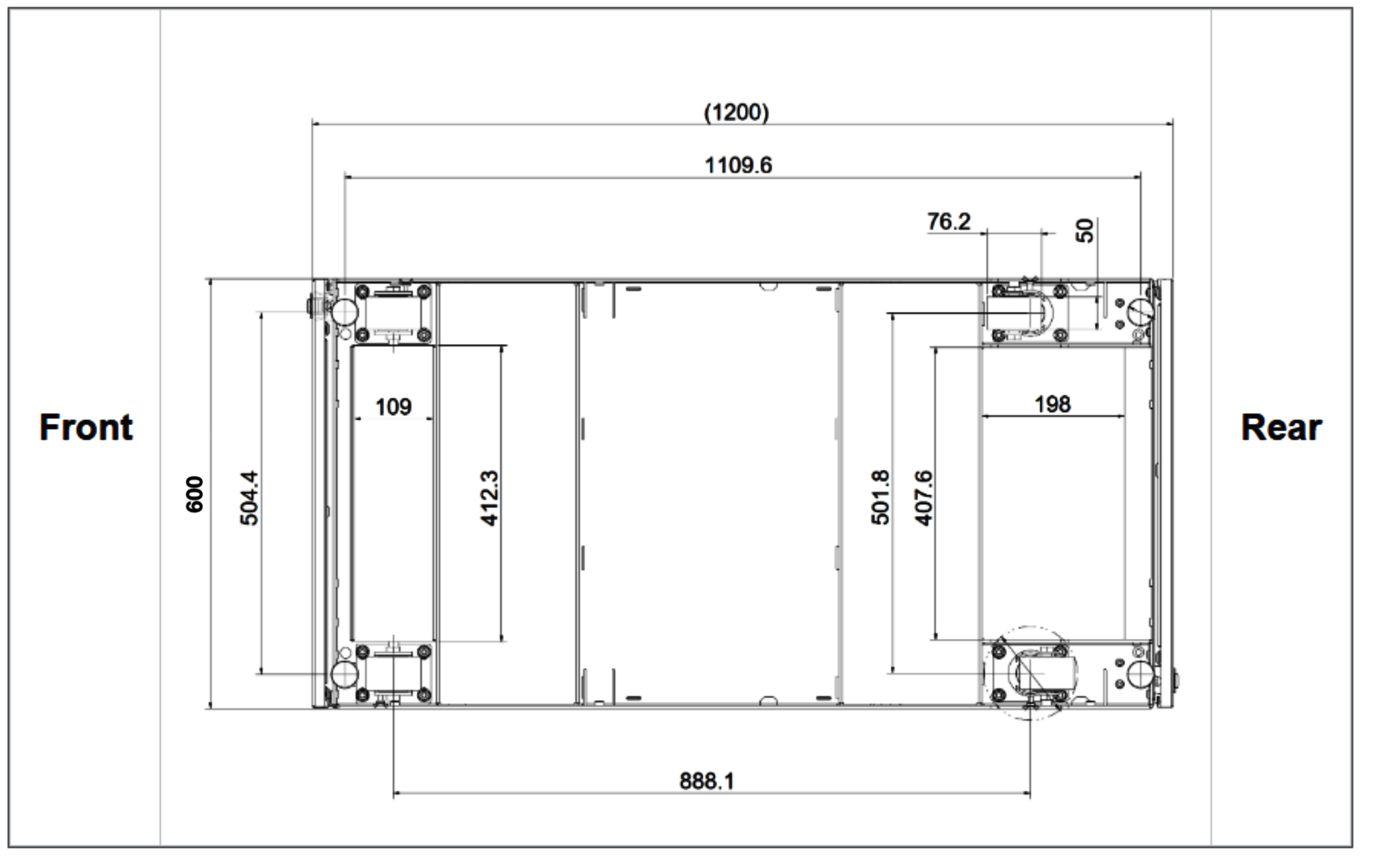

See the following illustration for distances between various components on the bottom of the rack cabinet, and make plans accordingly.

Figure 1. Space planning (mm)
