Fan control board LEDs

The following illustrations show the light-emitting diodes (LEDs) on the fan control board.

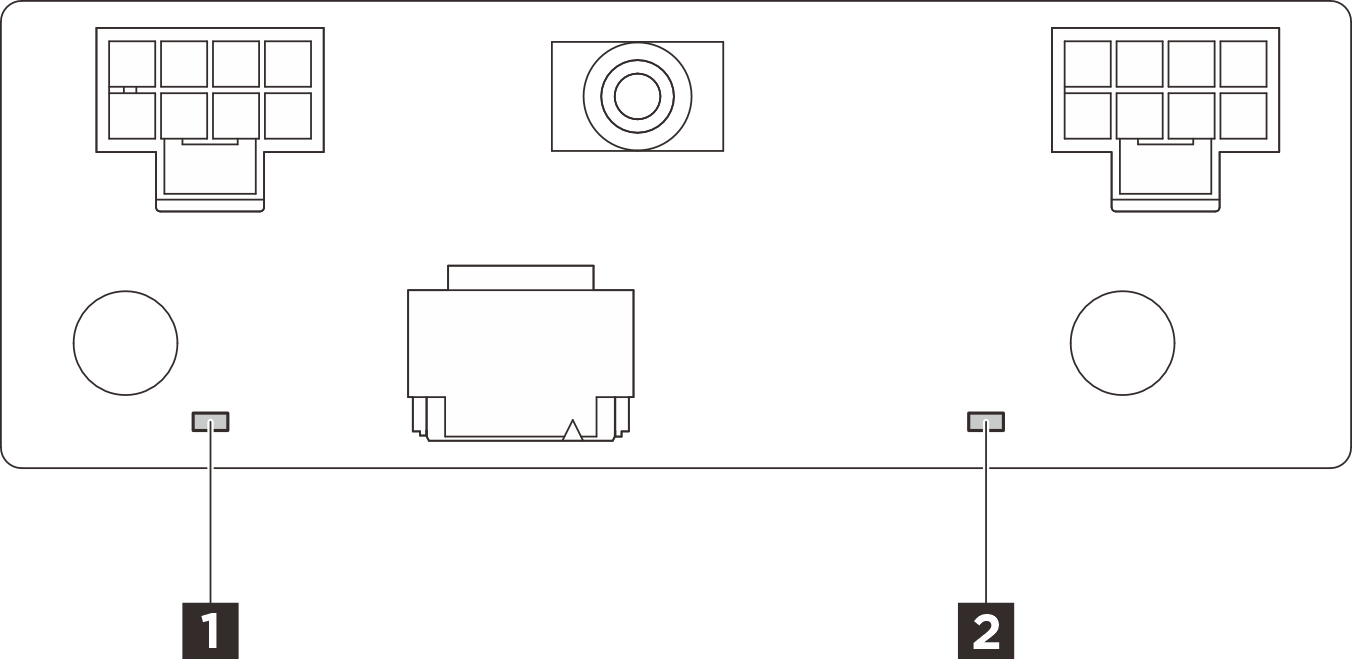

Figure 1. Fan control board LEDs

Table 1. Fan control board LEDs description and actions

LED	Description and actions
1 Fan 3 error LED 2 Fan 4 error LED	LED on: an error has occurred to the fan the LED represents.
