Parts list
Identify each of the components that is available for your server with the parts list.
Go to Lenovo Data Center Support and navigate to the support page for your server.
Click .
Enter the serial number to view a listing of parts for your server.
It is highly recommended that you check the power summary data for your server using Lenovo Capacity Planner before purchasing any new parts.
T1: Tier 1 customer replaceable unit (CRU). Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request with no service agreement, you will be charged for the installation.
T2: Tier 2 customer replaceable unit (CRU). You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
F: Field replaceable unit (FRU). FRUs must be installed only by trained service technicians.
C: Consumable and Structural parts. Purchase and replacement of consumable and structural parts (components, such as a filler or bezel) is your responsibility. If Lenovo acquires or installs a structural component at your request, you will be charged for the service.

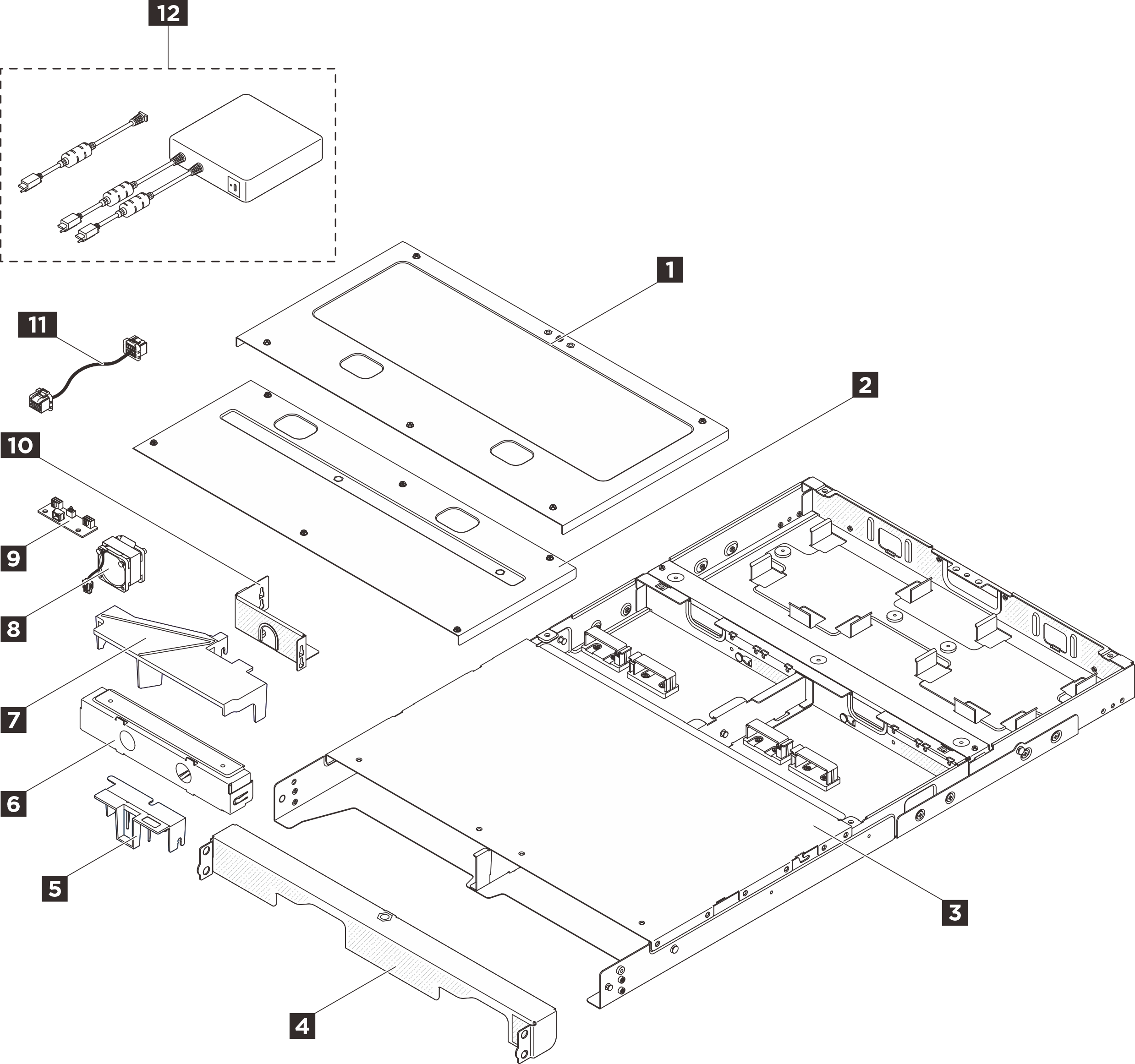

1U2N Enclosure components
| Index | Description | Type |
|---|---|---|
For more information about ordering parts:
| ||
| 1 | 1U2N rear top cover | T1 |
| 2 | 1U2N middle top cover | T1 |
| 3 | 1U2N enclosure | F |
| 4 | 1U2N shipping bracket | T1 |
| 5 | Safety cover | T1 |
| 6 | 1U2N node filler | C |
| 7 | 1U2N air baffle | T1 |
| 8 | Fan module | T2 |
| 9 | Fan control board | F |
| 10 | Fan control board cage | T1 |
| 11 | Fan control board cable | T1 |
| 12 | ThinkEdge 300W 230V/115V external power adapter kits 1 | T1 |

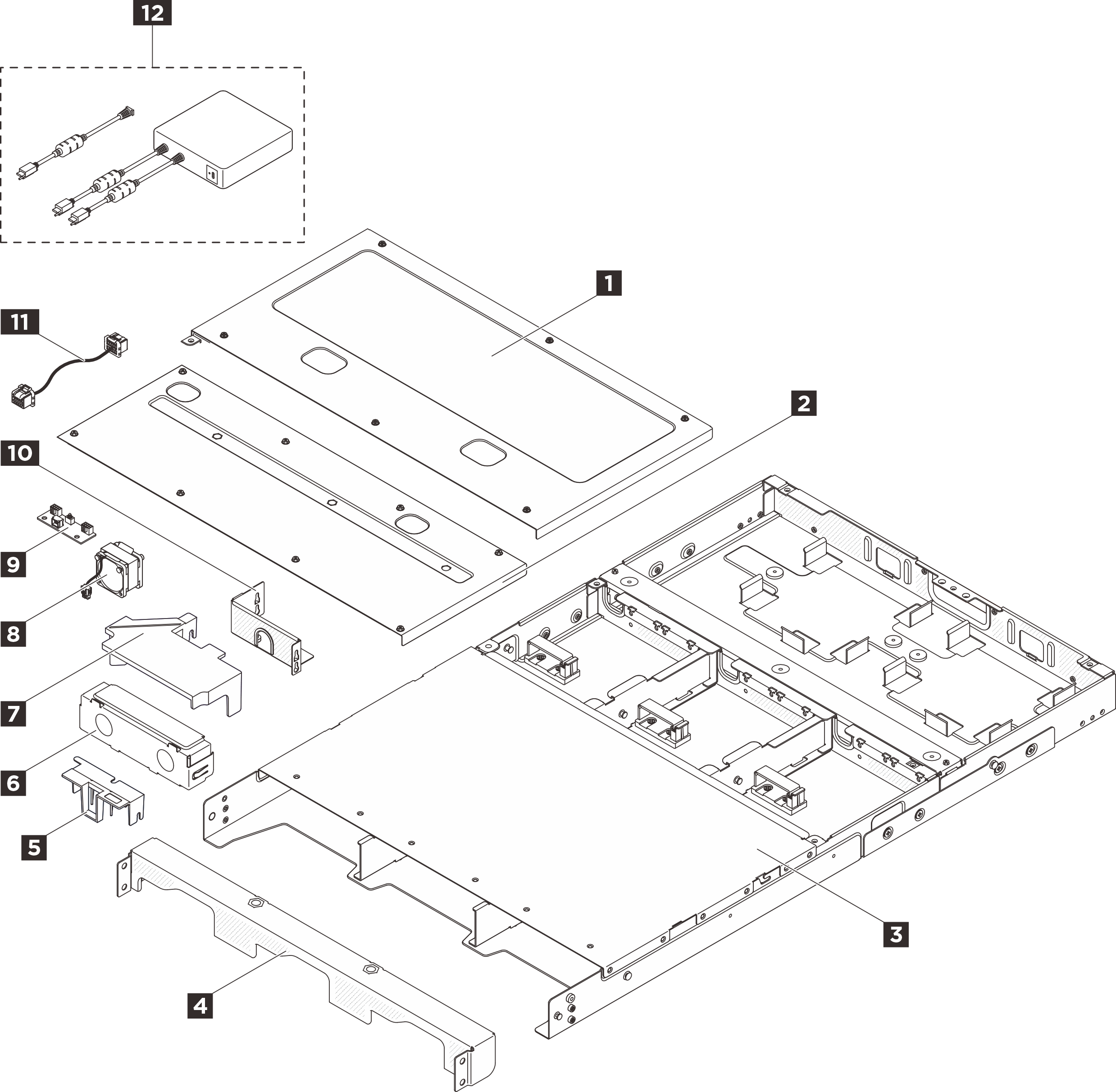

1U3N Enclosure components
| Index | Description | Type |
|---|---|---|
For more information about ordering parts:
| ||
| 1 | 1U3N rear top cover | T1 |
| 2 | 1U3N middle top cover | T1 |
| 3 | 1U3N enclosure | F |
| 4 | 1U3N shipping bracket | T1 |
| 5 | Safety cover | T1 |
| 6 | 1U3N node filler | C |
| 7 | 1U3N air baffle | T1 |
| 8 | Fan module | T2 |
| 9 | Fan control board | F |
| 10 | Fan control board cage | T1 |
| 11 | Fan control board cable | T1 |
| 12 | ThinkEdge 300W 230V/115V external power adapter kits | T1 |
