Management NIC adapter cable routing
This section provides cable routing information for the management NIC adapter.
Note
Depending on the model, the management NIC adapter might not be supported.

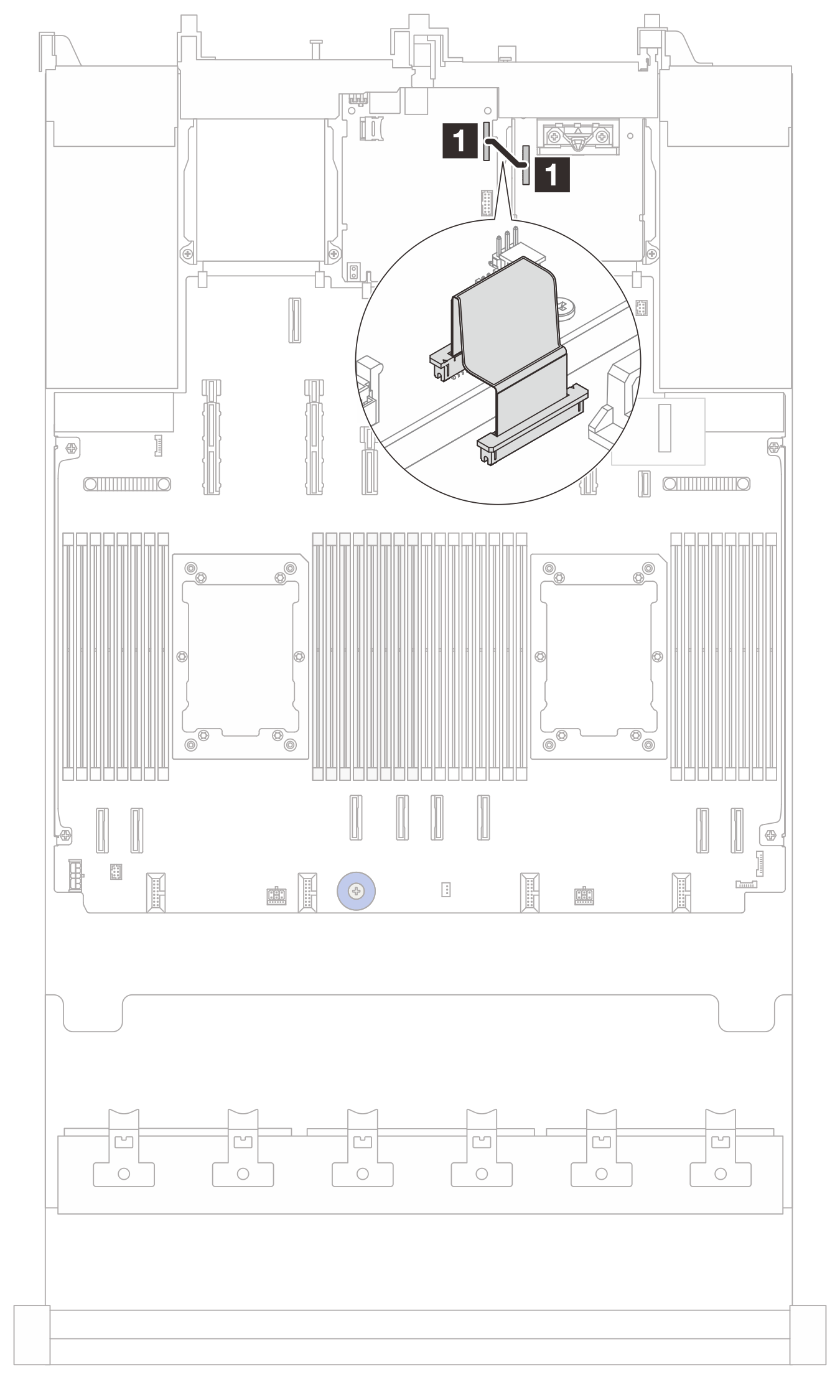

Figure 1. Cable routing for management NIC adapter
| From | To (system I/O board) |
|---|---|
| 1 Management NIC adapter | 1 Second management Ethernet connector |
