Remove an EMC shield

Use this information to remove an EMC shield.

About this task

S002
disconnect all power
CAUTION
The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
Attention
Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Remove the lower EMC shield.
    1. Press and hold the blue latch.
    2. Rotate the top of the shield outwards.
    3. Lift the shield up to clear the manifold pipe that enters the enclosure.

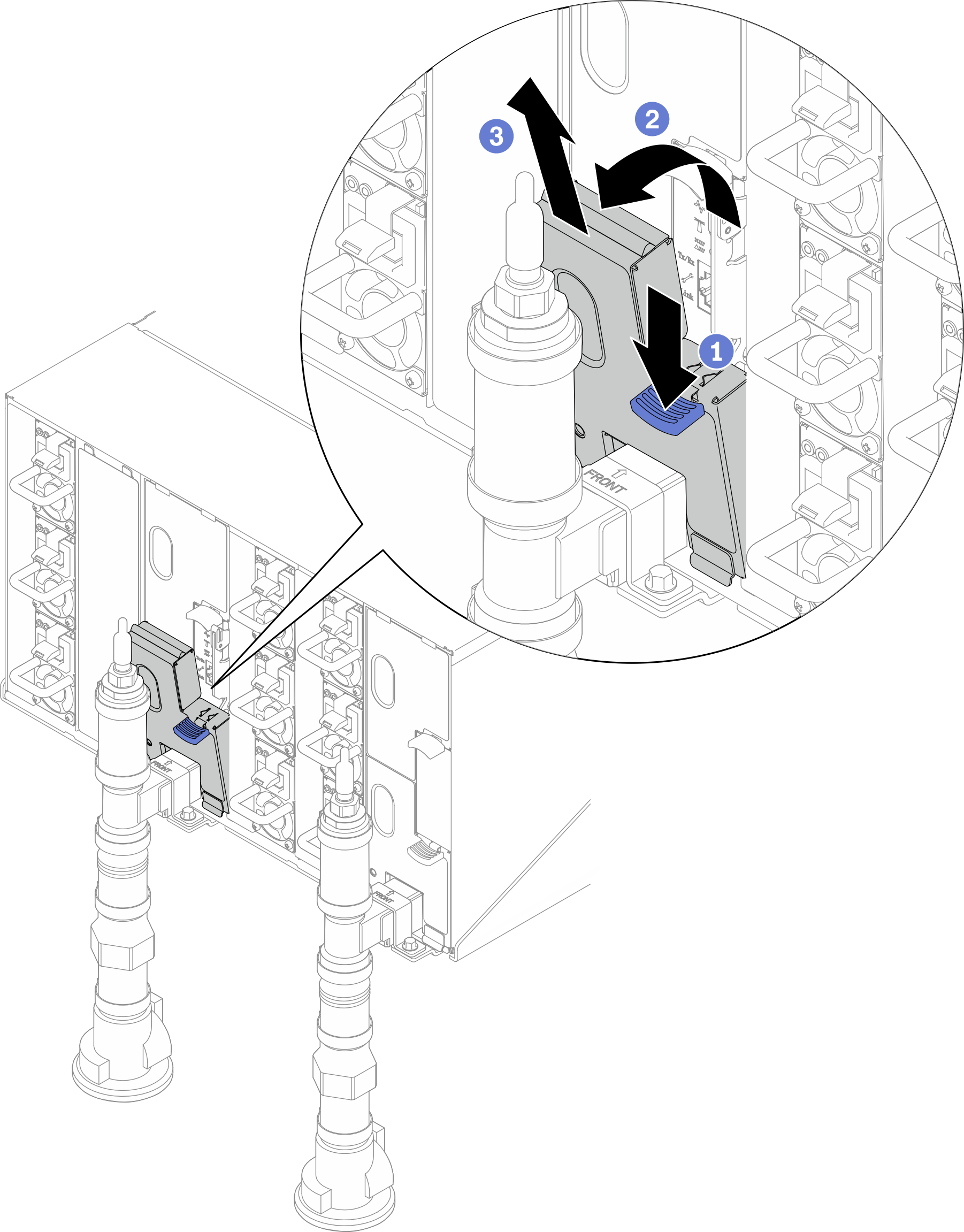

    Figure 1. Lower EMC shield removal
    Lower EMC shield removal
    Note
    If there is a manifold vertical pipe in front of the EMC shield, you will need to slide the EMC shield sideways to remove it from underneath the pipe.

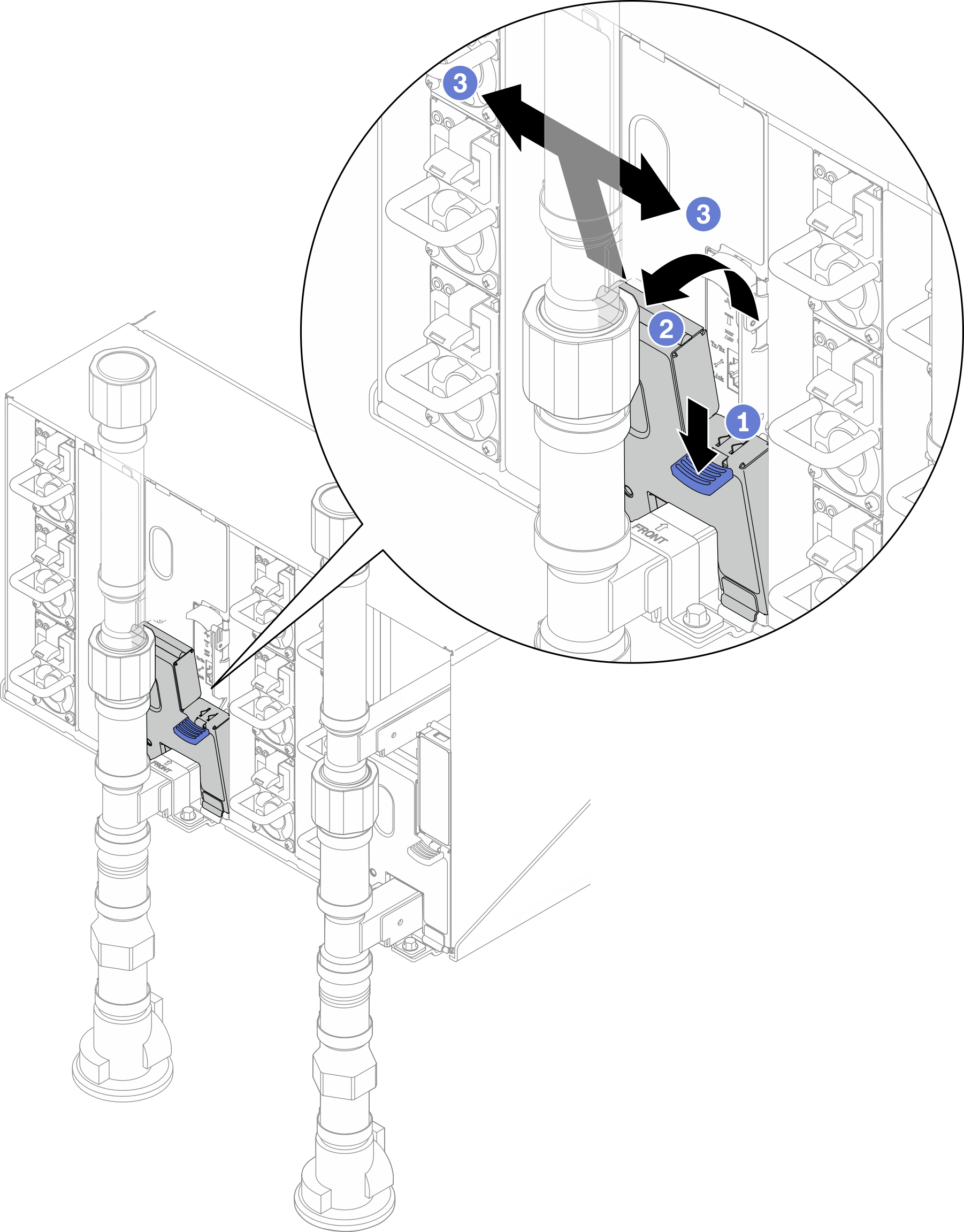

    Figure 2. EMC shield removal
    EMC shield removal
  2. Remove the upper EMC shield.
    1. Press and hold the blue latch.
    2. Rotate the bottom of the shield outwards.
    3. Lift the shield up to clear the manifold pipe that enters the enclosure.
    Figure 3. Upper EMC shield removal
    Upper EMC shield removal
After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
