Parts listing

See this topic to learn about parts of ThinkSystem Heavy Duty Full Depth 48U Rack Cabinet.

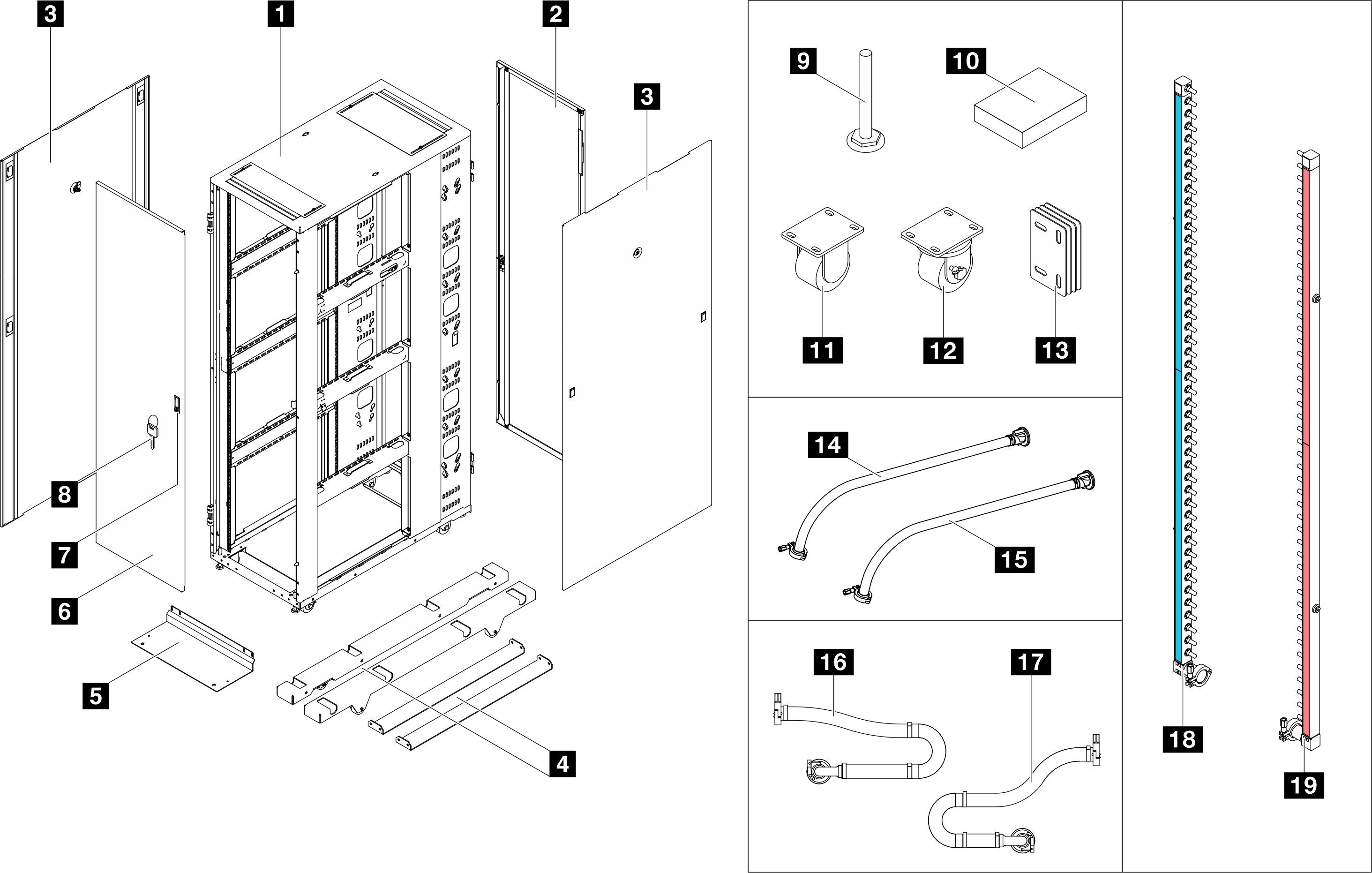

Figure 1. Parts listing

Table 1. Heavy Duty Full Depth 48U Rack Cabinet components

1 Rack cabinet frame	11 Fixed caster
2 Rear door	12 Swivel caster
3 Side covers	13 Baying kit
4 Outriggers (side stabilizers)	14 In-row hose supply side
5 Front stabilizer	15 In-row hose return side
6 Front door	16 In-rack connection set supply side
7 Door latch	17 In-rack connection set return side
8 Keys (doors and side covers)	18 Manifold supply side
9 Leveling pad	19 Manifold return side
10 Tools

Figure 2. Tool box

	1 20 M6 C type caged nuts
	2 30 M6 G type caged nuts
	3 20 M5 C type caged nuts
	4 10 M6 flanges
	5 20 M5 screws
	6 20 M6 screws
	7 Wrench for 10, 14, 5, 18, 26
	8 Wrench for 8, 9, 2
	9 Wrench for 10, 13
	10 Nut insertion tool
	11 15 Velcro cable ties
	12 Grounding kit

Note

Make sure to use the nuts and screws that come in the tool box.
