Parts of a MetroCluster IP configuration

As you plan your MetroCluster IP configuration, you should understand the hardware components and how they interconnect.

Key hardware elements​

A MetroCluster IP configuration includes the following key hardware elements:

  • Storage controllers

    The storage controllers are configured as two two-node clusters.

  • IP network

    This back-end IP network provides connectivity for two distinct uses:

    • Standard cluster connectivity for intra-cluster communications.

      This is the same cluster switch functionality used in non-MetroCluster switched ONTAP clusters.

    • MetroCluster back-end connectivity for replication of storage data and non-volatile cache.

  • Cluster peering network

    The cluster peering network provides connectivity for mirroring of the cluster configuration, which includes storage virtual machine (SVM) configuration. The configuration of all of the SVMs on one cluster is mirrored to the partner cluster.



Disaster Recovery (DR) groups​

A MetroCluster IP configuration consists of one DR group of four nodes.

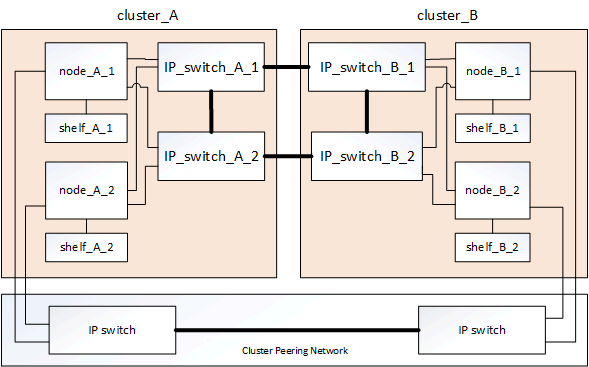

The following illustration shows the organization of nodes in a four-node MetroCluster configuration:



  • Illustration of the local HA pairs in a MetroCluster configuration
    Each MetroCluster site consists of storage controllers configured as an HA pair. This allows local redundancy so that if one storage controller fails, its local HA partner can take over. Such failures can be handled without a MetroCluster switchover operation.
  • Illustration of the MetroCluster IP and cluster interconnect network
    ONTAP clusters typically include a cluster interconnect network for traffic between the nodes in the cluster. In MetroCluster IP configurations, this network is also used for carrying data replication traffic between the MetroCluster sites.
  • Illustration of the cluster peering network
    The two clusters in the MetroCluster configuration are peered through a customer-provided cluster peering network. Cluster peering supports the synchronous mirroring of storage virtual machines (SVMs, formerly known as Vservers ) between the sites.
