Install the front shipping bracket
Follow the instructions to install the front shipping bracket.
About this task
Note
If the solution is going to be shipped in the rack cabinet, install the front shipping bracket to secure the solution to the rack.
Attention
Read the Installation Guidelines to ensure that you work safely.
Procedure
Install the front shipping bracket.
Align the two holes on the bracket with the two thumbscrews on the front of the enclosure; then, push the bracket toward the enclosure until it is firmly seated.
Rotate the upper plunger to the locked position.
Rotate the lower plunger to the locked position.
Use Phillips #1 screwdriver to fasten the four screws to secure the bracket to the enclosure.

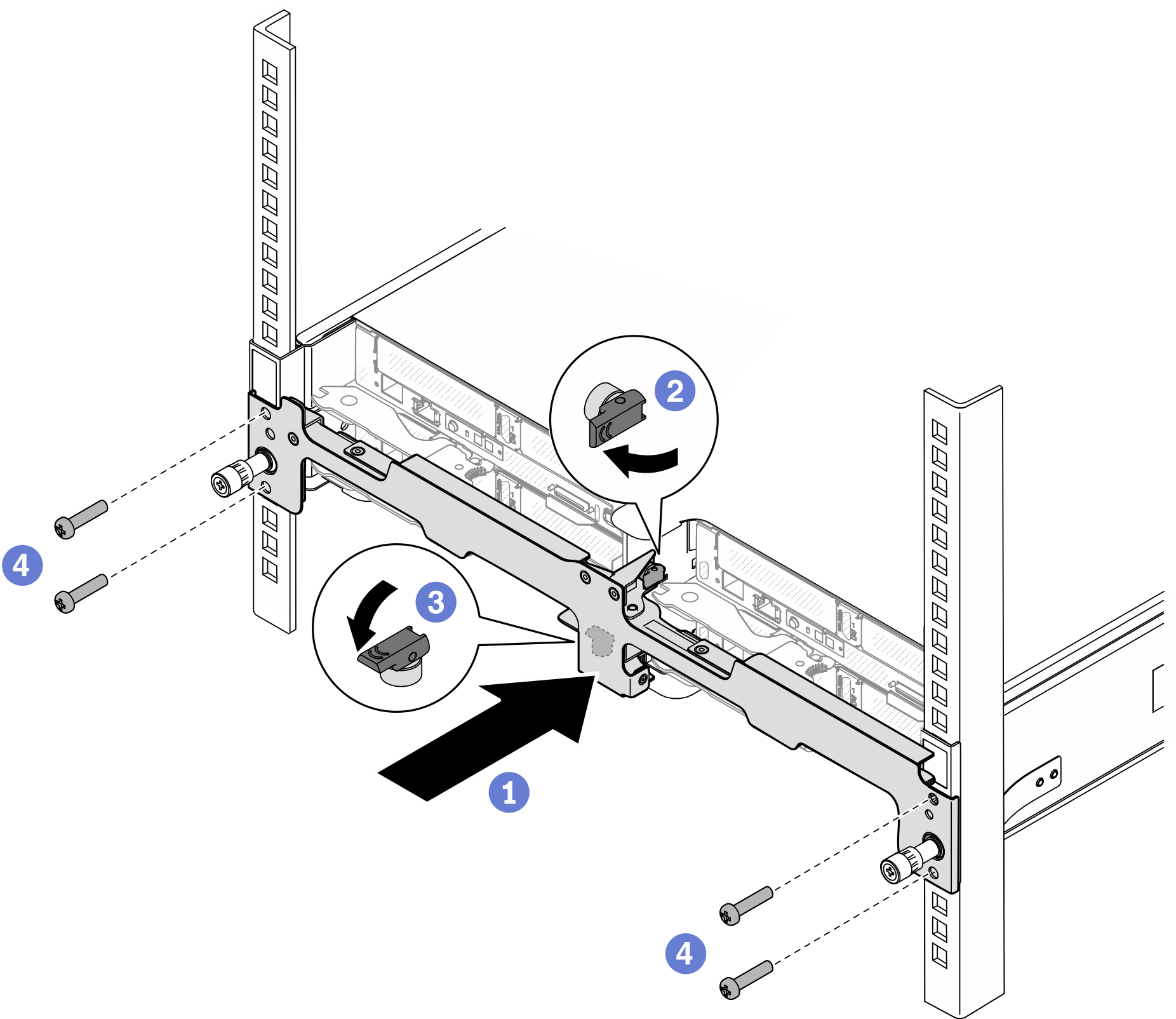

Figure 1. Front shipping bracket installation
