Install the rubber feet

Follow instructions in this section to install the rubber feet.

About this task

Attention

Procedure

  1. Place the bottom side of the node facing up
  2. Remove the film on the rubber feet.
  3. Stick the rubber feet to the node or the PCIe expansion kit as shown.

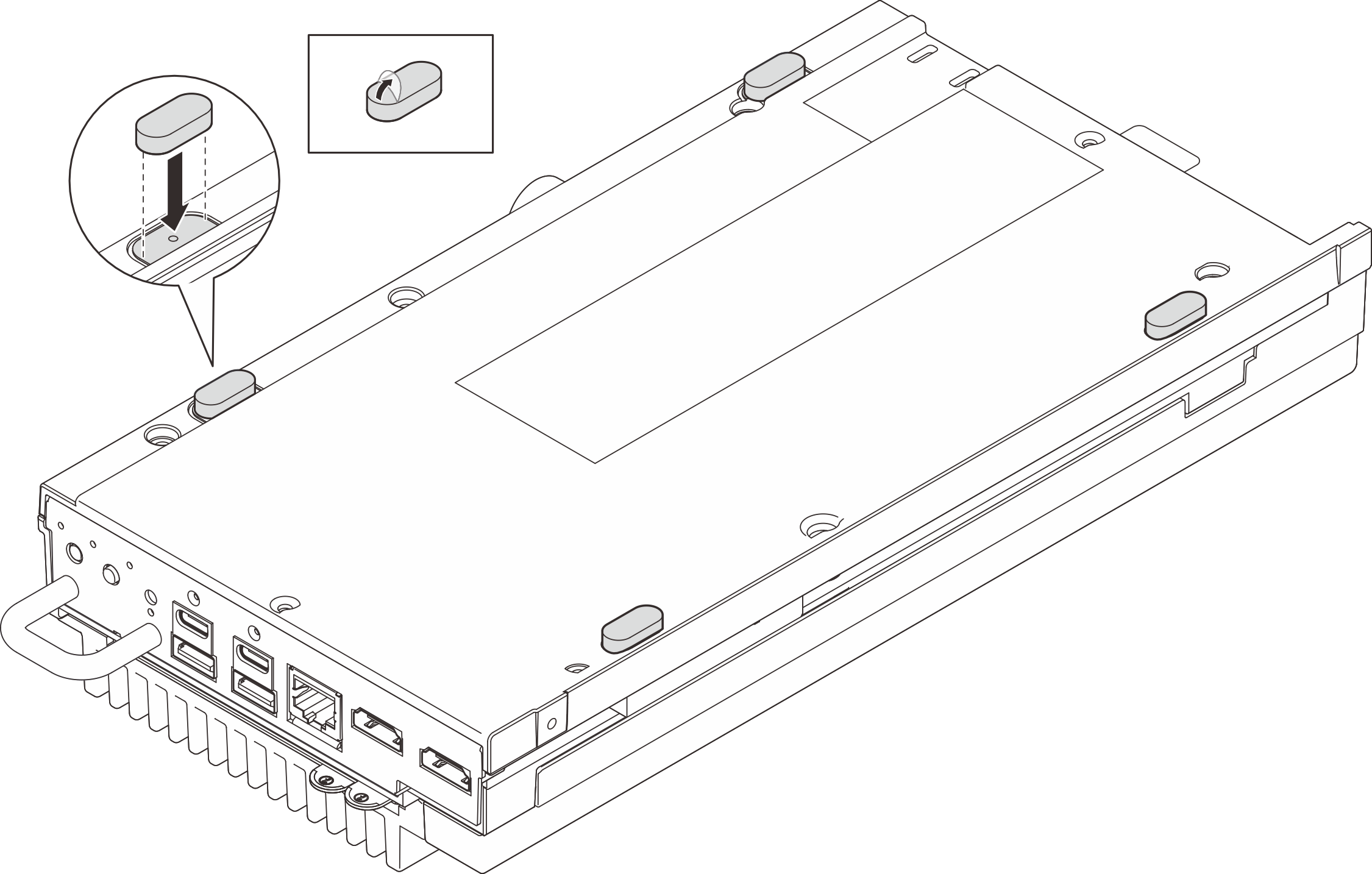

    Figure 1. Installing the rubber feet to the node

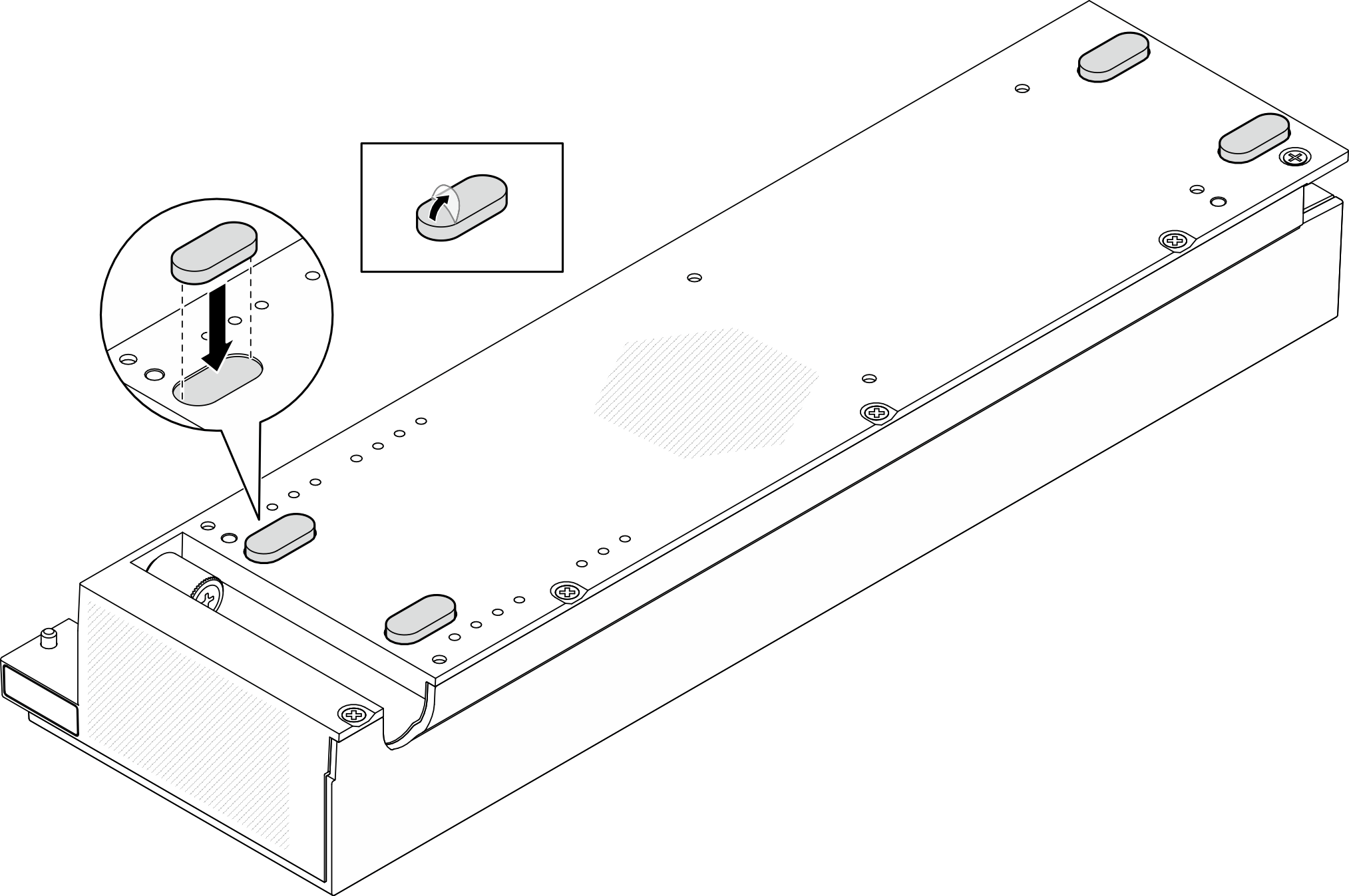

    Figure 2. Installing the rubber feet to the expansion kit

After you finish

Complete the parts replacement. See Complete the parts replacement.
