Import SBE package

For Lenovo ThinkAgile MX solutions that are not Premier Solutions, importing a Standard SBE package is the method used to update the solution using an SBE package.

1. The Standard SBE package must be manually downloaded from the Lenovo ThinkAgile MX updates repository site (https://thinkagile.lenovo.com/MX/SBE_Std/) and copied to a CSV (Cluster Shared Volume) on the Azure Local instance. The SBE downloads have been relocated to its own page atop the existing updates repository landing page:

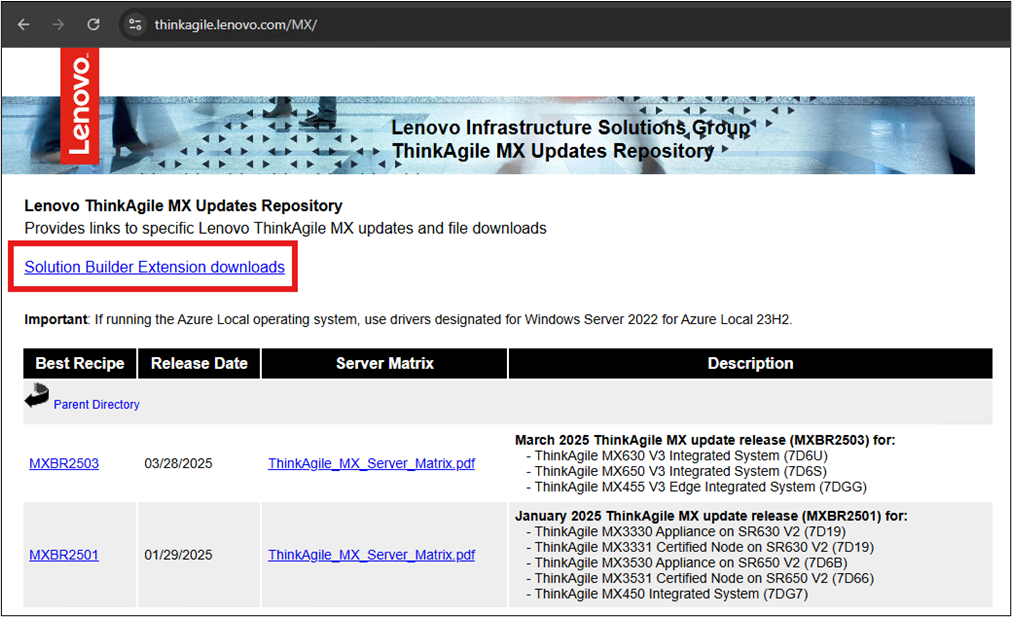

   Figure 1. New SBE section in ThinkAgile MX Updates Repository landing page

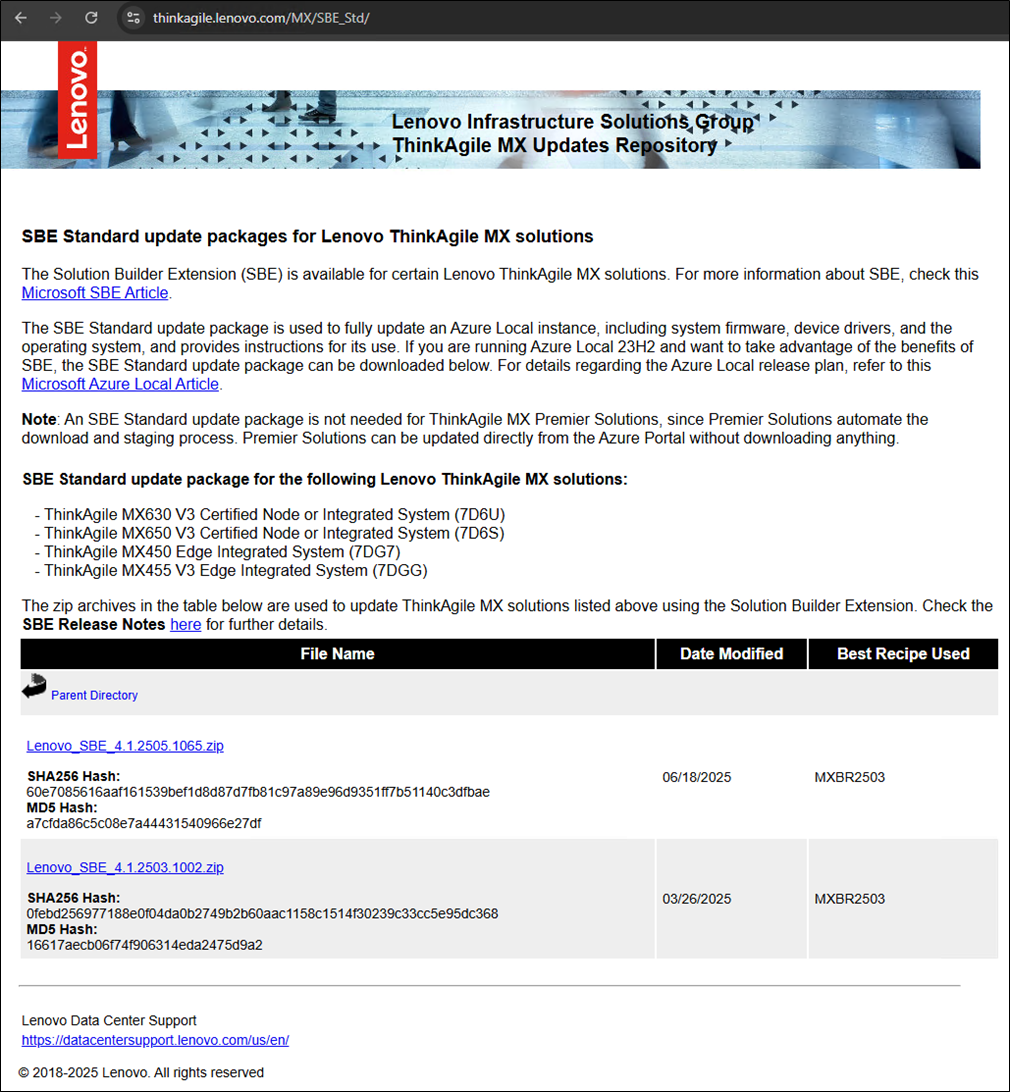

   Figure 2. All Lenovo Standard SBE packages can be downloaded as a ZIP file that contains all SBE files


   Once the SBE package has been downloaded, extract the zip archive, which contains the following 3 files:

   • SBE_Discovery_Lenovo.xml
   • SBE_Lenovo_ThinkAgileMXStandard_<Version>.xml
   • SBE_Lenovo_ThinkAgileMXStandard_<Version>.zip

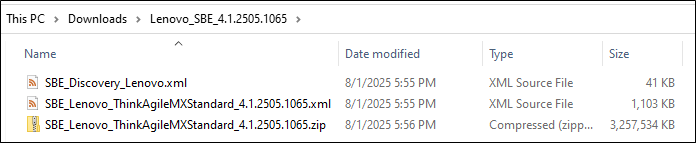

   Figure 3. Example of SBE files contained in ZIP archive


2. All 3 files in the list (file names starting with “SBE_”) are the files that will need to be copied onto a CSV on the cluster. Microsoft suggests running the following PowerShell command on one of the nodes in the Azure Local instance to create a “Sideload” directory in the proper location:

   New-Item C:\ClusterStorage\Infrastructure_1\Shares\SU1_Infrastructure_1\Sideload -ItemType Directory


3. Once the directory has been created, copy the 3 extracted files whose names begin with “SBE_” from the downloaded SBE package to the directory.

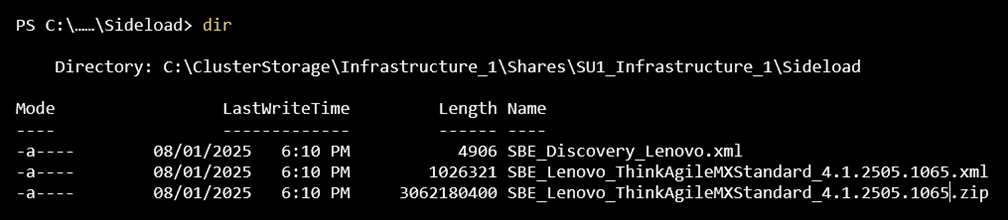

   Figure 4. SBE_ files in directory


4. Complete importing the SBE update using the following PowerShell command:

   Add-SolutionUpdate -SourceFolder 'C:\ClusterStorage\Infrastructure_1\Shares\SU1_Infrastructure_1\Sideload'


5. Verify that the Update service discovers the SBE update and that it is available to start preparation and installation using the following command:

   Get-SolutionUpdate


6. Details about the update can be found in the output of the command, including the State of the update, which should show as “Ready”.

   Figure 5. Get-SolutionUpdate


7. Should you have too many updates listed, you can filter the updates with the following command:





   Get-SolutionUpdate | Where-Object { $_.PackageType -eq 'SBE' -and $_.State -eq 'Ready' }
