Creating a report to show aggregate total versus available capacity charts

You can create a report to analyze storage total and committed capacity in an Excel chart format.

1. In the left navigation pane, click Storage > Aggregates.
2. Select Reports > Download Excel.




   Depending on your browser, you might need to click OK to save the file.

3. In Excel, open the downloaded file.
4. If needed, click Enable Editing.

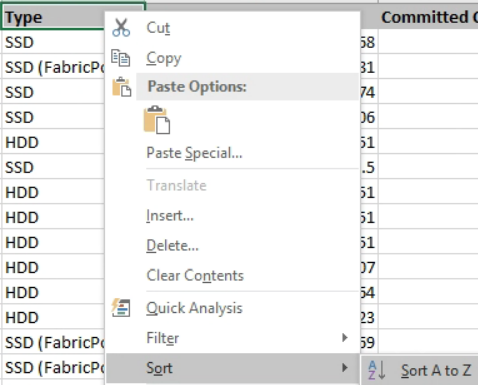

5. On the data sheet, right-click the Type column and select Sort > Sort A to Z.



   This will arrange your data by storage type, such as:

   • HDD
   • Hybrid
   • SSD
   • SSD (FabricPool)
6. Select the Type, Total Data Capacity, and Available Data Capacity columns.

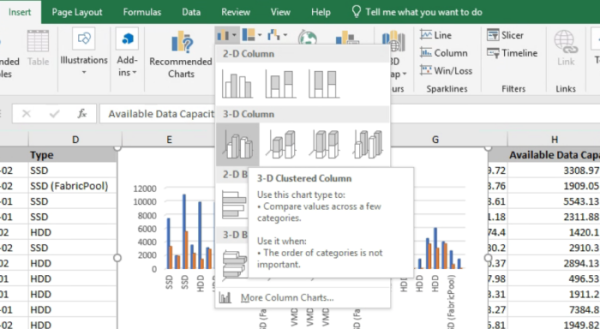

7. On the Insert menu, select a 3-D column chart.
   The chart appears on the data sheet.




8. Right-click the chart and select Move Chart.
9. Select New sheet and name the sheet Total Storage Charts.
   Note

   Make sure the new sheet appears after the info and data sheets.

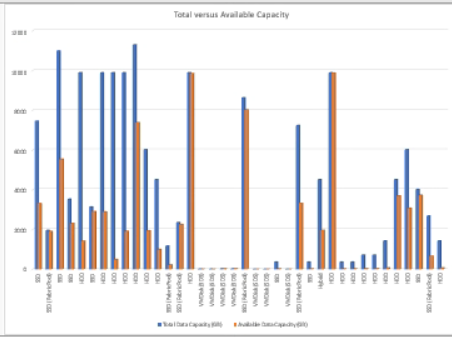

10. Name the chart title Total versus Available Capacity.
11. Using the Design and Format menus, available when the chart is selected, you can customize how the chart looks.
12. When satisfied, save the file with your changes. Do not change the file name or location.



13. In Unified Manager, select Reports > Upload Excel.
    Note

    Make sure you are in the same view where you downloaded the Excel file.
14. Select the Excel file you have modified.
15. Click Open.
16. Click Submit.
    A check mark appears beside the Reports > Upload Excel menu item.




17. Click Scheduled Reports.
18. Click Add Schedule to add a new row to the Report Schedules page so that you can define the schedule characteristics for the new report.
    Note

    Select the XLSX format for the report.
19. Enter a name for the report schedule and complete the other report fields, then click the check mark () at the end of the row.
    The report is sent immediately as a test. After that, the report generates and is sent by email to the recipients listed using the specified frequency.
