Creating a report to view available volume capacity charts

You can create a report to analyze available volume capacity in an Excel chart.

1. In the left navigation pane, click Storage > Volumes.
2. Select Reports > Download Excel.


   Depending on your browser, you might need to click OK to save the file.

3. If needed, click Enable Editing.
4. In Excel, open the downloaded file.
5. On the data sheet, select the data that you want to use in the Volume and Available Data % columns.
6. On the Insert menu, select a 3-D pie chart.
   The chart shows which volumes have the largest available space. The chart appears on the data sheet.

   Note

   Depending on your network configuration, selecting the entire columns or too many data rows might make your pie chart unreadable. This sample uses the 3-D pie chart, but you can use any chart type. Use the chart that best displays the data you want to capture.
7. Name the chart title Available Capacity.

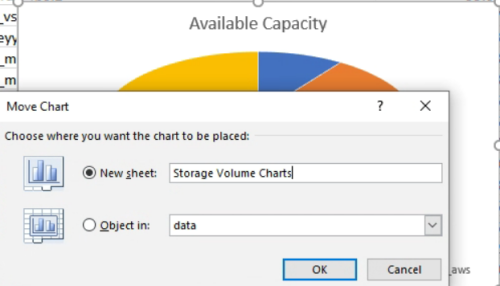

8. Right-click the chart and select Move Chart.
9. Select New sheet and name the sheet Storage Volume Charts.
   Note

   Make sure the new sheet appears after the info and data sheets.

10. Using the Design and Format menus, available when the chart is selected, you can customize how the chart looks.
11. When satisfied, save the file with your changes.
12. In Unified Manager, select Reports > Upload Excel.
    Note

    Make sure you are in the same view where you downloaded the Excel file.
13. Select the Excel file you have modified.
14. Click Open.
15. Click Submit.
    A check mark appears beside the Reports > Upload Excel menu item.



16. Click Scheduled Reports.
17. Click Add Schedule to add a new row to the Report Schedules page so that you can define the schedule characteristics for the new report.
18. Enter a name for the report schedule and complete the other report fields, then click the check mark () at the end of the row.
    Note

    Select the XLSX format for the report.
    The report is sent immediately as a test. After that, the report generates and is sent by email to the recipients listed using the specified frequency.
