Remove the front shipping bracket

Use this information to remove the front shipping bracket.

About this task

Note
If the solution was shipped in the rack cabinet, make sure to remove the front shipping bracket before powering on the solution to prevent potential thermal issues.
Attention
Read the Installation Guidelines to ensure that you work safely.

Procedure

Remove the front shipping bracket.
  1. Use Phillips #1 screwdriver to loosen the four screws that secure the bracket to the enclosure.
  2. Rotate the upper plunger to the unlocked position.
  3. Rotate the lower plunger to the unlocked position.
  4. Remove the bracket from the enclosure.

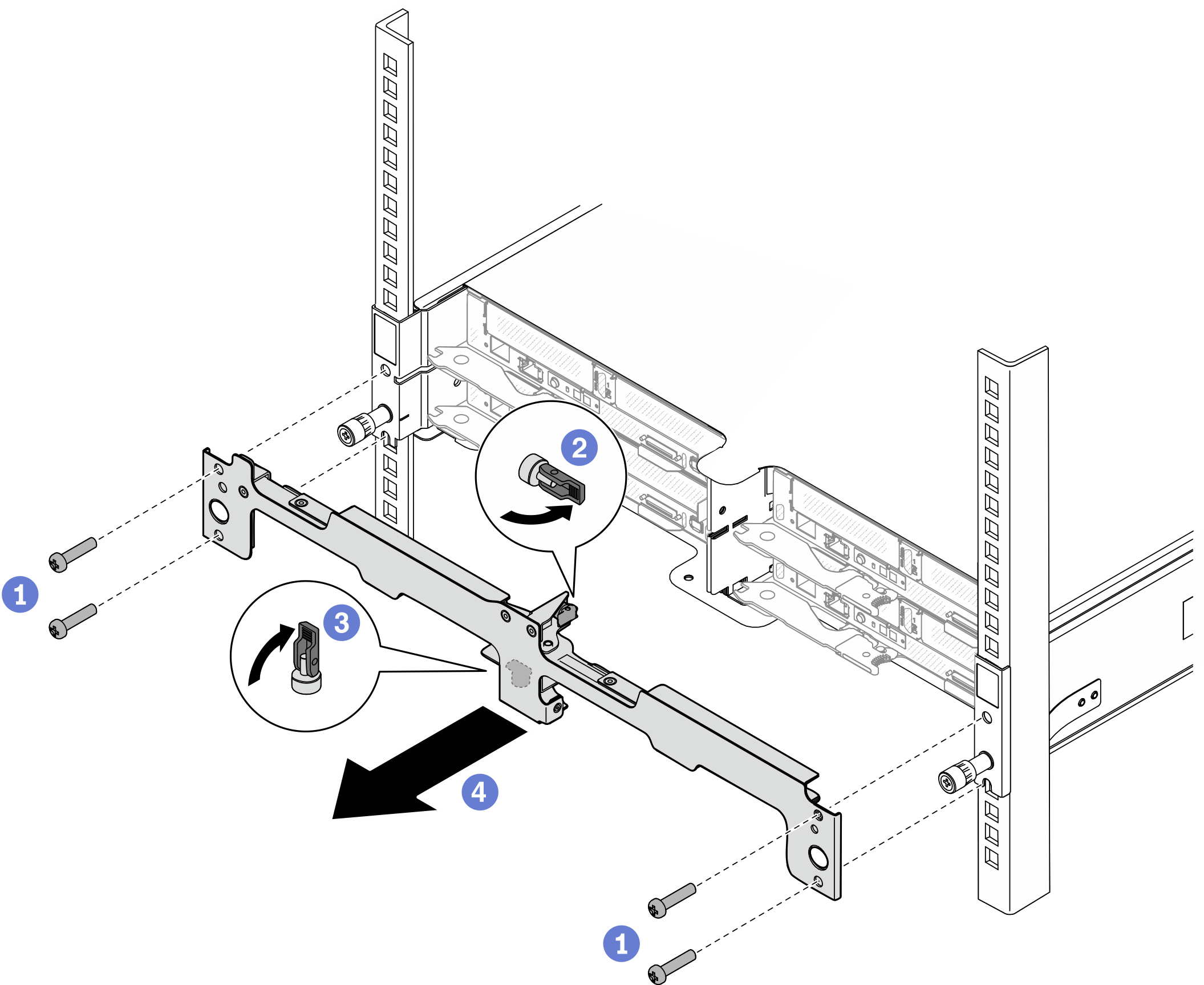

Figure 1. Front shipping bracket removal
Front shipping bracket removal
