Install the drip sensor assembly
Use this information to install the drip sensor assembly.
About this task
S002
CAUTION
The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
Attention
- Read the following sections to ensure that you work safely.
Procedure
Align the drip sensor assembly with the enclosure and slide it into place.
Figure 1. Drip sensor assembly installation
After you finish
Reinstall the EMC shield that you removed.
Figure 2. Lower left EMC shield installation

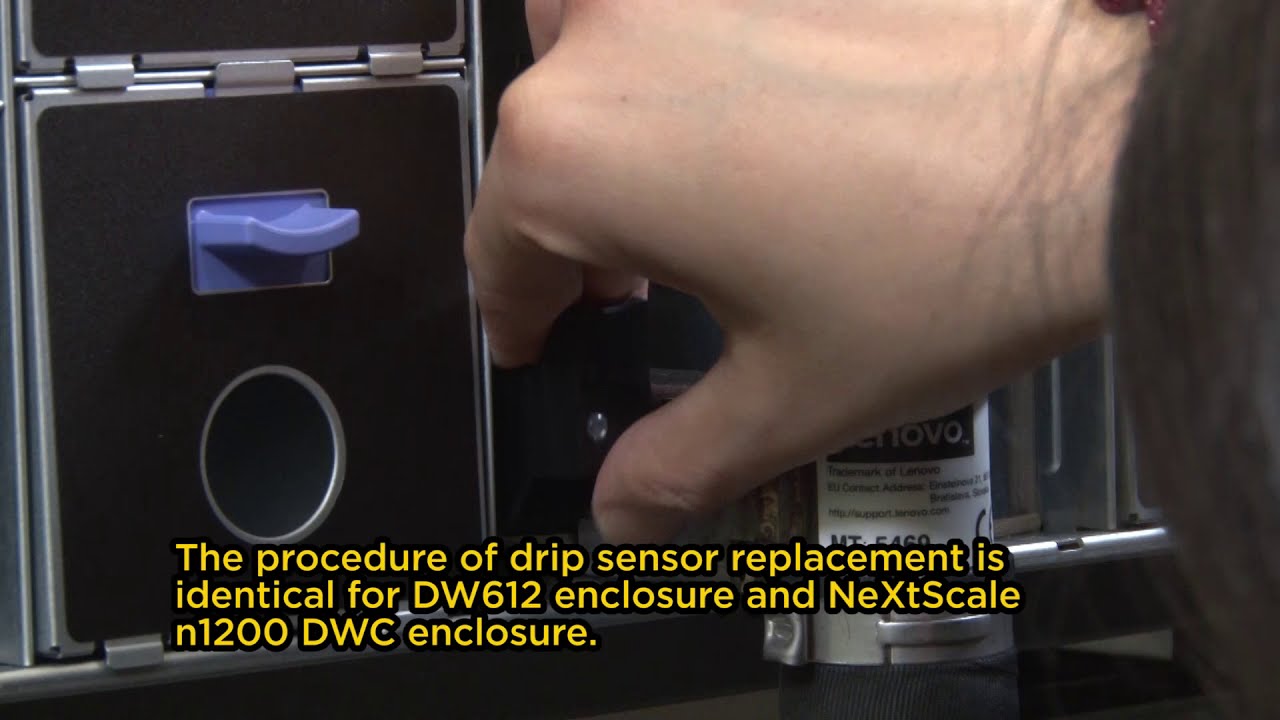

Demo video
