Install the air baffle

Follow instructions in this section to install the air baffle.

About this task

Attention

Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

Attention

For proper cooling and airflow, reinstall the air baffle before turning on the server. Operating the server with the air baffle removed might damage server components.

Procedure

Align the air baffle with guide pins on the enclosure; then, lower the air baffle down until it is firmly seated.

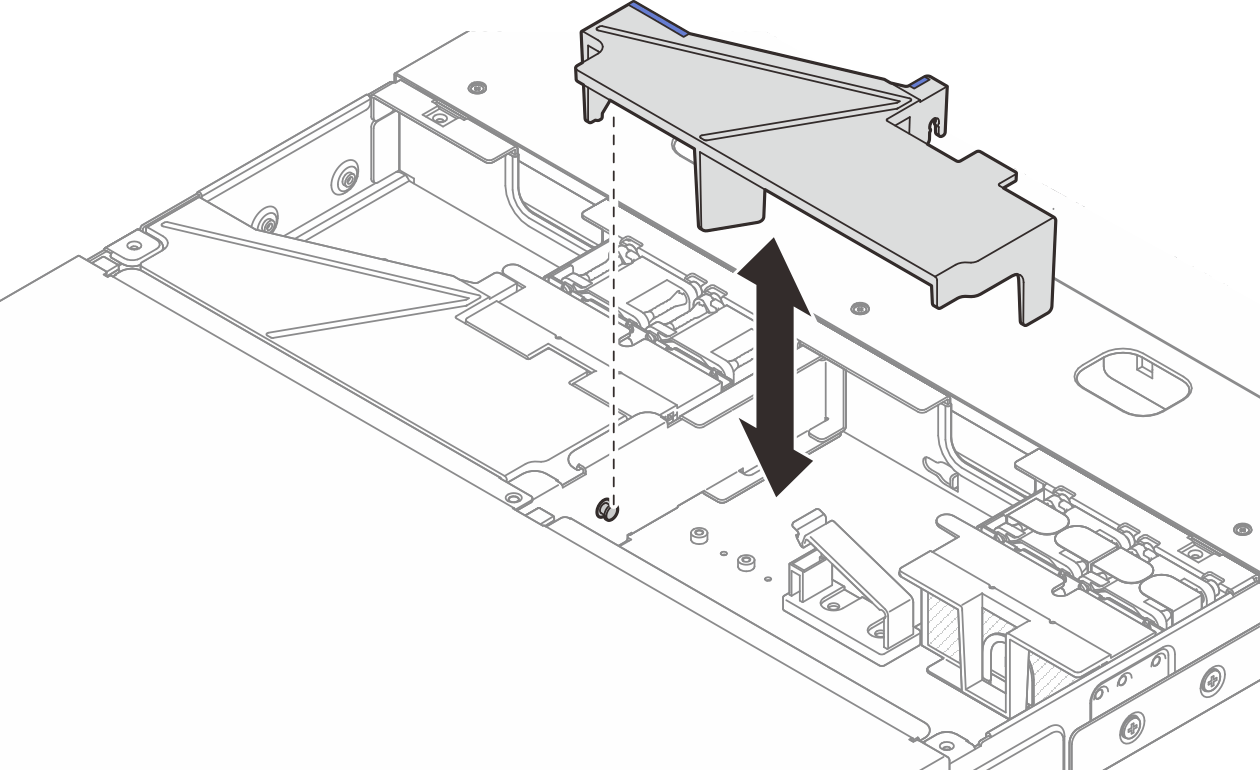

Figure 1. Installing the air baffle for 1U2N enclosure

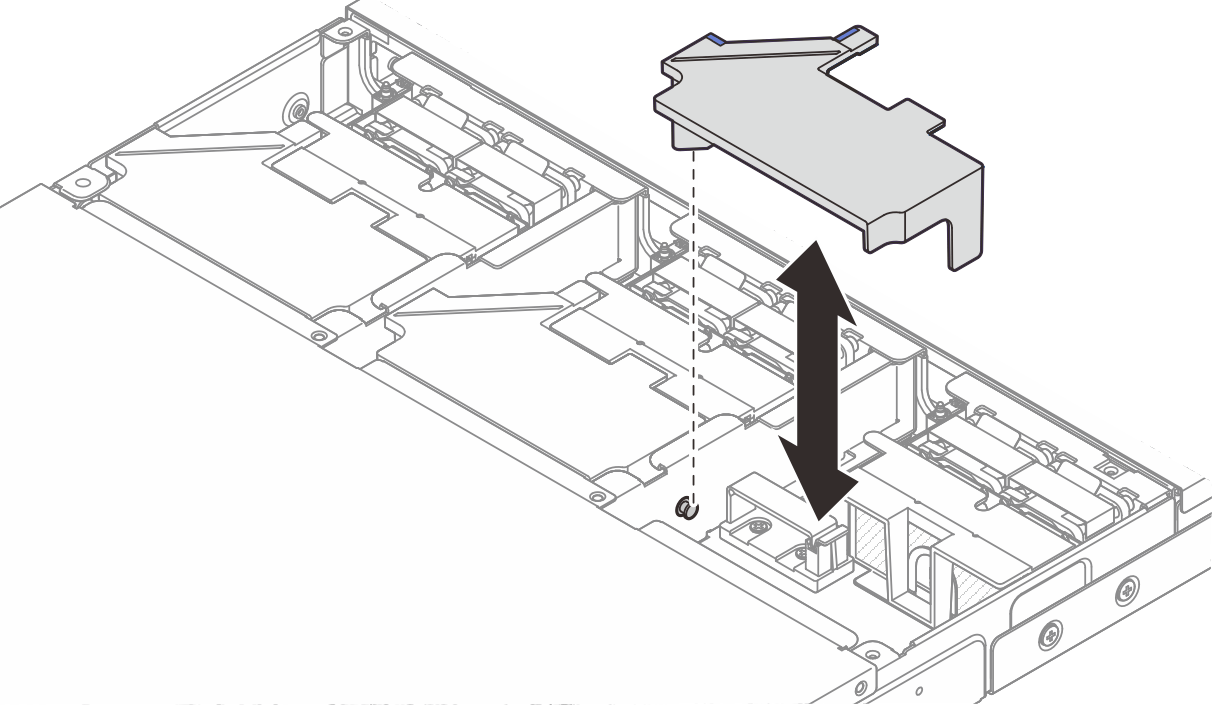

Figure 2. Installing the air baffle for 1U2N enclosure

After you finish

Install the middle top cover. See Install the middle top cover.
Complete the parts replacement. See Complete the parts replacement.
