Install the middle top cover
Follow instructions in this section to install the middle top cover.
About this task
Attention
Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
Ensure that all components have been reassembled correctly and that no tools or loose screws are left inside your server.
Make sure that all internal cables are correctly routed. See ThinkEdge SE100 Enclosure Internal Cable Routing Guide.
Procedure
Install the middle top cover.
Install the middle top cover of 1U2N enclosure
Place the middle top cover on the top of the enclosure with both sides aligned.

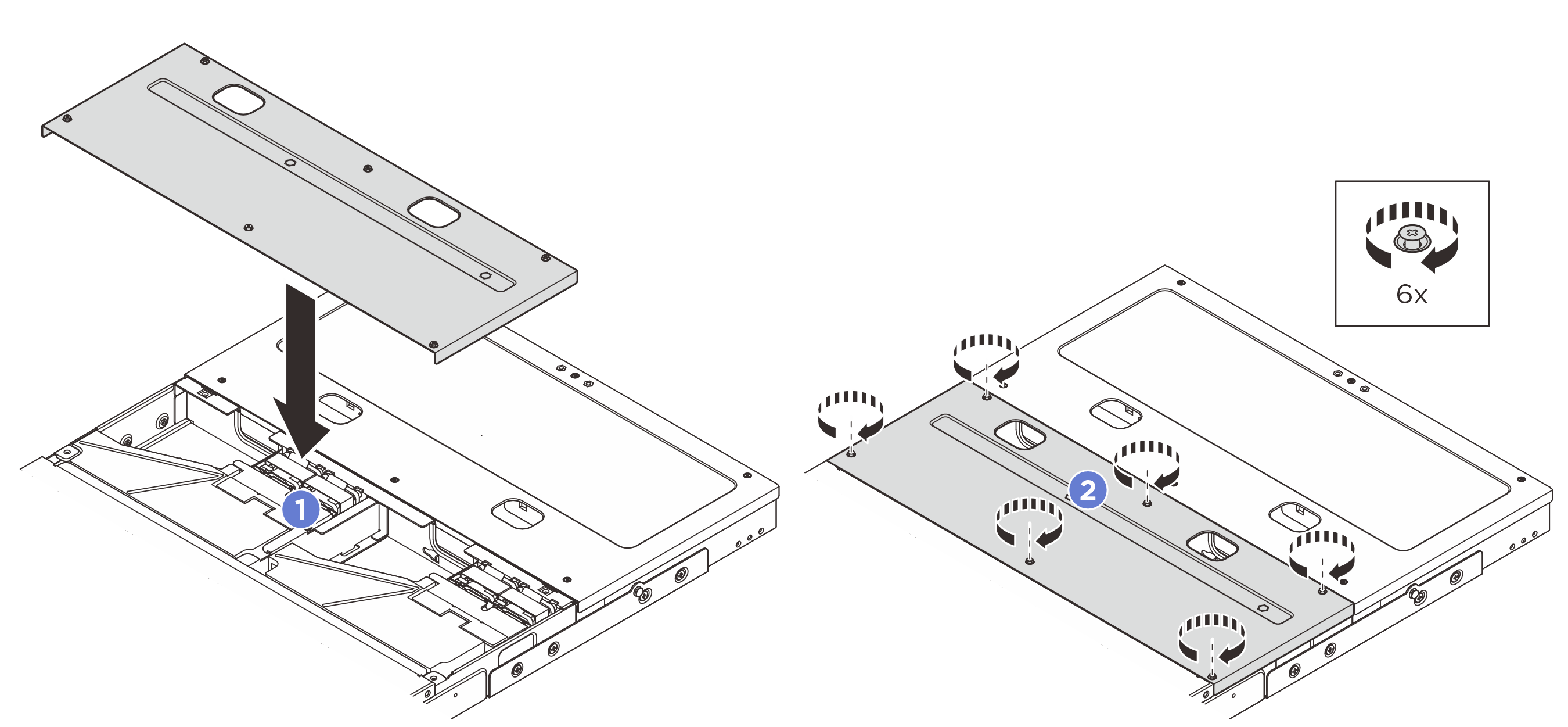

Tighten the six captive screws to secure the middle top cover.Figure 1. Installing the middle top cover of 1U2N enclosure
Install the middle top cover of 1U3N enclosure
- Place the middle top cover on the top of the enclosure with both sides aligned.

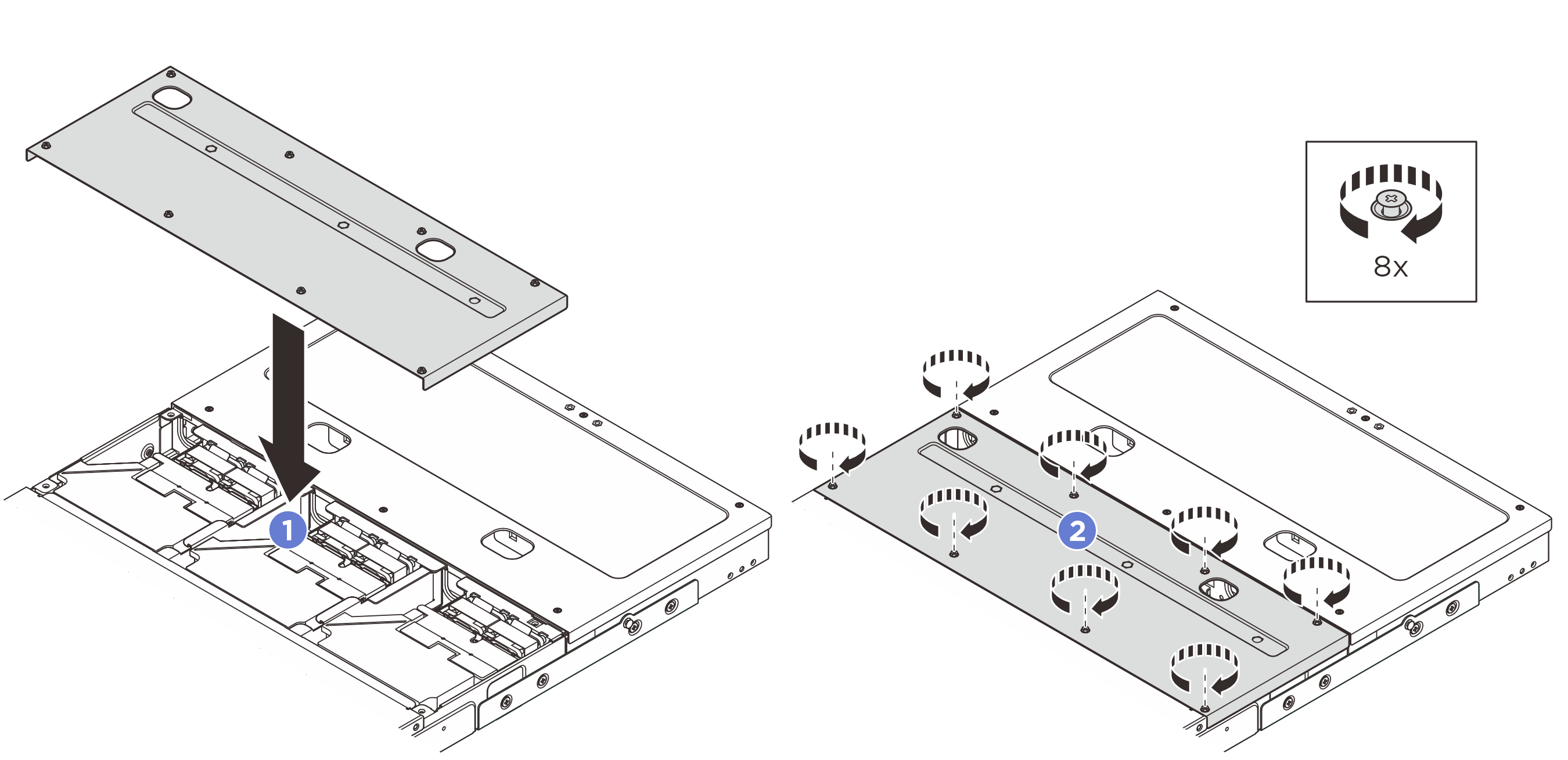

- Tighten the eight captive screws to secure the middle top cover.Figure 2. Installing the middle top cover of 1U3N enclosure
After you finish
- Complete the parts replacement. See Complete the parts replacement.
- Install the enclosure to the rack. See Install a node to the rack.
