Install the intrusion switch
Follow instructions in this section to install the intrusion switch.
About this task
Attention
- Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
- Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
Procedure
Push the intrusion switch into the intrusion switch bracket. Make sure the intrusion switch is fully seated in the bracket.

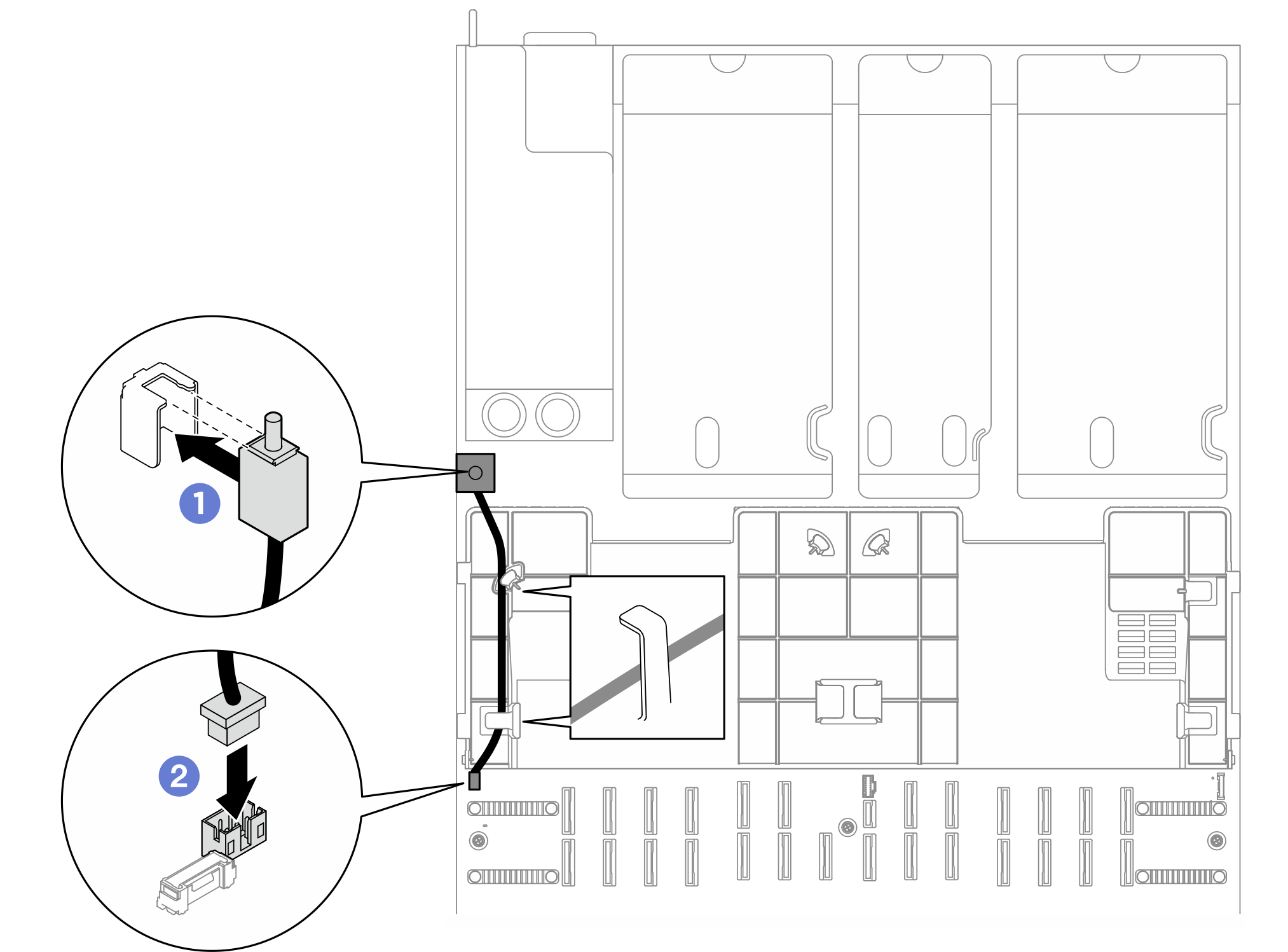

Connect the intrusion switch cable to the system board assembly.Figure 1. Intrusion switch installation
After you finish
- Reinstall the rear top cover. See Install the rear top cover.
- Reinstall the front top cover. See Install the front top cover.
- Complete the parts replacement. See Complete the parts replacement.
Demo video
