Parts list
Identify each of the components that is available for your server with the parts list.
Go to Lenovo Data Center Support and navigate to the support page for your server.
Click .
Enter the serial number to view a listing of parts for your server.
It is highly recommended that you check the power summary data for your server using Lenovo Capacity Planner before purchasing any new parts.
T1: Tier 1 customer replaceable unit (CRU). Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request with no service agreement, you will be charged for the installation.
T2: Tier 2 customer replaceable unit (CRU). You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
F: Field replaceable unit (FRU). FRUs must be installed only by trained service technicians.
C: Consumable and Structural parts. Purchase and replacement of consumable and structural parts (components, such as a filler or bezel) is your responsibility. If Lenovo acquires or installs a structural component at your request, you will be charged for the service.

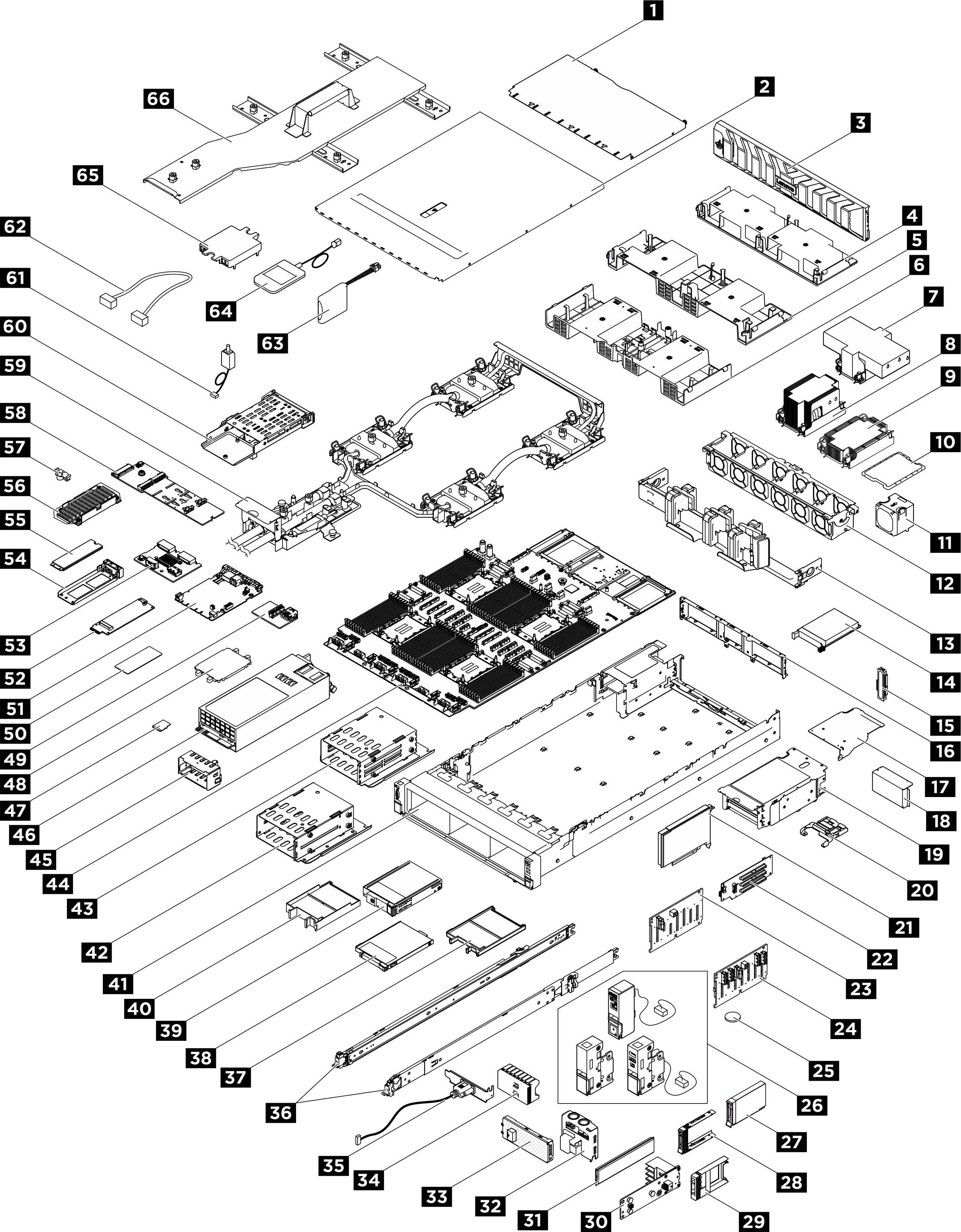

| Index | Description | Type | Index | Description | Type |
|---|---|---|---|---|---|
For more information about ordering parts:
| |||||
| 1 | Rear top cover | T1 | 2 | Front top cover | T1 |
| 3 | Security bezel | T1 | 4 | Air baffle (rear, 2U performance PHM) | T1 |
| 5 | Air baffle (rear, 2U standard PHM) | T1 | 6 | Air baffle (front) | T1 |
| 7 | 2U performance heat sink and processor carrier | F | 8 | 2U standard heat sink and processor carrier | F |
| 9 | 1U standard heat sink and processor carrier | F | 10 | Processor | F |
| 11 | Fan | T1 | 12 | Fan cage | T1 |
| 13 | Cable management arm | T2 | 14 | OCP module | T1 |
| 15 | OCP module filler | C | 16 | Rear wall | F |
| 17 | PCIe riser extender | T2 | 18 | PCIe riser cage filler | C |
| 19 | PCIe riser cage | T2 | 20 | PCIe retainer | T1 |
| 21 | PCIe adapter | T1 | 22 | PCIe riser card | T2 |
| 23 | 8 x 2.5" SAS/SATA front backplane | T2 | 24 | 8 x 2.5" AnyBay front backplane | T2 |
| 25 | CMOS battery (CR2032) | C | 26 | Rack latches | T1 |
| 27 | 2.5-inch hot-swap drive | T1 | 28 | 2.5-inch drive tray | T1 |
| 29 | 2.5-inch drive filler (1-bay) | C | 30 | E3.S backplane | T2 |
| 31 | Memory module | T1/F 1 | 32 | Power distribution board | T2 |
| 33 | E3.S bezel | T1 | 34 | 2.5-inch drive filler (8-bay) | C |
| 35 | Serial port assembly | T1 | 36 | Slide rail kit | T2 |
| 37 | E3.S 1T drive filler | C | 38 | E3.S 1T drive | T1 |
| 39 | E3.S 2T CMM | T1 | 40 | E3.S 2T CMM filler | C |
| 41 | Chassis | F | 42 | E3.S 2T CMM cage | C |
| 43 | E3.S 1T drive cage | C | 44 | Processor board | F |
| 45 | Power supply filler | C | 46 | Power supply unit | T1 |
| 47 | MicroSD card | F | 48 | Processor socket cover | C |
| 49 | USB I/O board | T1 | 50 | M.2 thermal pad | F |
| 51 | System I/O board (DC-SCM) | F | 52 | M.2 interposer | T2 |
| 53 | Rear M.2 boot adapter | T2 | 54 | M.2 drive tray | C |
| 55 | M.2 drive | T1 | 56 | M.2 heat sink | F |
| 57 | M.2 retainer | T2 | 58 | M.2 boot adapter | T1 |
| 59 | Processor Neptune® Core Module (NeptCore) | F | 60 | Rear M.2 drive cage | C |
| 61 | Intrusion switch | T1 | 62 | Cable | T1 |
| 63 | Flash power module | T1 | 64 | External diagnostics handset | T1 |
| 65 | Cold plate cover | C | 66 | Water loop shipping bracket | F |
