Install the MicroSD card

Follow instructions in this section to install the MicroSD card. This procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

  1. Place the MicroSD card into the socket.
  2. Close the socket lid.
  3. Slide the socket lid to the lock position.

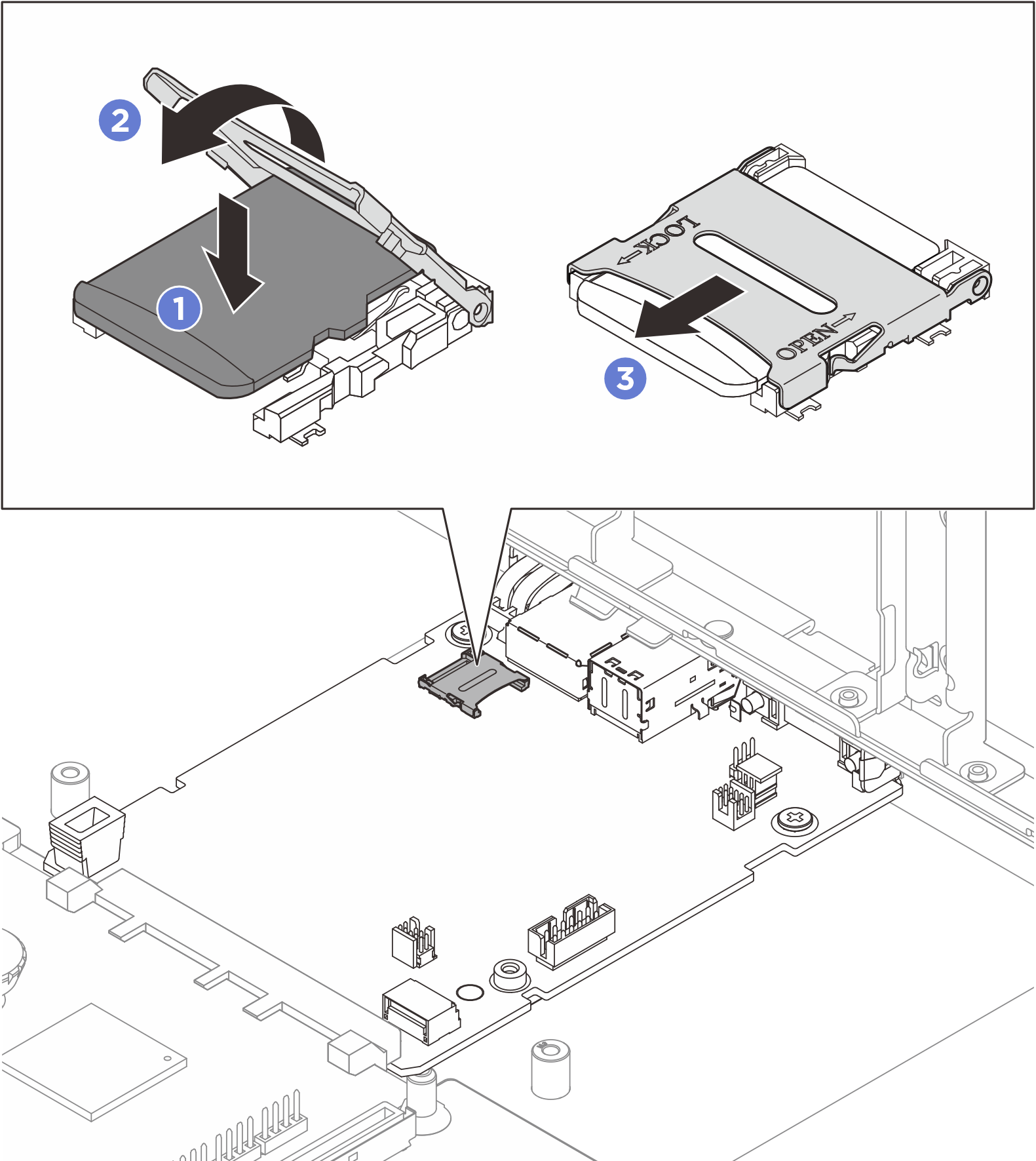

    Figure 1. MicroSD card installation
    MicroSD card installation

After you finish

  1. Reinstall the PCIe risers. See Install a PCIe riser.
  2. Reinstall the rear top cover. See Install the rear top cover.
  3. Reinstall the front top cover. See Install the front top cover.
  4. Complete the parts replacement. See Complete the parts replacement.

Demo video

Watch the procedure on YouTube
