Install the security bezel

Follow instructions in this section to install the security bezel.

Procedure

1. If the key is held inside the security bezel, remove it out of the security bezel.

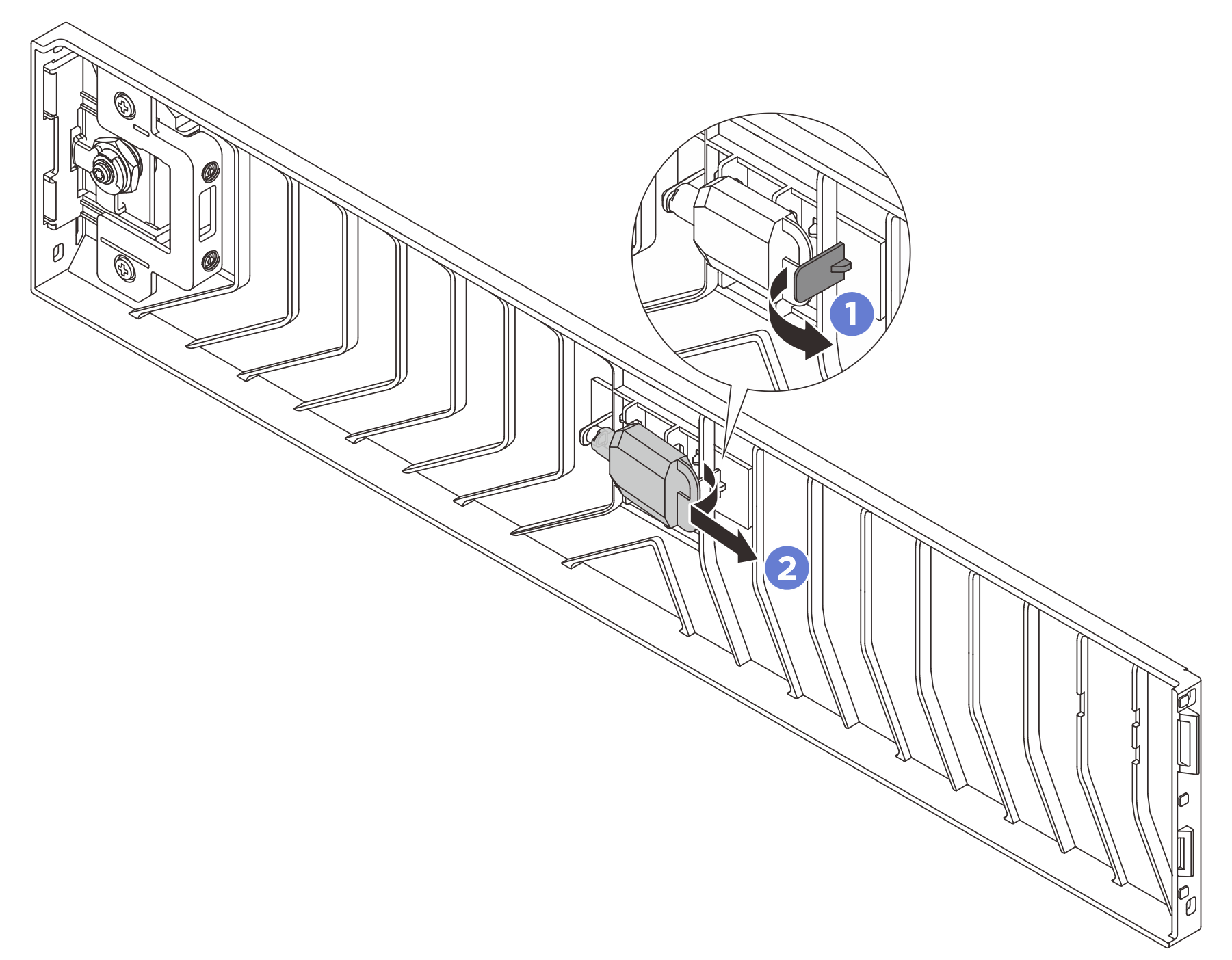

   Figure 1. Key removal


   1. Press the latch to release the key.
   2. Remove the key from the retaining clip in the shown direction.
2. Install the security bezel to the chassis.

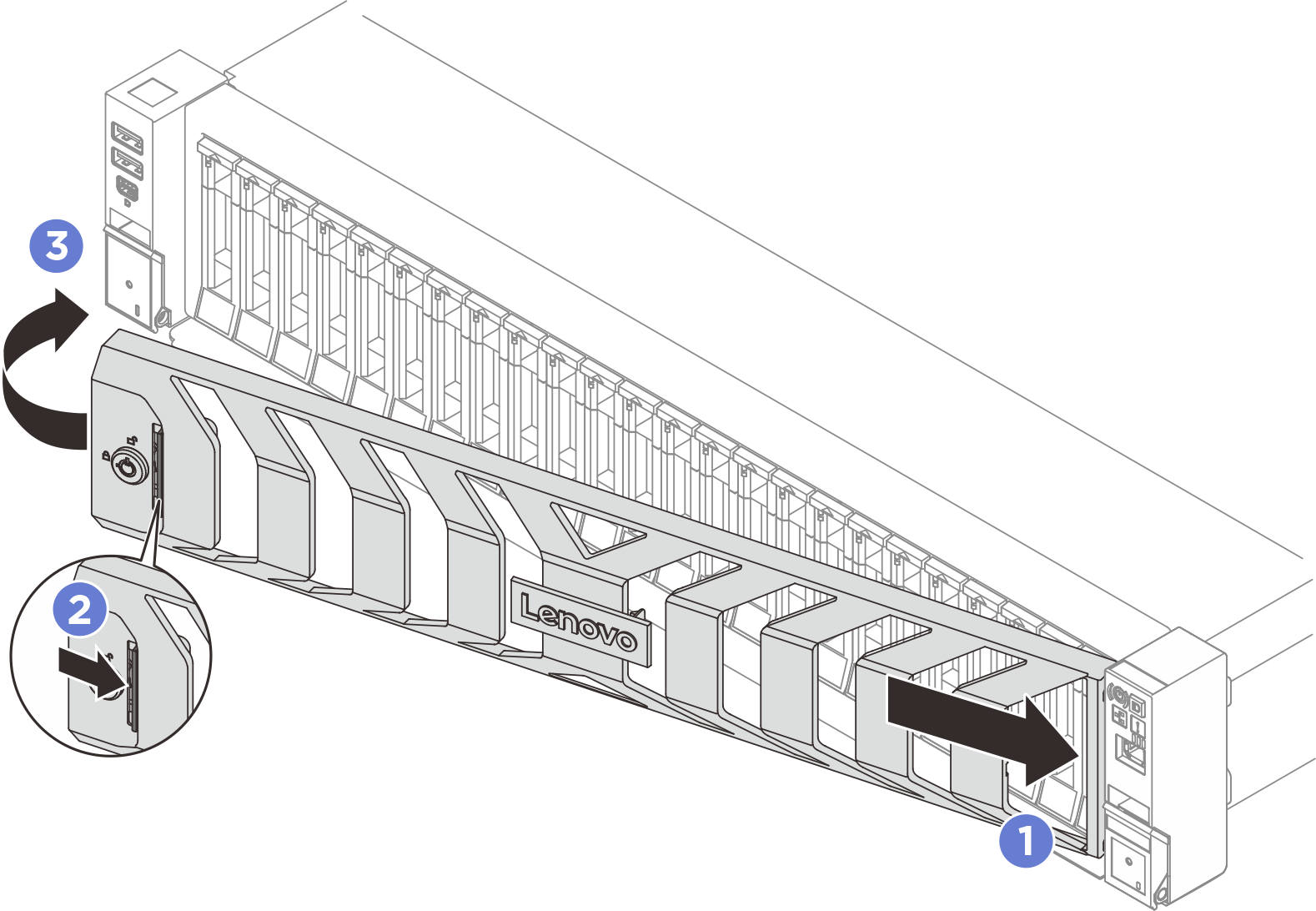

   Figure 2. Security bezel installation


   1. Insert the tab on the security bezel into the slot on the right rack latch.
   2. Press and hold the blue release latch.
   3. Rotate the security bezel inward until the left side clicks into place.
3. Use the key to lock the security bezel to the closed position.

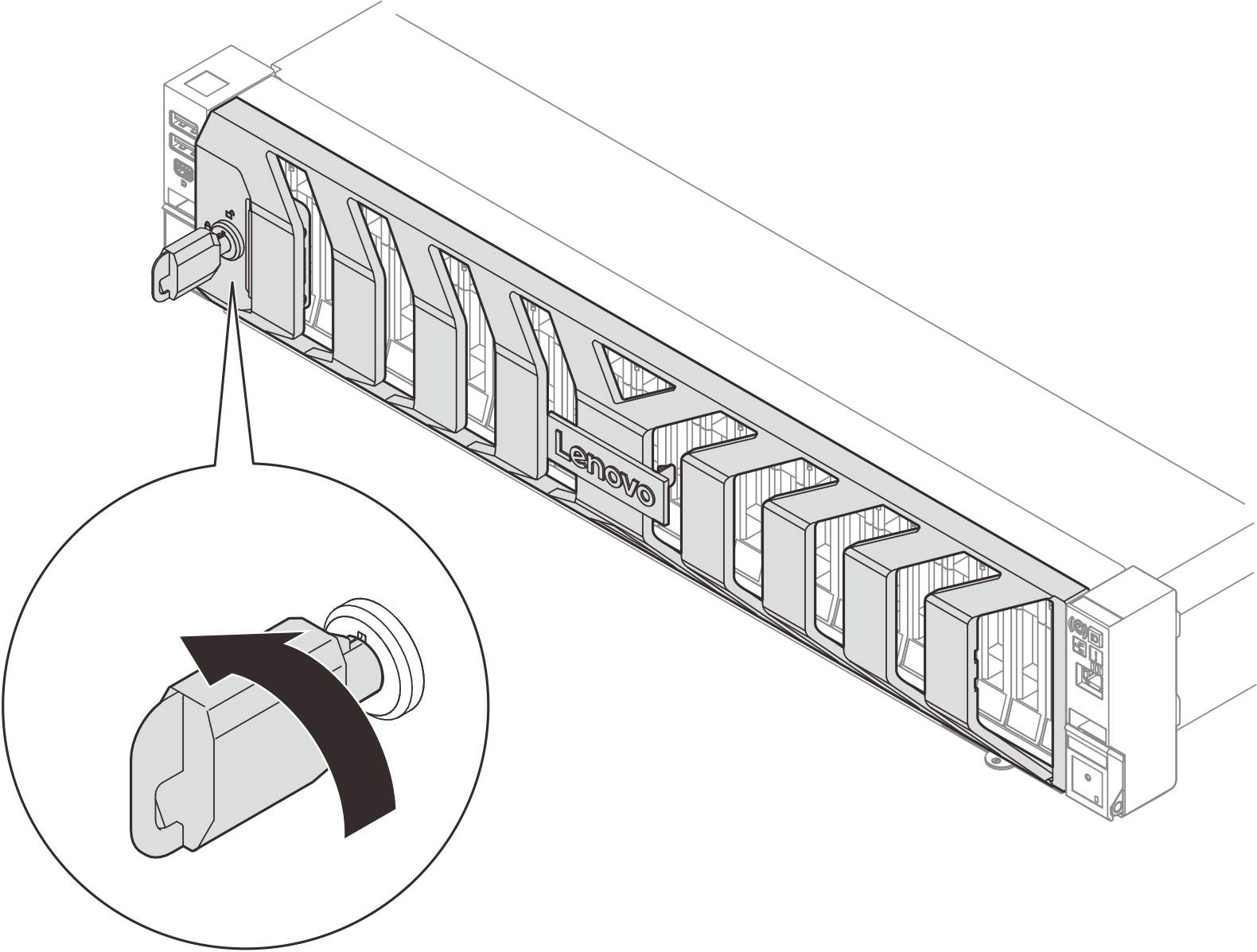

   Figure 3. Locking the security bezel
