Tray top view

This section contains information on the top view of the tray.

Tray top view​

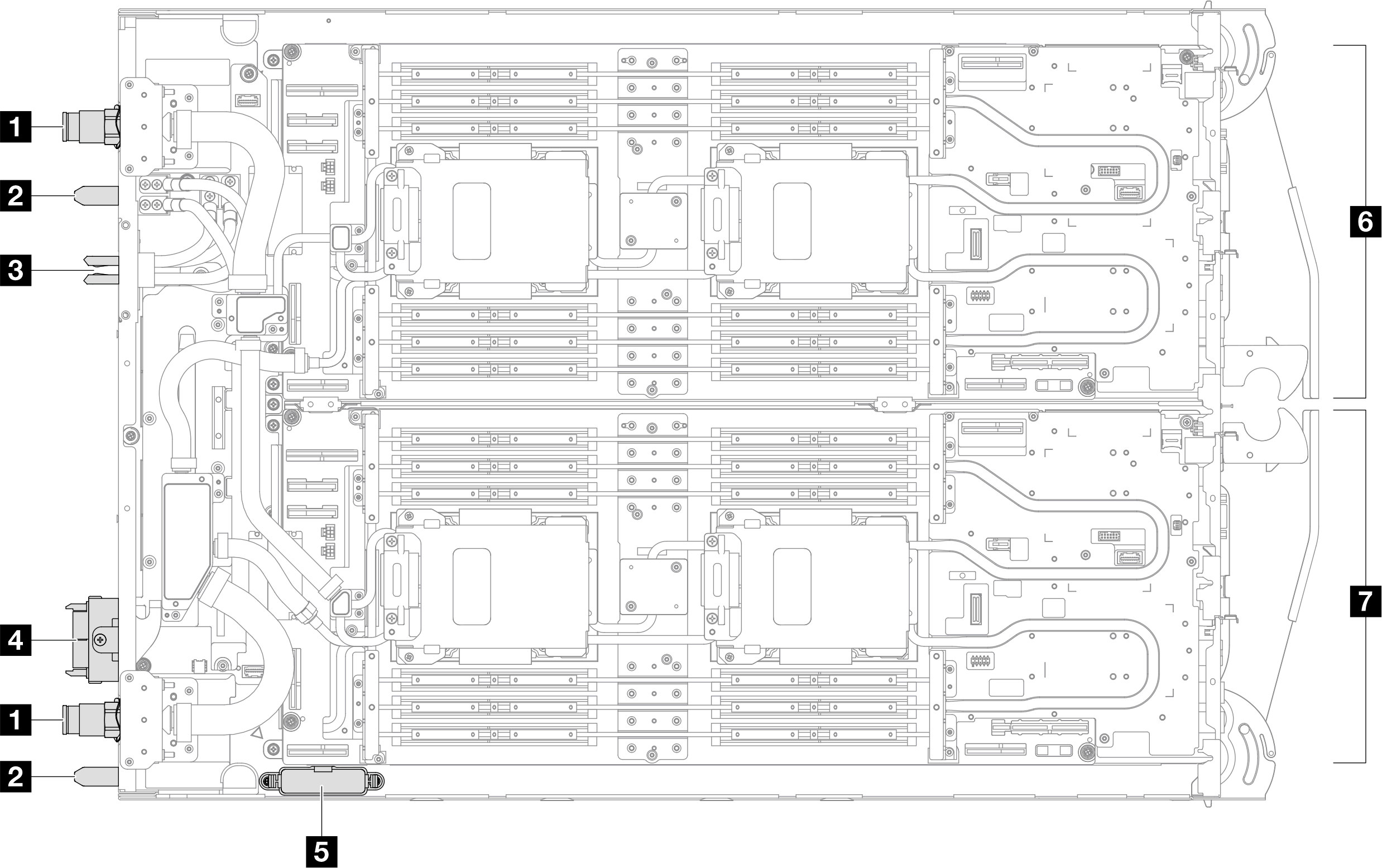

Figure 1. Tray top view

Table 1. Components on tray top view

1 Water loop quick connect	5 Leakage sensor controller
2 Guide pin	6 Node B
3 Bus bar connector	7 Node A
4 System management interface
