Remove the rear dust filter

Follow instructions in this section to remove the rear dust filter.

About this task

Attention

Procedure

  1. Make preparation for this task.
    1. Remove the expansion kit top cover. See Remove the expansion kit top cover.
  2. Slide the dust filter holder out of the expansion kit.

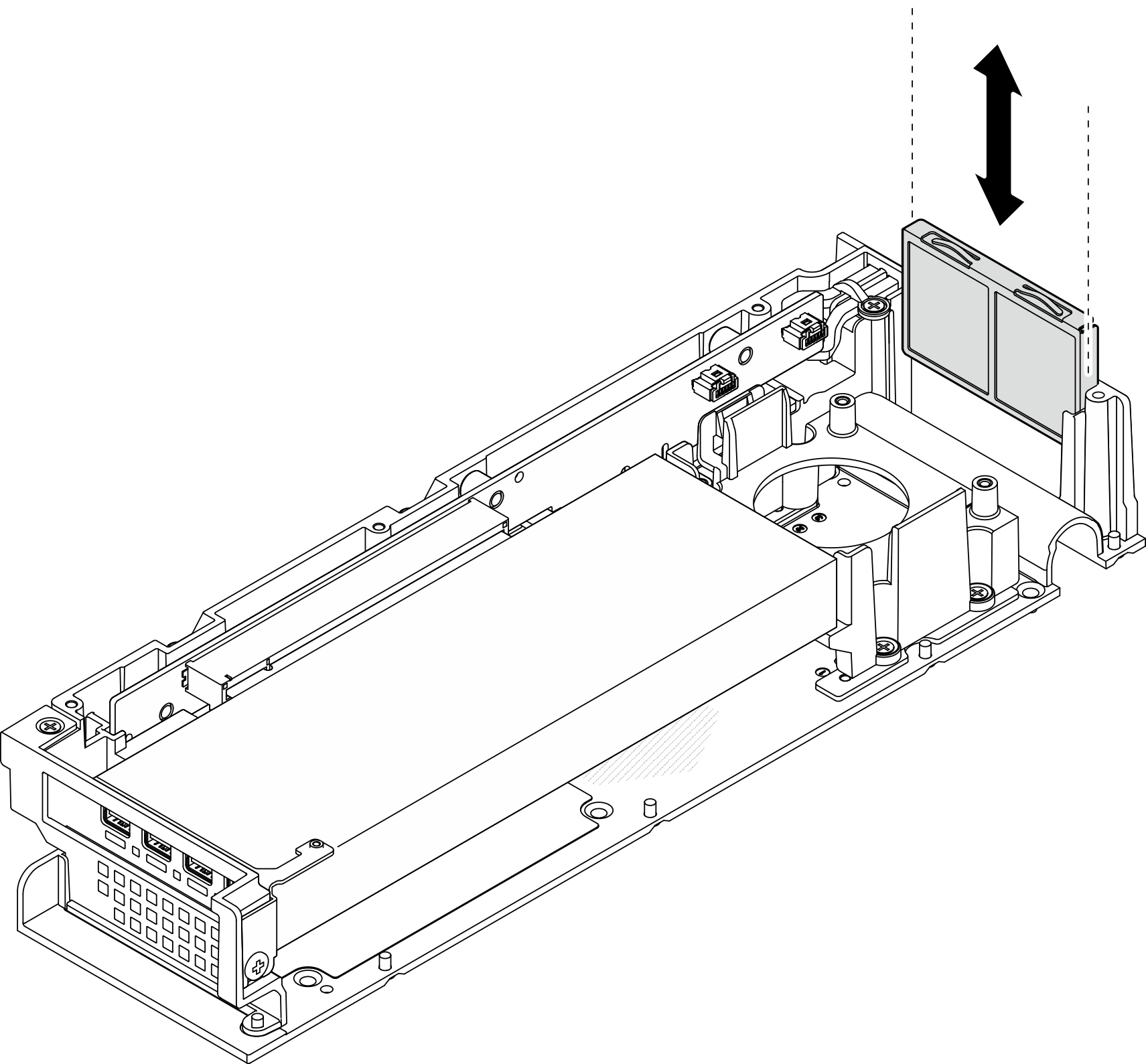

    Figure 1. Removing the dust filter holder

  3. Remove the dust filter from the dust filter holder.

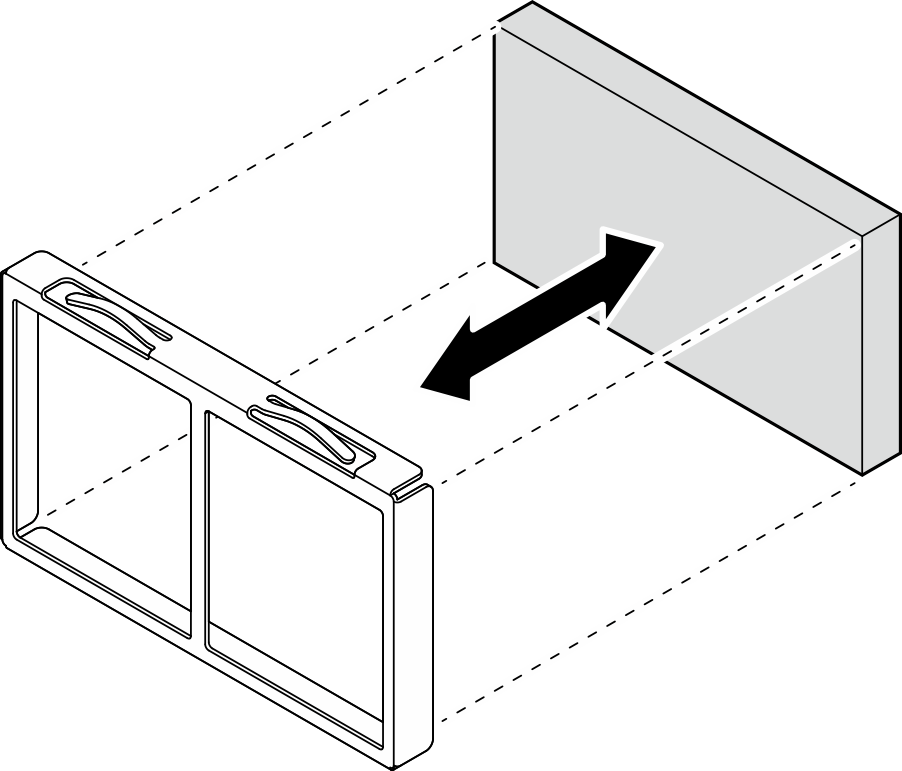

    Figure 2. Removing the dust filter

After you finish

  • Install a replacement unit. See Install the rear dust filter.

  • If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.

Demo video

Watch the procedure on YouTube
