Rear view

This section contains information on the rear view.

Note
The illustrations in this section show the location of certain parts. Some parts may not be supported at the same time within certain configuration(s).

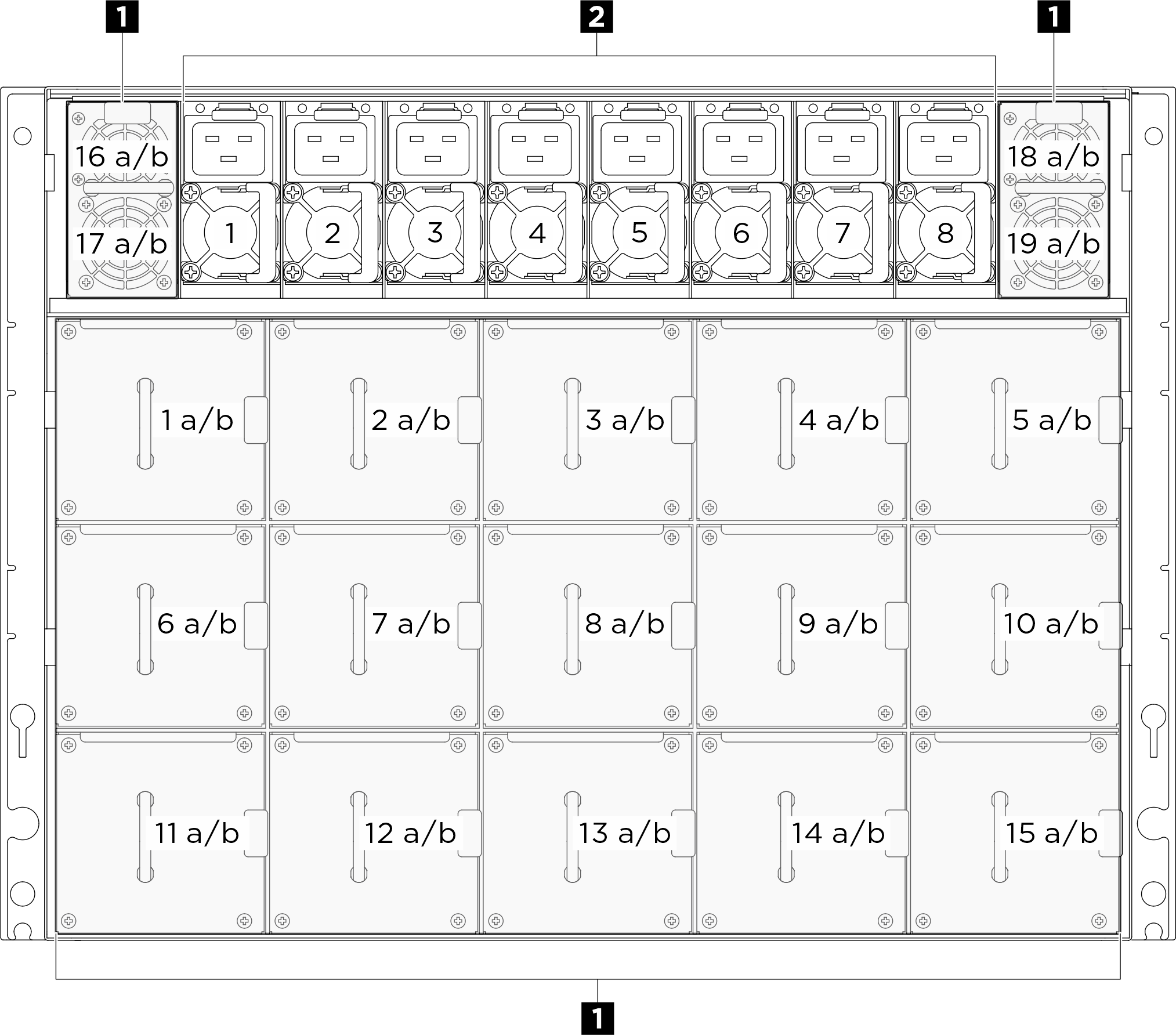

Figure 1. Rear view
Rear view
Table 1. Components on the rear view
1 Rear fans2 Power supply units

1 Rear fans​

Install rear fans in this space. See Install a hot-swap fan for more information.

2 Power supply units​

Install power supply units to these bays, connect them to power cords. Make sure the power cords are connected properly. Following are the power supplies supported by this system:

  • CRPS Premium (CFFv5) 3200-watt Titanium, input power 200-240V

For more information on the power supply LEDs, see Power supply LEDs.
