Parts list

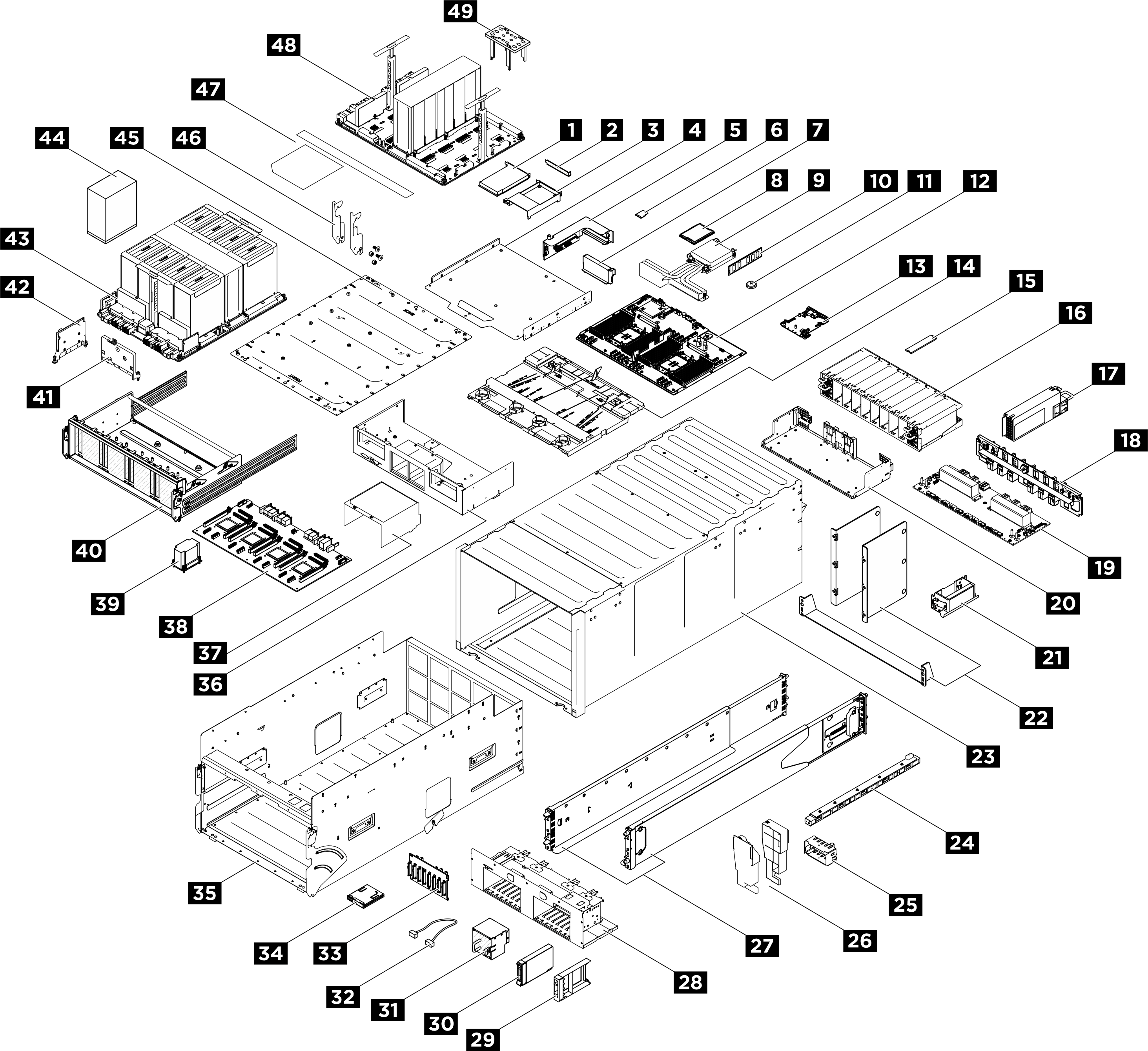

Identify each of the components that is available for your server with the parts list.
Go to Lenovo Data Center Support and navigate to the support page for your server.
Click .
Enter the serial number to view a listing of parts for your server.
It is highly recommended that you check the power summary data for your server using Lenovo Capacity Planner before purchasing any new parts.
T1: Tier 1 customer replaceable unit (CRU). Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request with no service agreement, you will be charged for the installation.
T2: Tier 2 customer replaceable unit (CRU). You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
F: Field replaceable unit (FRU). FRUs must be installed only by trained service technicians.
C: Consumable and Structural parts. Purchase and replacement of consumable and structural parts (components, such as a filler or bezel) is your responsibility. If Lenovo acquires or installs a structural component at your request, you will be charged for the service.
| Index | Description | Type |
|---|---|---|
For more information about ordering parts:
| ||
| 1 | PCIe adapter | F |
| 2 | PCIe filler (single-slot) | T1 |
| 3 | PCIe riser air baffle | F |
| 4 | Compute tray | F |
| 5 | PCIe riser | T2 |
| 6 | MicroSD card | F |
| 7 | PCIe riser filler | C |
| 8 | Processor | F |
| 9 | Processor heat sink | F |
| 10 | Memory module | T1 |
| 11 | CMOS battery (CR2032) | C |
| 12 | System board | F |
| 13 | System I/O board | T2 |
| 14 | Cable holder frame and baffle assembly | F |
| 15 | M.2 drive | F |
| 16 | PSU cage | F |
| 17 | Power supply unit | T1 |
| 18 | PSU interposer | F |
| 19 | Power distribution board | F |
| 20 | Power distribution board tray | F |
| 21 | Chassis lift handle | F |
| 22 | Chassis support brackets | F |
| 23 | Chassis | F |
| 24 | Fan control board | F |
| 25 | Power supply unit filler | C |
| 26 | GPU air duct | F |
| 27 | Slide rail kit | C |
| 28 | Drive cage | F |
| 29 | 2.5-inch drive filler (1-bay) | C |
| 30 | 2.5-inch hot-swap drive | T1 |
| 31 | Fan | T1 |
| 32 | External cable | T1 |
| Internal cable | F | |
| 33 | 2.5-inch drive backplane | F |
| 34 | Integrated diagnostics panel | F |
| 35 | System shuttle | F |
| 36 | FIO/PCI cage | F |
| 37 | Air duct | F |
| 38 | PCIe switch board | F |
| 39 | PCIe switch board heat sink | F |
| 40 | PCIe switch shuttle | F |
| 41 | HMC card | F |
| 42 | CX-7 adapter card | F |
| 43 | GPU complex | F |
| 44 | GPU and heat sink module | F |
| 45 | GPU complex adapter plate | F |
| 46 | PCIe switch shuttle release levers | T2 |
| 47 | Label kit | F |
| 48 | GPU baseboard | F |
| 49 | B200 jig | F |
