Remove the cable holder frame and baffle assembly

Follow instructions in this section to remove the cable holder frame and baffle assembly. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
  • Two people and one lifting device on site that can support up to 400 lb (181 kg) are required to perform this procedure. If you do not already have a lifting device available, Lenovo offers the Genie Lift GL-8 material lift that can be purchased at Data Center Solution Configurator. Make sure to include the Foot-release brake and the Load Platform when ordering the Genie Lift GL-8 material lift.

Procedure

  1. Make preparation for this task.
    1. Remove all the power supply units. See Remove a hot-swap power supply unit.
    2. Remove all the front fans. See Remove a front hot-swap fan.
    3. Remove all the 2.5-inch hot-swap drives and the drive bay fillers (if any) from the drive bays. See Remove a 2.5-inch hot-swap drive.
    4. Pull the 8U GPU shuttle out of the chassis, and place it onto the lift platform. See Remove the 8U GPU shuttle.
    5. Remove the cable cover. See Remove the cable cover.
    6. Remove the I/O cover. See Remove the I/O cover.
    7. Remove the front fan cage. See Remove the front fan cage.
    8. Remove the integrated diagnostics panel. See Remove the integrated diagnostics panel.
    9. Remove the front PCIe switch cable harness. See Remove the front PCIe switch cable harness.
    10. Remove the PCIe switch tray. See Remove the PCIe switch tray.
  2. Remove all the cables from the cable holder frame and baffle assembly.
    1. Press the blue latch.
    2. Slide the blue latch to disengage the cable from the assembly.
    3. Slightly lift the cable and remove it from the assembly.

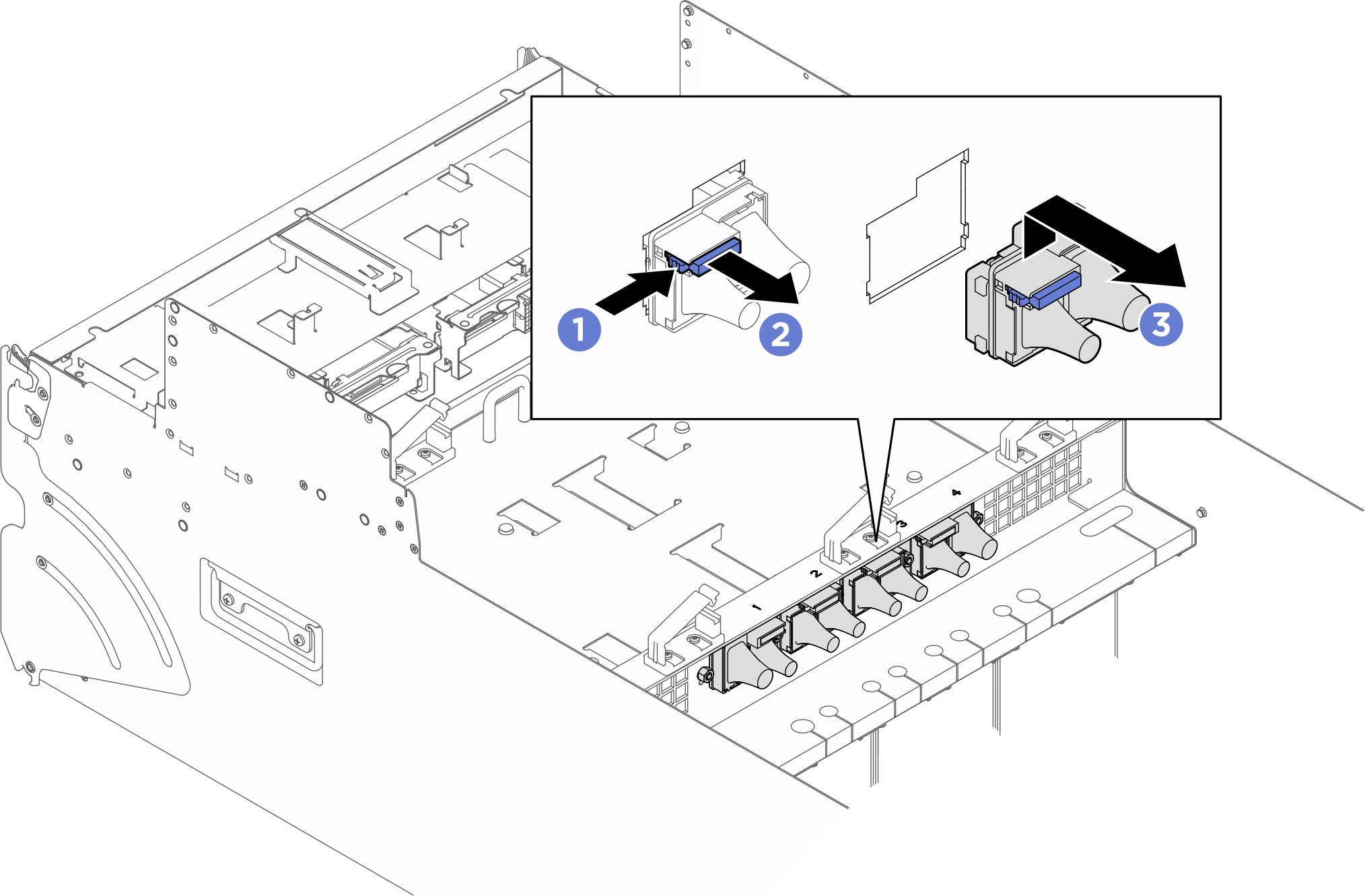

      Figure 1. Cable removal
      Cable removal
    4. Repeat to remove other three cables.
  3. Remove the cable holder frame and baffle assembly.
    1. Unfasten the eight screws marked with J on the assembly and both sides of the 8U GPU shuttle.
    2. Lift the assembly out of the 8U GPU shuttle.

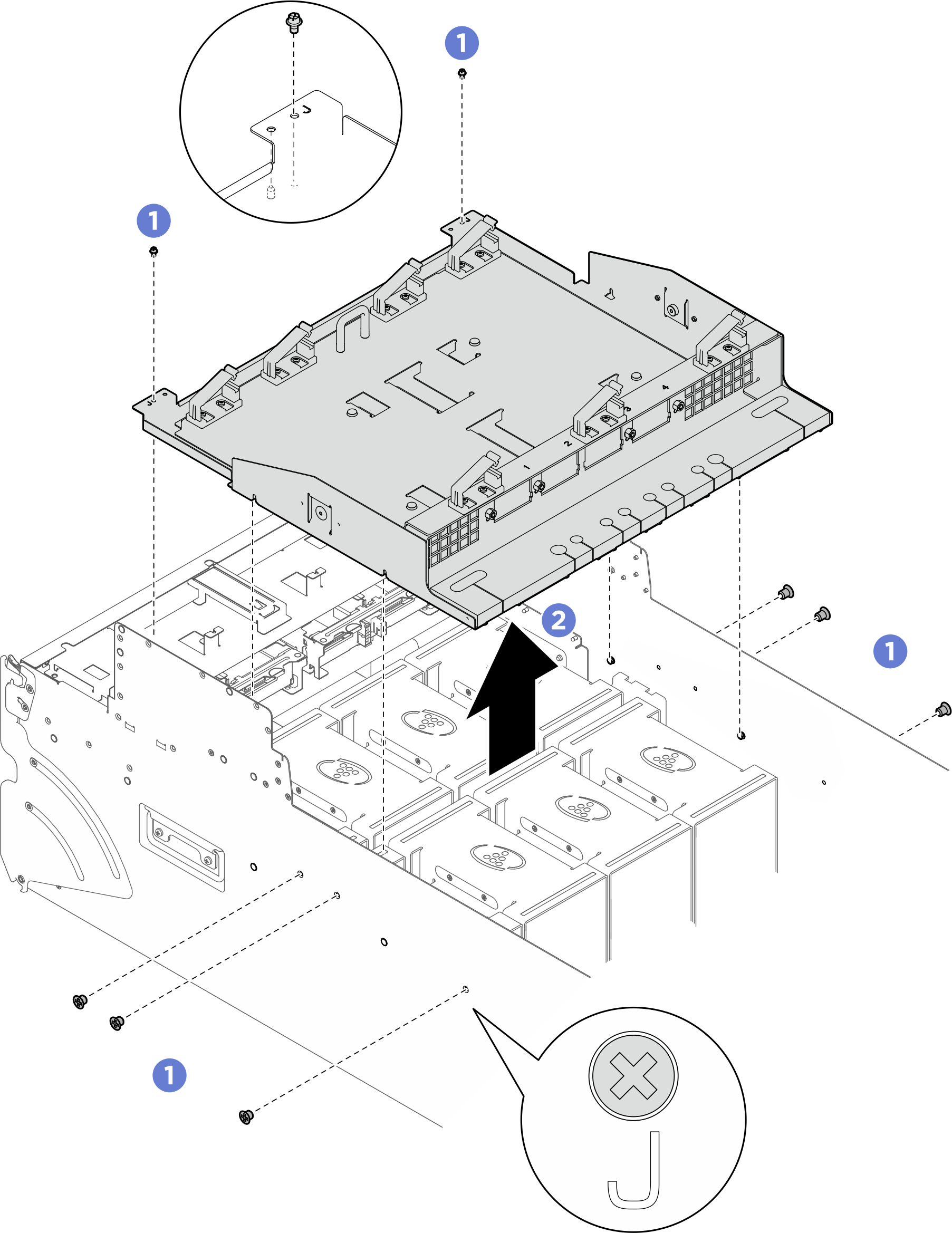

    Figure 2. Cable holder frame and baffle assembly removal
    Cable holder frame and baffle assembly removal

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
