Rear system LEDs

This topic provides information on system LEDs on the rear of the server.

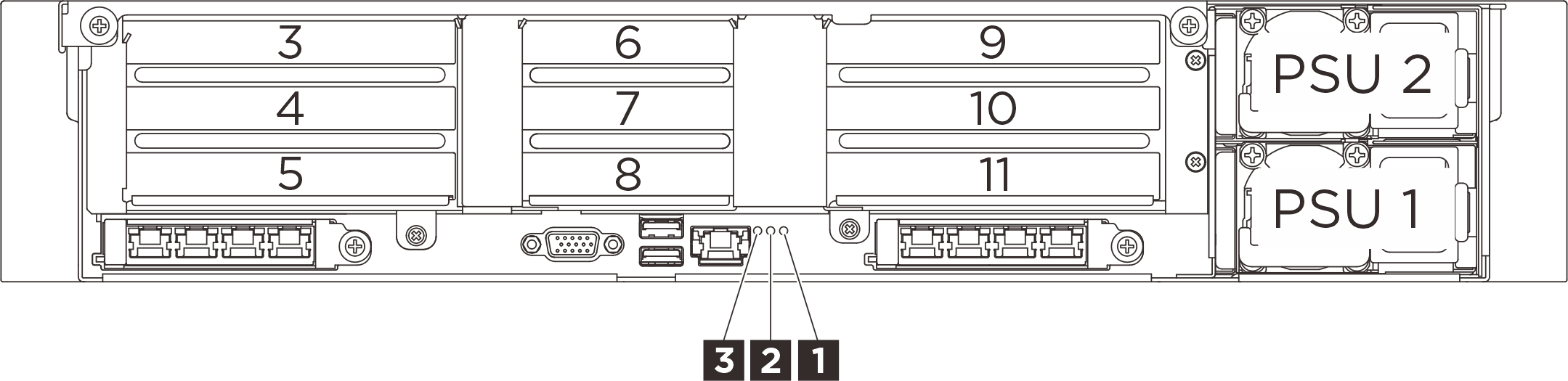

Figure 1. Rear system LEDs

Table 1. System LEDs on the rear view

LED	Action
1 System ID LED (blue)	See System I/O board LEDs for more information.
2 XCC heartbeat LED (green)
3 SCM FPGA heartbeat LED (green)
