Drive LEDs

This topic provides information on the drive LEDs.

2.5-inch drive LEDs​

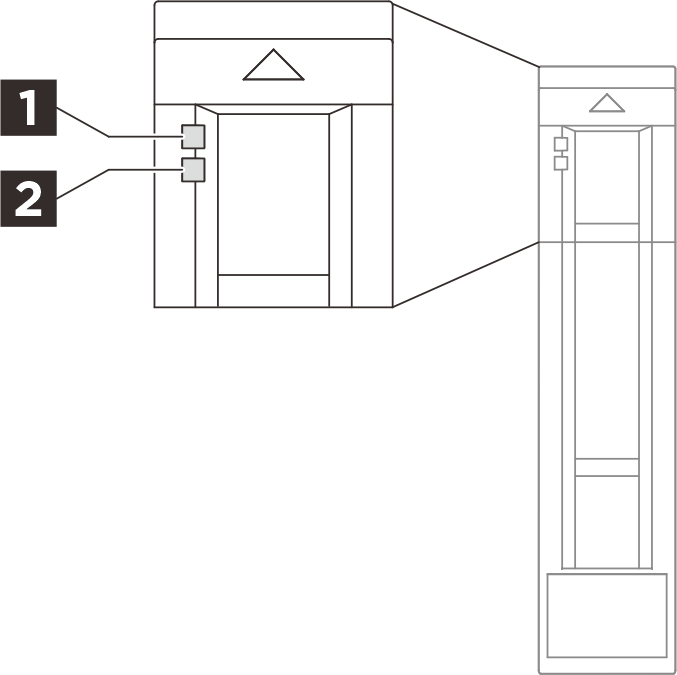

Figure 1. 2.5-inch drive LEDs
2.5-inch drive LEDs
Table 1. 2.5-inch drive LEDs
LEDDescription
1 Drive activity LED (green)

Each hot-swap drive comes with an activity LED. When this LED is flashing, it indicates that the drive is in use.

2 Drive status LED (yellow)
The drive status LED indicates the following status:
  • The LED is lit: the drive has failed.
  • The LED is flashing slowly (once per second): the drive is being rebuilt.
  • The LED is flashing rapidly (three times per second): the drive is being identified.

E3.S 1T drive LEDs​

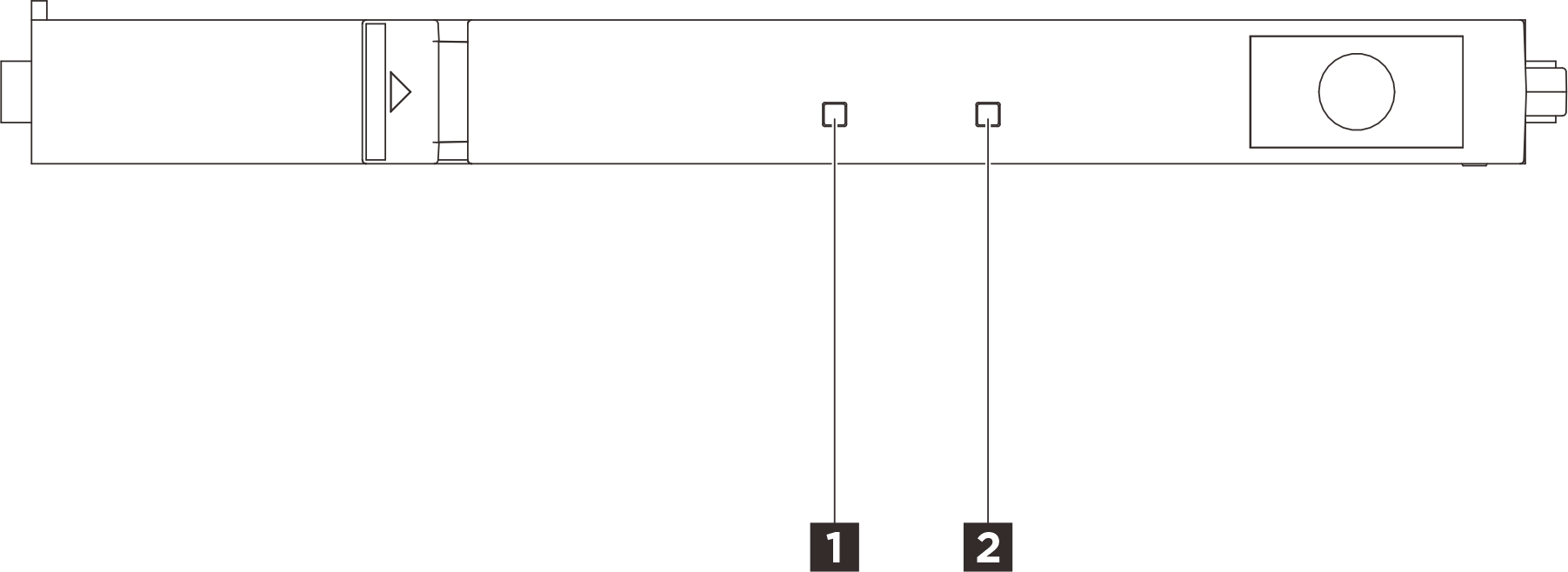

Figure 2. E3.S 1T drive LEDs
E3.S 1T drive LEDs
Table 2. E3.S 1T drive LEDs
LEDDescription
1 Drive status LED (yellow)
The drive status LED indicates the following status:
  • The LED is lit: the drive has failed.
  • The LED is flashing slowly (once per second): the drive is being rebuilt.
  • The LED is flashing rapidly (three times per second): the drive is being identified.
2 Drive activity LED (green)

Each hot-swap drive comes with an activity LED. When this LED is flashing, it indicates that the drive is in use.
