Top view of the sever model with four PCIe risers

This section contains information on the top view of the sever model with four PCIe risers.

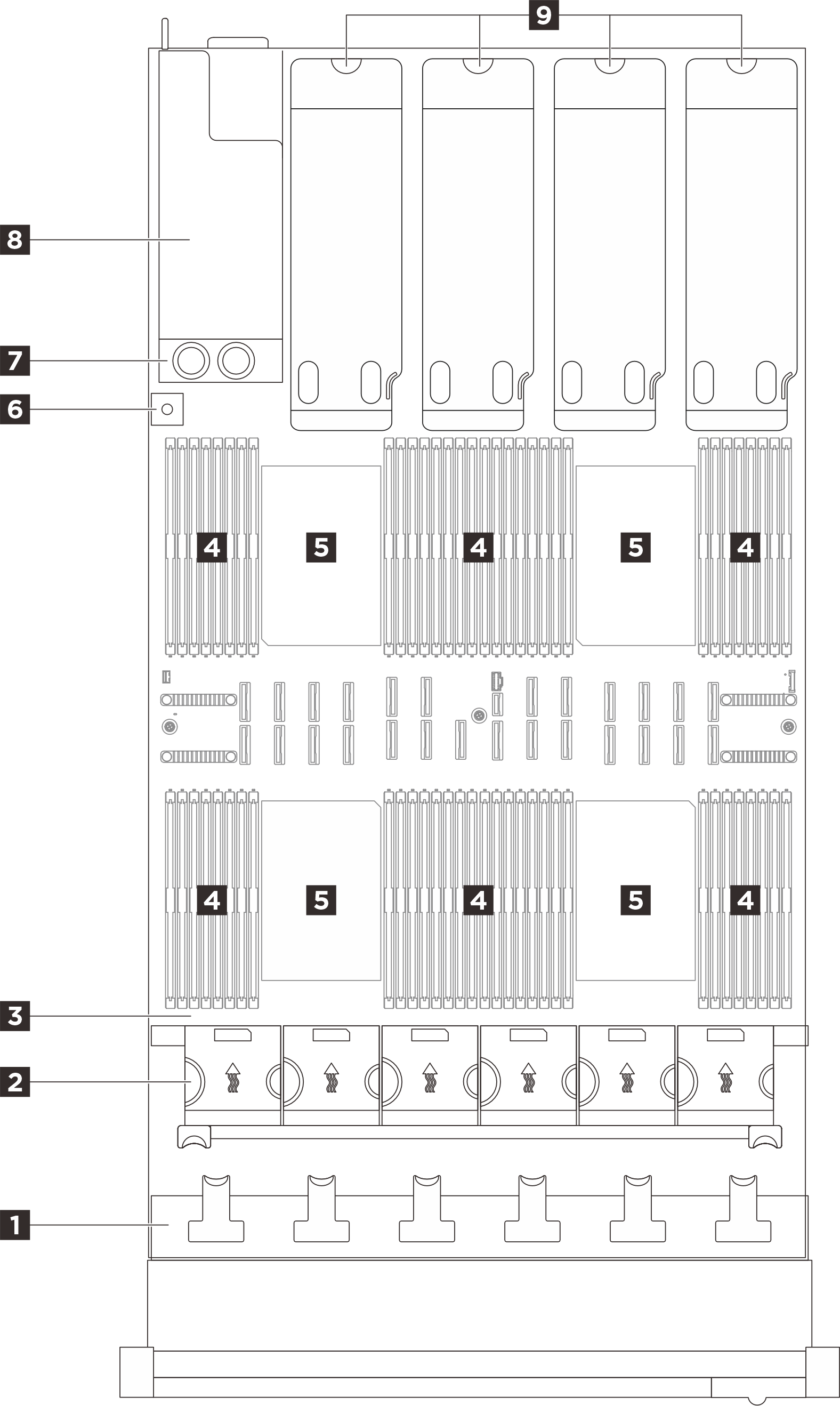

Figure 1. Top view of the sever model with four PCIe risers
Top view of the sever model with four PCIe risers
Table 1. Components on the top view of the sever model with four PCIe risers
1 Drive backplanes2 Fan cage and fans
3 System board assembly4 Memory modules
5 Processors6 Intrusion switch
7 Power distribution board8 Power supply bays
9 PCIe risers
Note
The illustration shows the location of certain parts. Some parts may not be supported at the same time within certain configurations.
