Home page

Home page displays enclosure overall status and information.

After logging into the SMM3 web interface, the home page is displayed. From this page, you can view the Enclosure status, enclosure node, enclosure power, enclosure information, quick actions, and each nodes information.

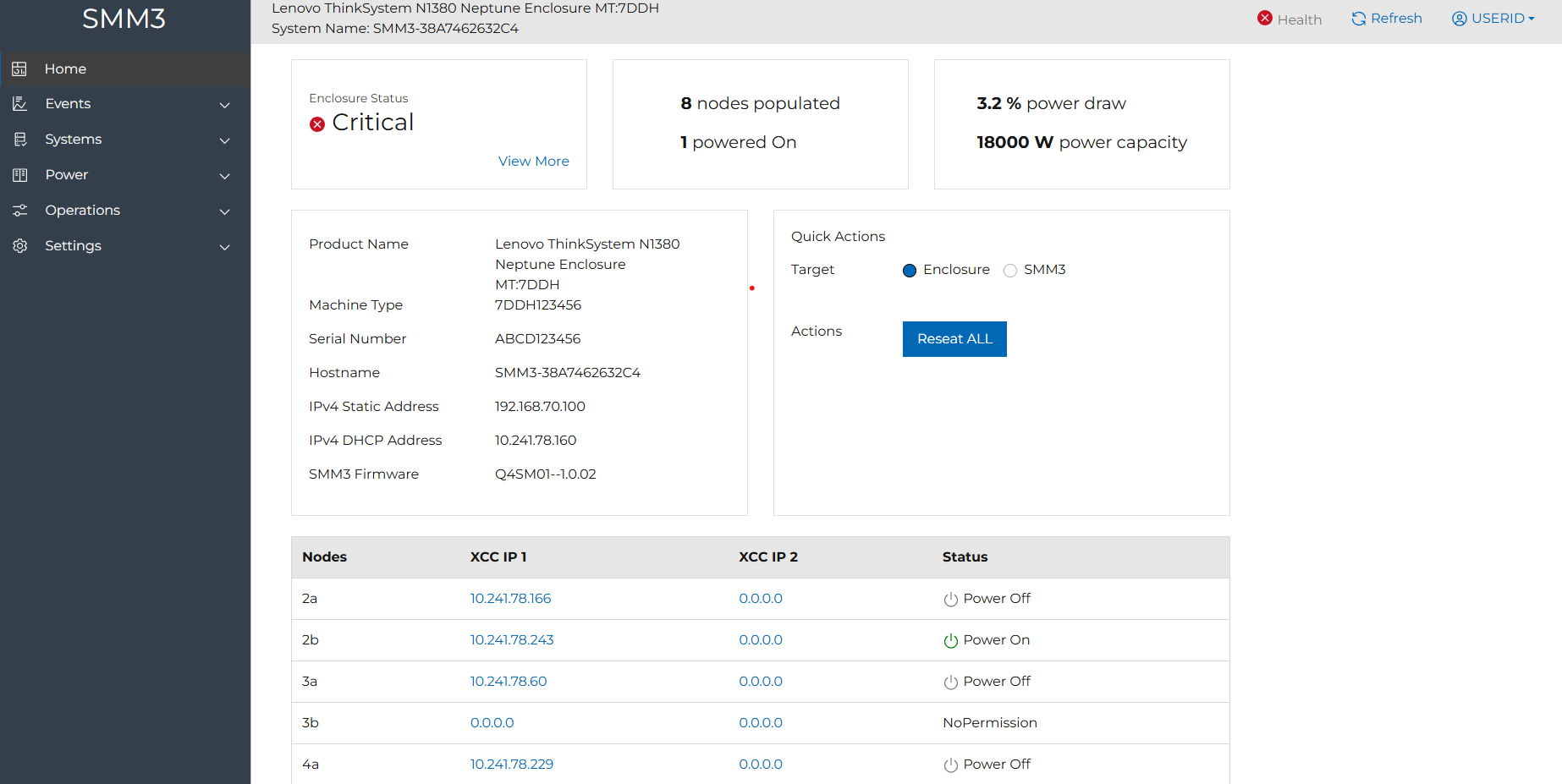

Figure 1. Home page
Home page

Viewing the overall status​

The overall information panel is located to the upper of the home page provides a summary of common server information, which includes the following:

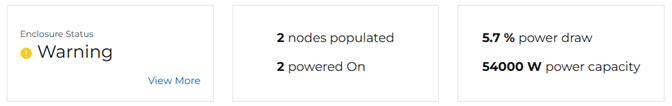

Figure 2. Overall information

  • Enclosure status: Represent the enclosure overall health status which includes the following:
    • : Indicate the enclosure in Normal status.
    • : Indicate the enclosure is in Warning status.
    • : Indicates the enclosure is in Critical status.

    Click the “View More” link to be navigated to the Event Logs page.

  • Node status:
    • Nodes populated: Show the number of present nodes.
    • Powered On: Show the number of powered on nodes.
  • Power status:
    • Power draw: Show current power loading.
    • Power capacity: Maximum power capacity.

Viewing the Enclosure information​

Show the enclosure information which includes the following:

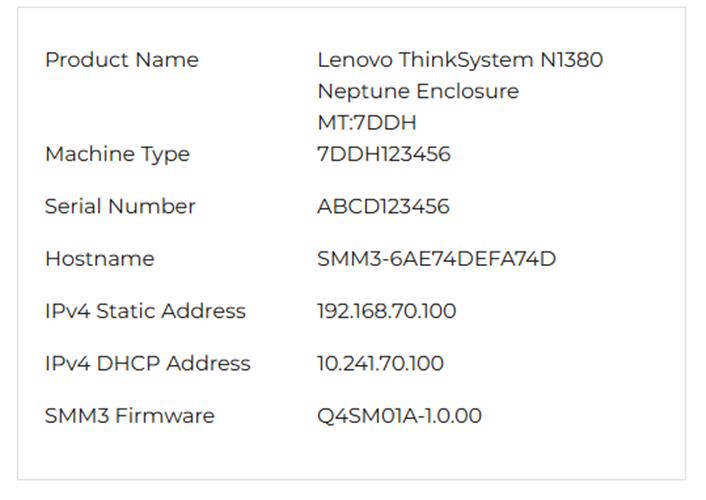

Figure 3. Enclosure information

  • Product Name: Product name

  • Machine Type: Machine type

  • Serial Number: Serial number

  • Hostname: Hostname, default is SMM3-[MAC-Address]

  • IPv4 Static Address: Display the current configured static IPv4 address

  • IPv4 DHCP Address: Display the IPv4 address assigned by the DHCP server

  • SMM3 Firmware: Show current firmware version

Quick Actions​

The quick actions section on the SMM3 home page provided two relative targets, Enclosure and SMM3. You can select one of the following targets to show the related action:

  • Enclosure: “Reseat ALL”.SMM3 will reseat the whole enclosure including the SMM3 and all nodes.

  • SMM3: “Restart”. Restart SMM3.

Viewing the Node information​

The node information panel located to the bottom of the home page provides a summary of common node information, which includes the following:

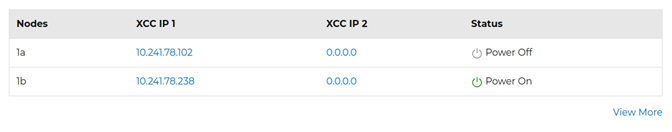

Figure 4. Node information

  • XCC IP 1/ XCC IP 2 link: Click the IP link to open XCC webpage.

  • View more: Redirect to Nodes.
