Remove a ConnectX-8 adapter from a riser cage

Use this information to remove a ConnectX-8 adapter from a riser cage.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Turn off the corresponding DWC tray that you are going to perform the task on.

  • Disconnect all external cables from the enclosure.

  • Use extra force to disconnect QSFP cables if they are connected to the solution.

  • The following illustration might differ slightly from your hardware, but the removal method is the same.

Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Make preparations for this task.
    1. Remove the tray from the enclosure. See Remove a tray from the enclosure.
    2. Remove the tray cover. See Remove the tray cover.
    3. Remove the cross braces. See Remove the cross braces.
    4. Remove the ConnectX-8 adapter riser assembly. See Remove a ConnectX-8 adapter riser assembly.
  2. Remove the ConnectX-8 adapter from the riser cage.
    1. For shared I/O or socket direct configurations, disconnect the cable from the adapter.
    2. Remove the PH1 screw the secures the adapter to the riser cage.
    3. Remove the adapter from the riser cage.

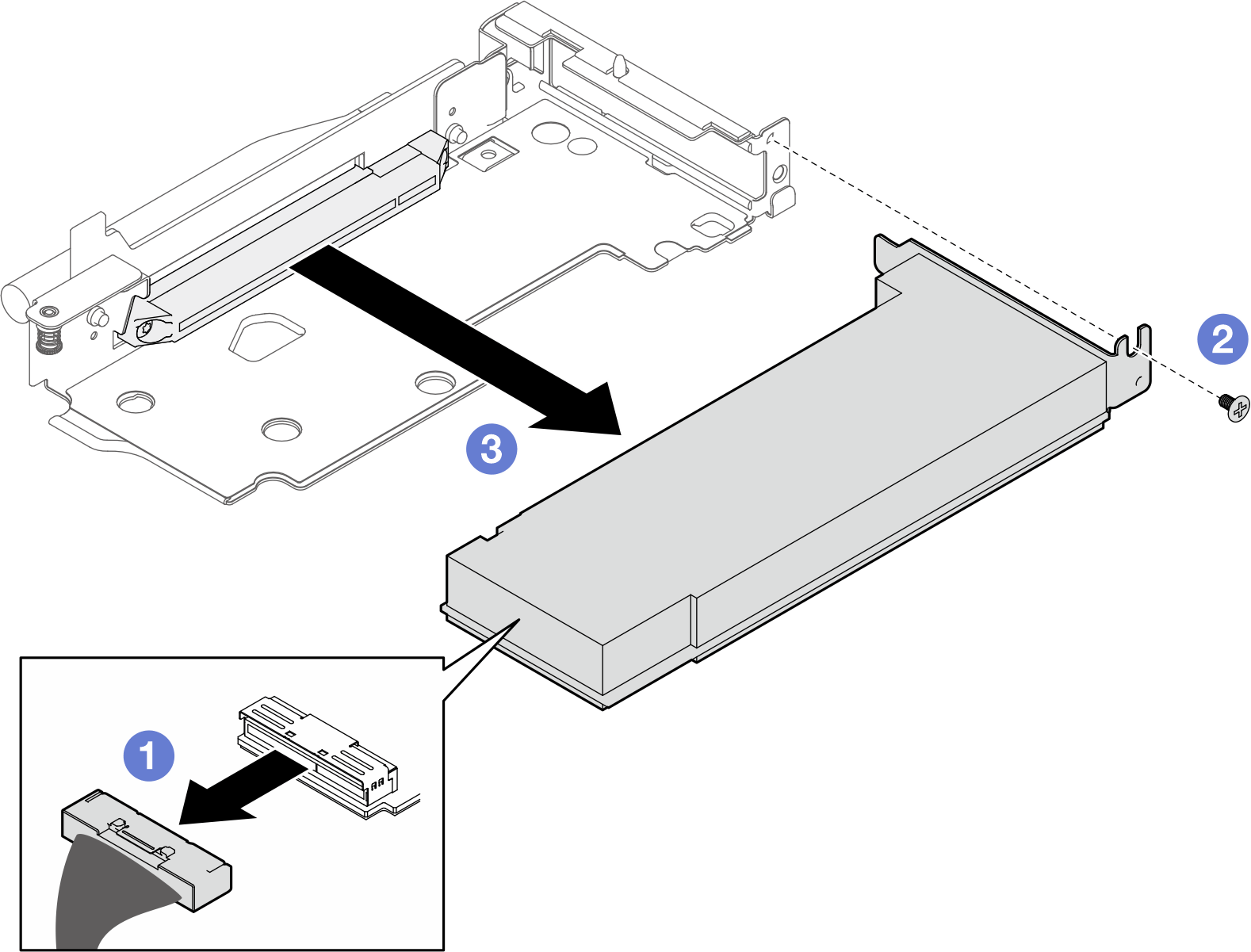

      Figure 1. Removing the ConnectX-8 adapter from riser cage

  3. If necessary, install a filler into the PCIe riser-cage and secure it with a PH1 screw.
    Figure 2. Filler installation

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
