Ethernet adapter expansion kit LEDs

The following table describes the problems that are indicated by fan error LEDs.

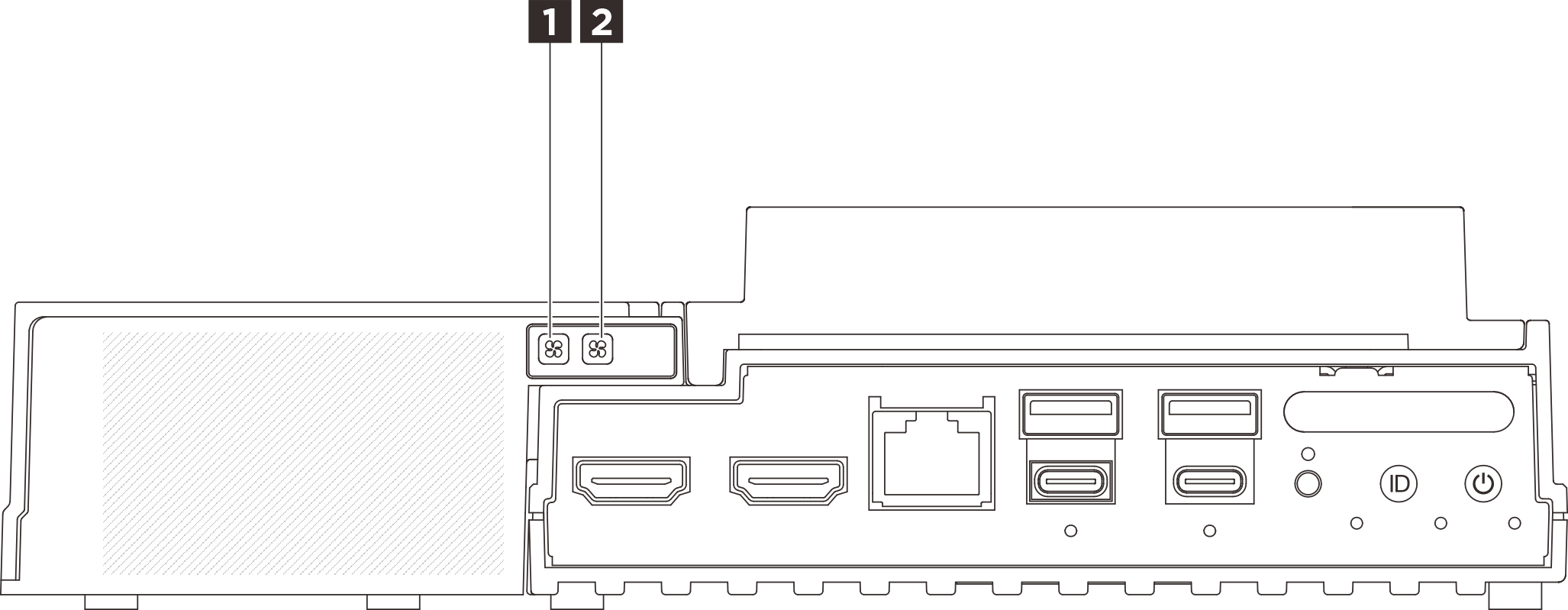

Figure 1. Ethernet adapter expansion kit LEDs

Table 1. Ethernet adapter expansion kit LEDs
1 Fan 5 error LED2 Fan 6 error LED

1 2 Fan error LEDs​

When a fan error LED on the expansion kit with Ethernet adapter is lit, it indicates that the corresponding system fan is operating slowly or has failed.

StatusColorDescriptionAction
OnAmberThe system fan of Ethernet adapter has failed.If the fan error LED is on, do the following:

  1. Replace the failed fan with a new one and check if the new fan can work normally. See Expansion kit fan module replacement.

  2. If the new fan still can not work normally, replace the PCIe riser card with the new one. See PCIe riser card replacement (trained technician only)

OffNoneThe system fan of Ethernet adapter is working normally.
