XCC system management port (10/100/1000 Mbps RJ-45) and LAN port LEDs

This topic provides information on LEDs of XCC system management port (10/100/1000 Mbps RJ-45) and LAN ports.

The following table describes the problems that are indicated by LEDs on XCC system management port (10/100/1000 Mbps RJ-45).

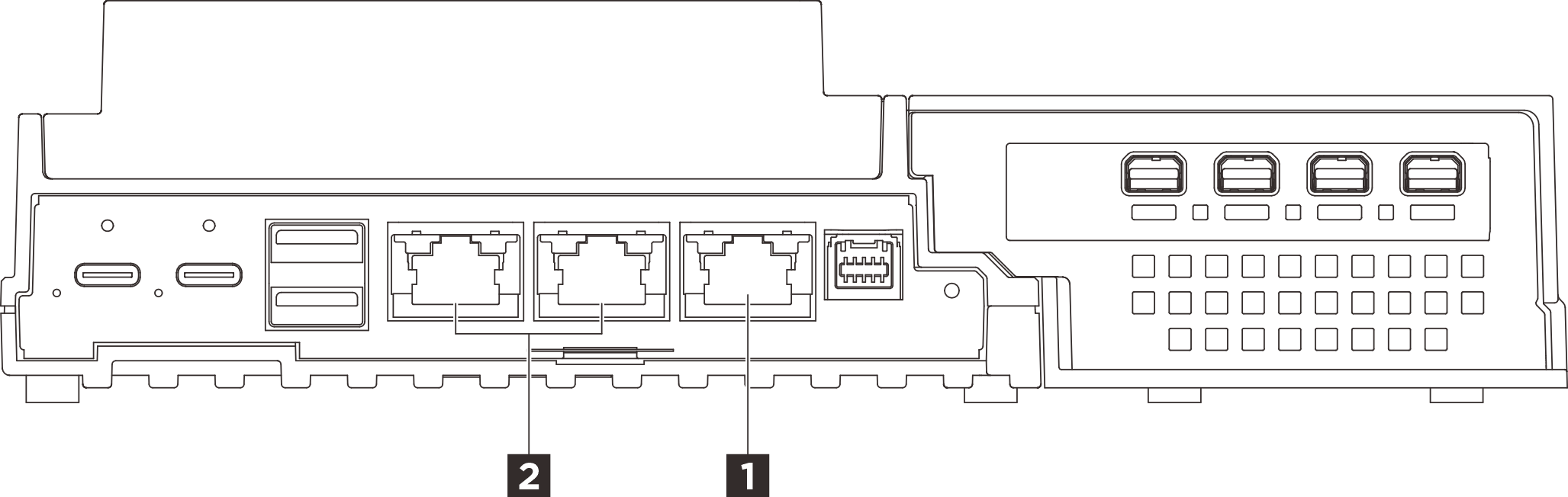

Figure 1. XCC system management port (10/100/1000 Mbps RJ-45) LEDs and LAN port LEDs

1 XCC system management port (10/100/1000 Mbps RJ-45)2 1GbE RJ-45 LAN port link and activity LEDs (LAN 1 to 2)

1 XCC system management port (10/100/1000 Mbps RJ-45) LED​

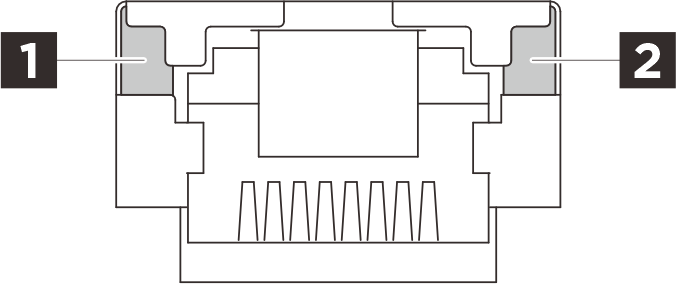

Figure 2. XCC system management port (10/100/1000 Mbps RJ-45) LED

LEDDescription
1 Network link LED (green)
  • Off: The network link is disconnected.
  • On: The network is connected.
2 Network activity LED (green)Blinking: The network is connected and active.
Figure 3. 1GbE RJ-45 LAN port link and activity LEDs

LEDDescription
1 Network link LED (green)
  • Off: The network link is disconnected.
  • On: The network link is connected with LAN speed of 10/100/1000 Mbps.
2 Network activity LED (green)Blinking: The network is connected and active.
