Expansion kit fan module cable routing
Follow the instructions in this section to learn how to do cable routing for blower fan on the expansion kit.
Note
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
When routing the cables, ensure that all cables are routed appropriately through the cable guides and cable clips.

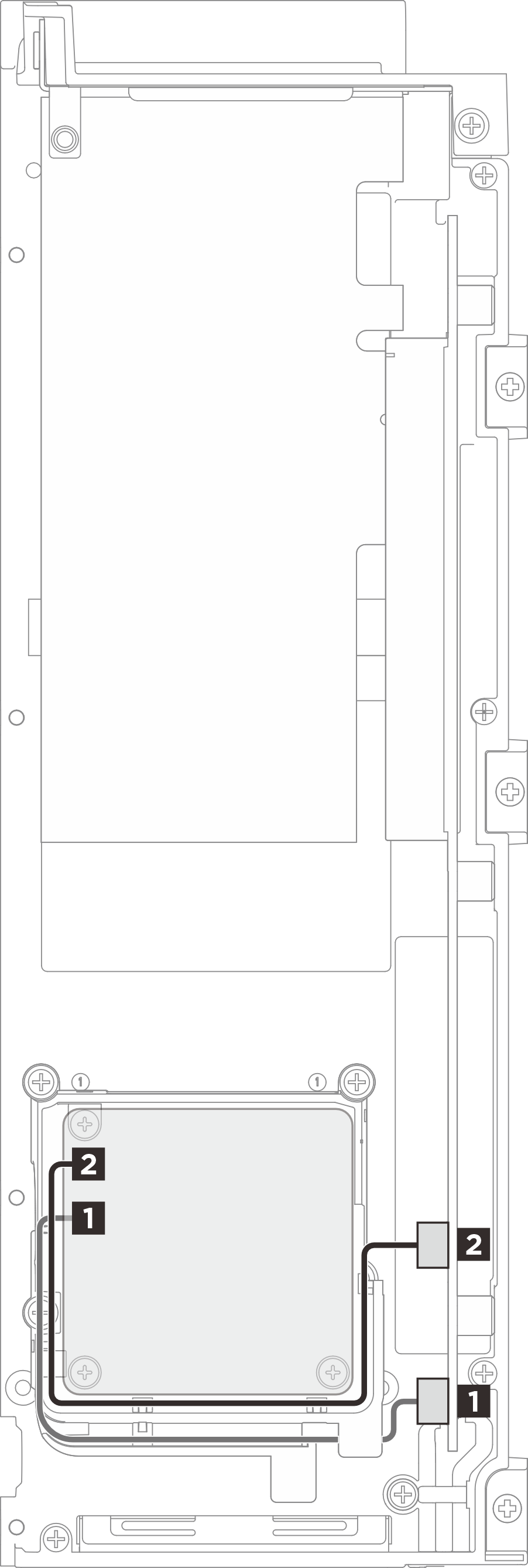

Figure 1. Cable routing for expansion kit fan module
| Cable | From: Fan | To: PCIe riser card |
| 1 | Fan 5 | Fan 5 connector |
| 2 | Fan 6 | Fan 6 connector |
