Install the PCIe switch shuttle release levers

Follow instructions in this section to install the PCIe switch shuttle release levers.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

  1. Install the PCIe switch shuttle release levers.
    1. Fasten the screw to secure the release lever to the PCIe switch shuttle.
    2. Repeat to install the other release lever.

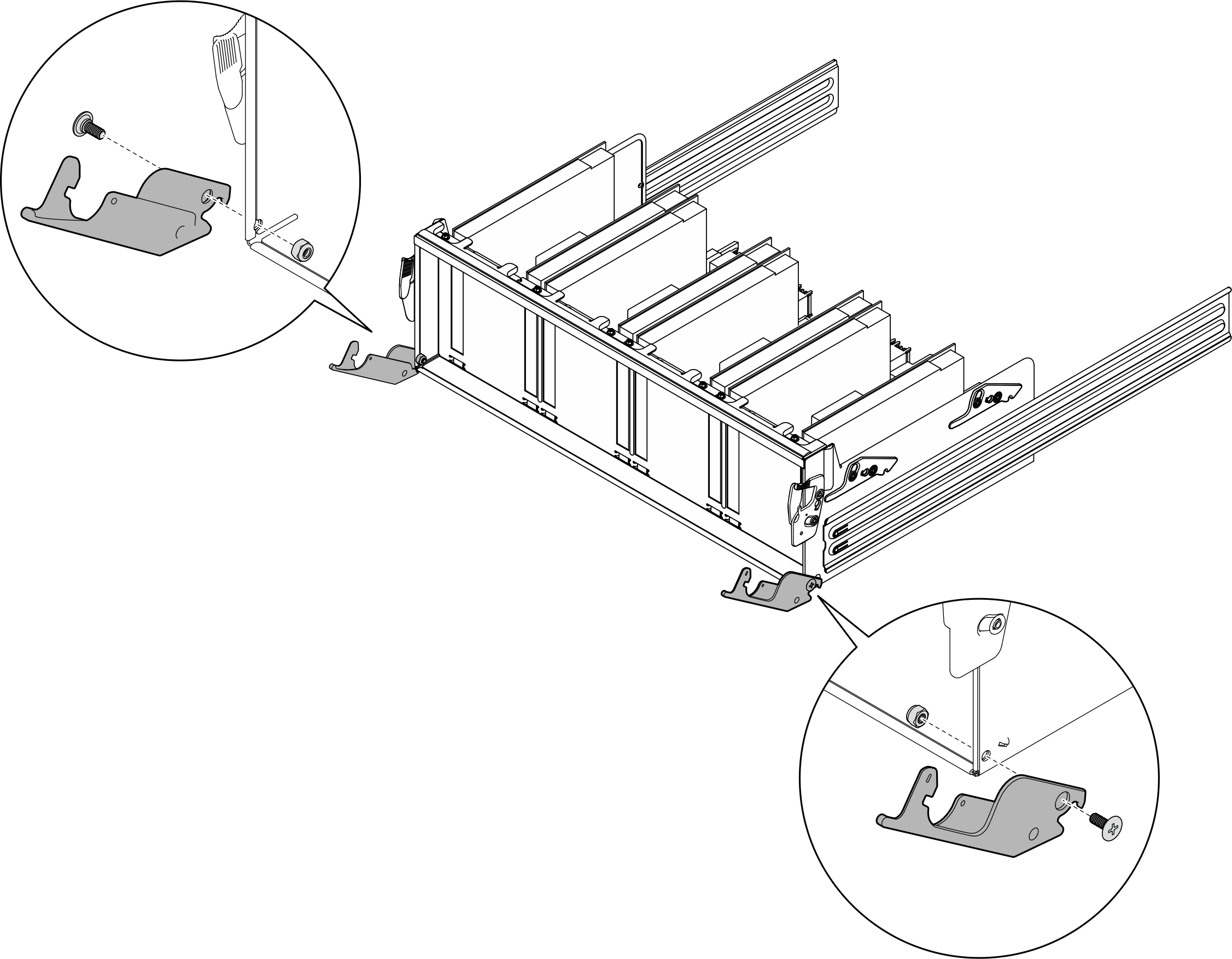

    Figure 1. Release lever installation
    Release lever installation
  2. Push the PCIe switch shuttle fully into the system shuttle.
    1. Press the two front lock latches on both sides of the PCIe switch shuttle.
    2. Push the PCIe switch shuttle fully into the system shuttle.
    3. Rotate the two release levers until they lock into place.
      Figure 2. PCIe switch shuttle installation
      PCIe switch shuttle installation

After you finish

Complete the parts replacement. See Complete the parts replacement.
