Install a PCIe adapter

Follow instructions in this section to install a PCIe adapter.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

  1. If a adapter filler has been installed, remove the screw that secures it, and remove the filler.
  2. Install the PCIe adapter.
    1. Align the PCIe adapter with the slot on the PCIe riser card, and insert it in.
    2. Fasten the screw to secure the PCIe adapter to the PCIe riser.

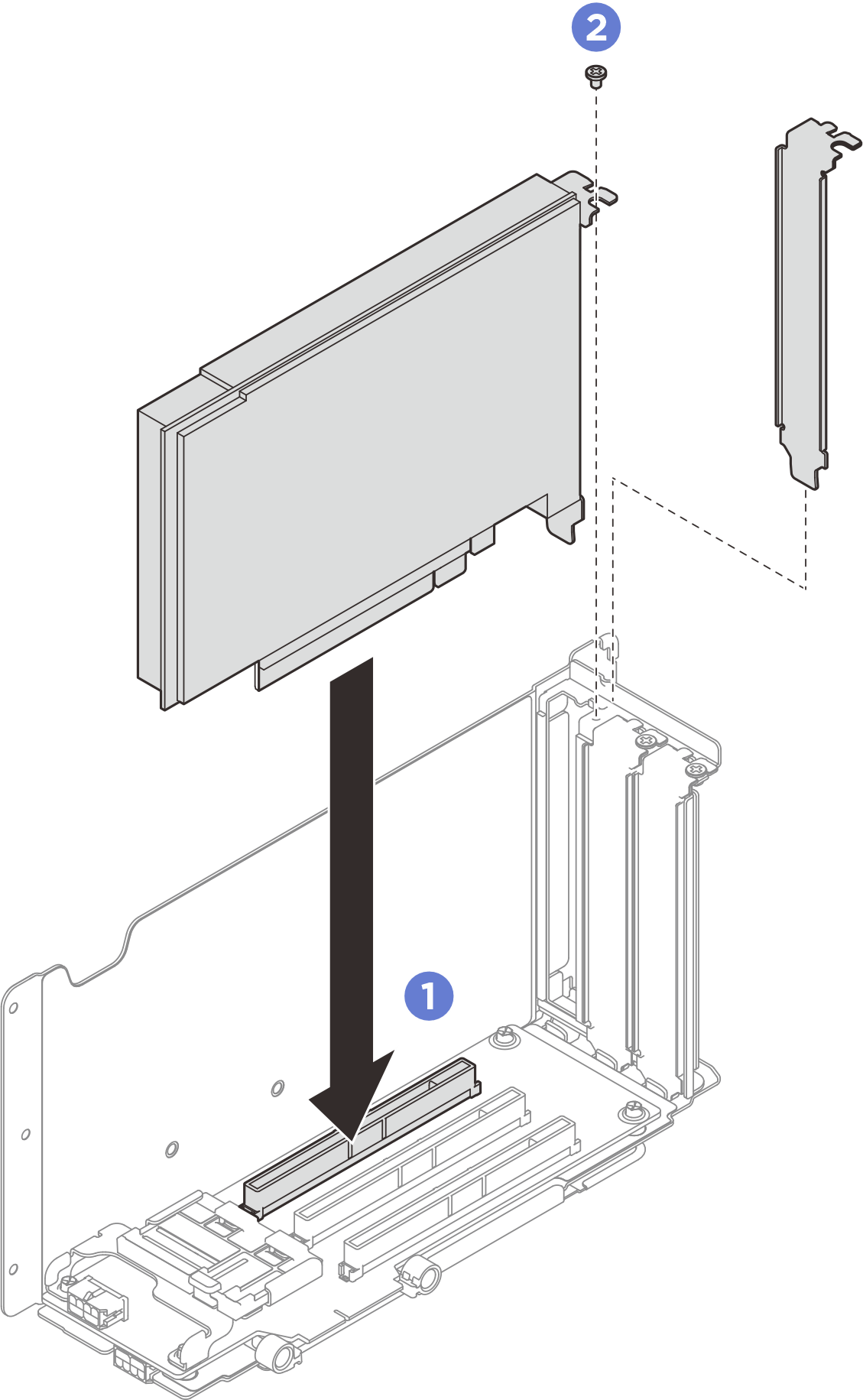

      Figure 1. PCIe adapter installation
      Note
      The PCIe riser might look different from the illustration.

      PCIe adapter installation

After you finish

  1. Reinstall the PCIe riser. See Install a PCIe riser.
  2. Reinstall the rear top cover. See Install the rear top cover.
  3. Reinstall the front top cover. See Install the front top cover.
  4. Complete the parts replacement. See Complete the parts replacement.

Demo video

Watch the procedure on YouTube
