System-board-assembly layout

The illustrations in this section provide information about the connectors, switches, and jumpers that are available on the system board assembly.

The following illustration shows the layout of the system board assembly which contains the system I/O board (DC-SCM) and processor board.

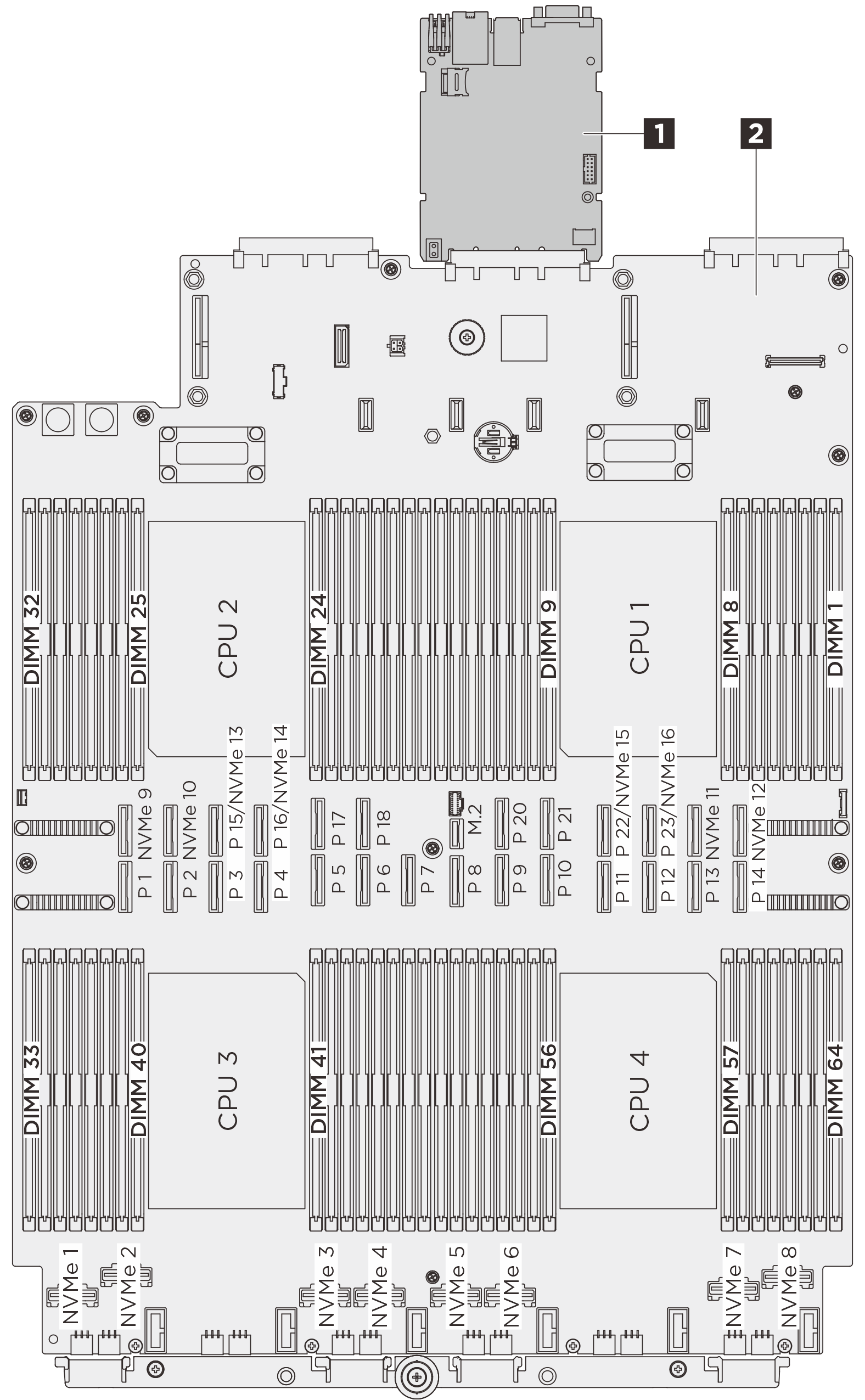

Figure 1. System-board-assembly layout

1 System I/O board (DC-SCM)

2 Processor board

For more information about the LEDs that are available on the system board assembly, see Processor board LEDs.
