Parts list
Identify each of the components that is available for your server with the parts list.
Go to Lenovo Data Center Support and navigate to the support page for your server.
Click .
Enter the serial number to view a listing of parts for your server.
It is highly recommended that you check the power summary data for your server using Lenovo Capacity Planner before purchasing any new parts.
T1: Tier 1 customer replaceable unit (CRU). Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request with no service agreement, you will be charged for the installation.
T2: Tier 2 customer replaceable unit (CRU). You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
F: Field replaceable unit (FRU). FRUs must be installed only by trained service technicians.
C: Consumable and Structural parts. Purchase and replacement of consumable and structural parts (components, such as a filler or bezel) is your responsibility. If Lenovo acquires or installs a structural component at your request, you will be charged for the service.

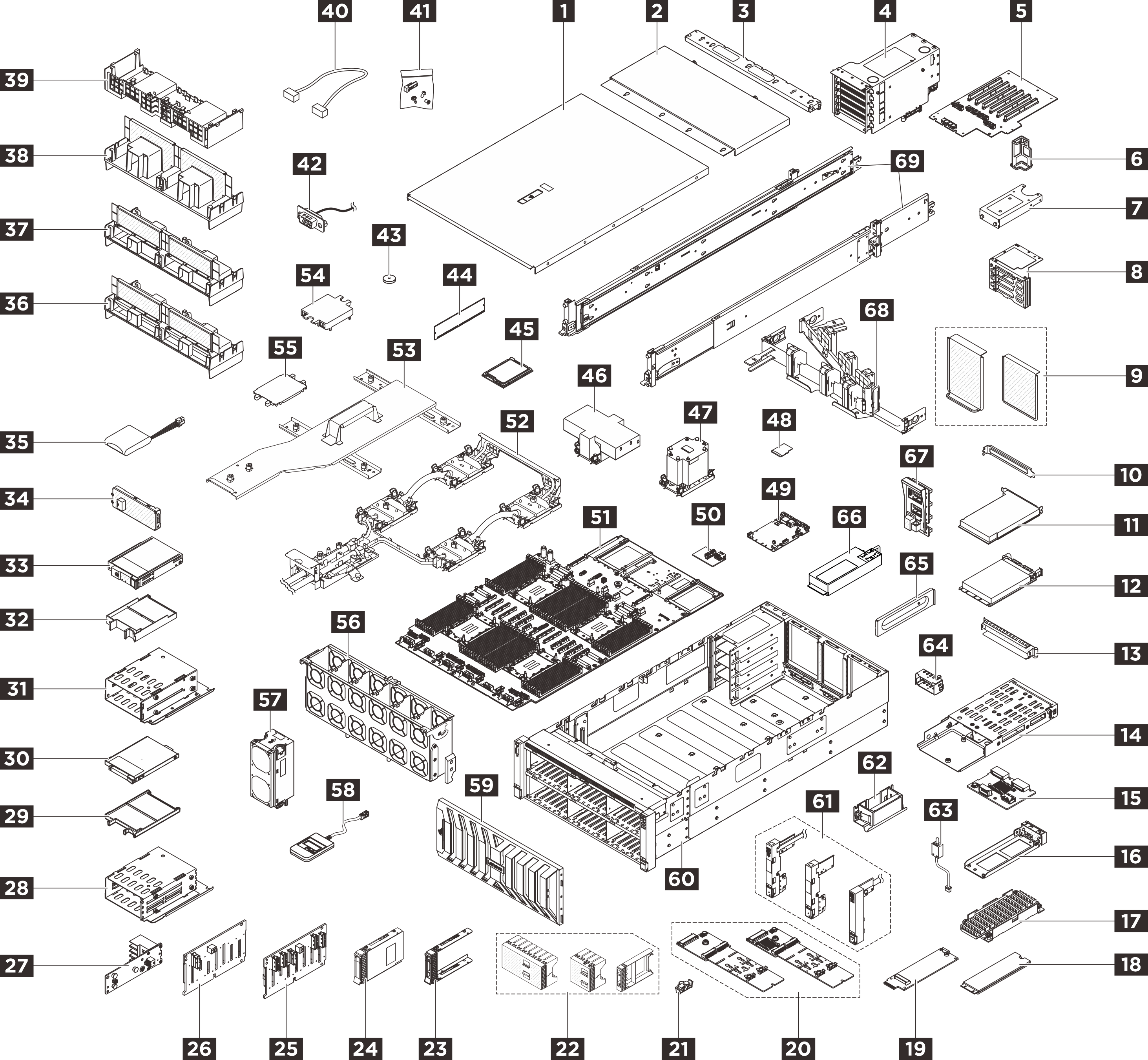

| Index | Description | Type | Index | Description | Type |
|---|---|---|---|---|---|
For more information about ordering parts:
| |||||
| 1 | Front top cover | T1 | 2 | Rear top cover | T1 |
| 3 | Crossbar | T1 | 4 | PCIe riser cage | T1 |
| 5 | PCIe riser card | T2 | 6 | PCIe riser cable retainer | T1 |
| 7 | Riser cage extender (half height) | T2 | 8 | Riser cage extender (full height) | T2 |
| 9 | Riser cage filler | C | 10 | PCIe adapter bracket filler | C |
| 11 | PCIe adapter | T1/T2* | 12 | OCP module | T1 |
| 13 | OCP module filler | C | 14 | Rear M.2 drive cage | T1 |
| 15 | Rear M.2 backplane | T2 | 16 | Rear M.2 drive tray | T1 |
| 17 | M.2 heat sink | F | 18 | M.2 drive | T1 |
| 19 | M.2 interposer | T2 | 20 | Internal M.2 backplane | T2 |
| 21 | M.2 retainer | T1 | 22 | 2.5-inch drive filler | C |
| 23 | 2.5-inch drive tray | T1 | 24 | 2.5-inch drive | T1 |
| 25 | 2.5-inch AnyBay drive backplane | T2 | 26 | 2.5-inch SAS/SATA drive backplane | T2 |
| 27 | E3.S backplane | T2 | 28 | E3.S 1T drive cage | T2 |
| 29 | E3.S 1T drive filler | C | 30 | E3.S 1T drive | T1 |
| 31 | E3.S 2T drive cage | T2 | 32 | E3.S 2T drive filler | C |
| 33 | E3.S 2T CMM | T1 | 34 | E3.S bezel | C |
| 35 | RAID flash power module (supercap) | 36 | Rear air baffle with sponge (liquid cooling) | T1 | |
| 37 | Rear air baffle (2U performance PHM) | T1 | 38 | Rear air baffle (3U standard PHM) | T1 |
| 39 | Front air baffle | T1 | 40 | Cable | T1 |
| 41 | Miscellaneous parts kit (screws, labels, or fillers) | T1 | 42 | Serial port module | T1 |
| 43 | CMOS battery (CR2032) | C | 44 | Memory module | T2 |
| 45 | Processor | F | 46 | 2U performance heat sink | F |
| 47 | 3U standard heat sink | F | 48 | MicroSD card | T1 |
| 49 | System I/O board (DC-SCM) | F | 50 | USB I/O board | T1 |
| 51 | Processor board | F | 52 | Processor Neptune® Core Module | F |
| 53 | Water loop shipping bracket | T1 | 54 | Cold plate cover | T1 |
| 55 | Processor socket cover | C | 56 | Fan cage | T1 |
| 57 | Fan | T1 | 58 | External diagnostics handset | |
| 59 | Security bezel | C | 60 | Chassis | F |
| 61 | Rack latch | T1 | 62 | Chassis lift handle | T1 |
| 63 | Intrusion switch | T1 | 64 | Power supply filler | C |
| 65 | Power supply bracket | T1 | 66 | Power supply | T1 |
| 67 | PDB board | T1 | 68 | Cable management arm | T1 |
| 69 | Rail kit | T2 | |||
PCIe Ethernet adapters: T1
PCIe RAID/HBA adapters: T2
