Top view

This section contains information on the top view of the server.

The following illustration shows the top view of the server with half-length PCIe risers installed.
Note
Depending on the server model and configuration, your server might be slightly different from the image.

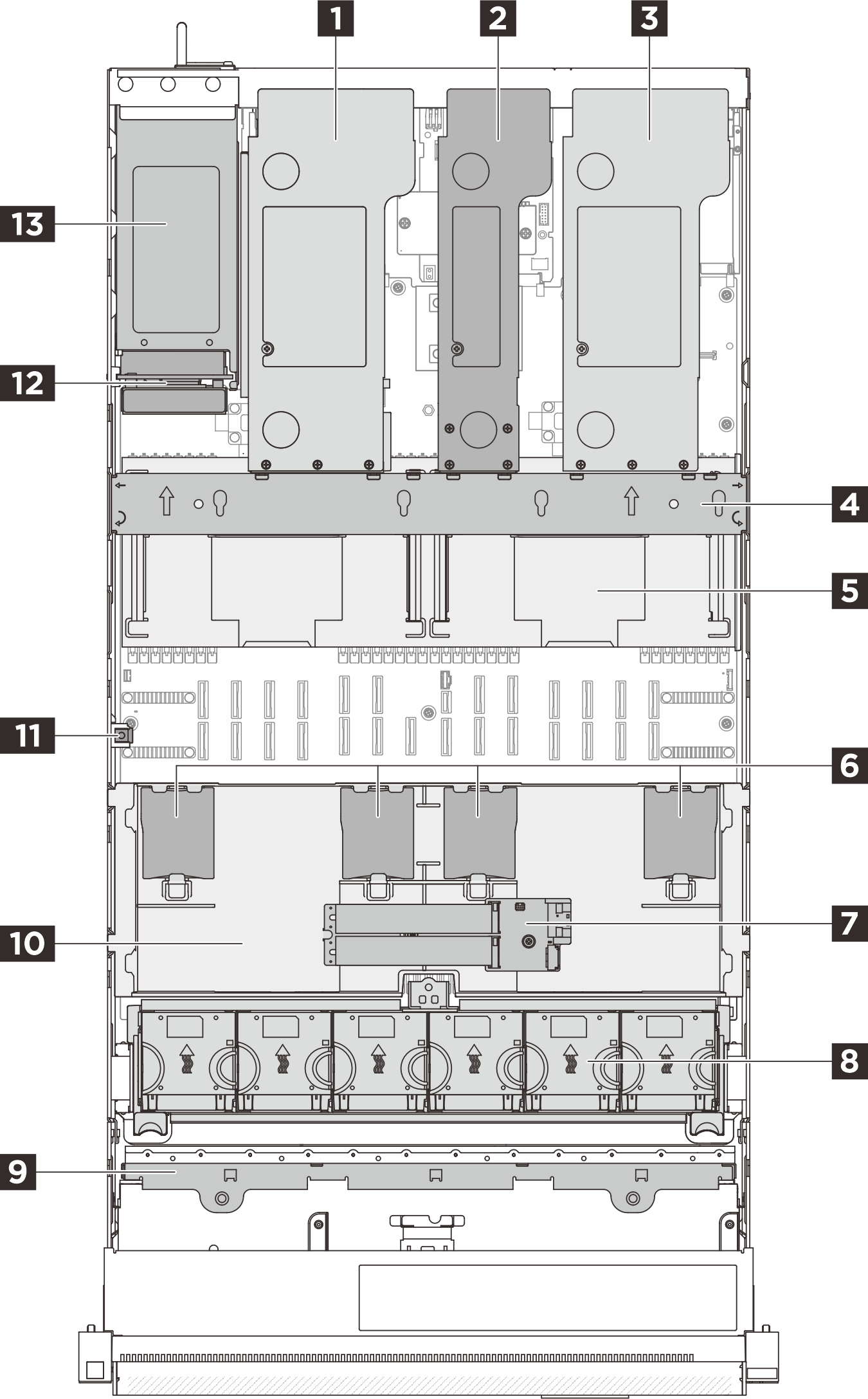

Figure 1. Server top view
Server top view

1 PCIe riser 3

2 PCIe riser 2

3 PCIe riser 1

4 Crossbar

5 Rear air baffle

6 RAID flash power modules

7 M.2 boot adapter

8 Fans and fan cages

9 Drive backplanes

10 Front air baffle

11 Intrusion switch

12 Power distribution board (PDB)

13 Power supplies
