Rear LEDs

This topic provides information about LEDs on the rear of the server.

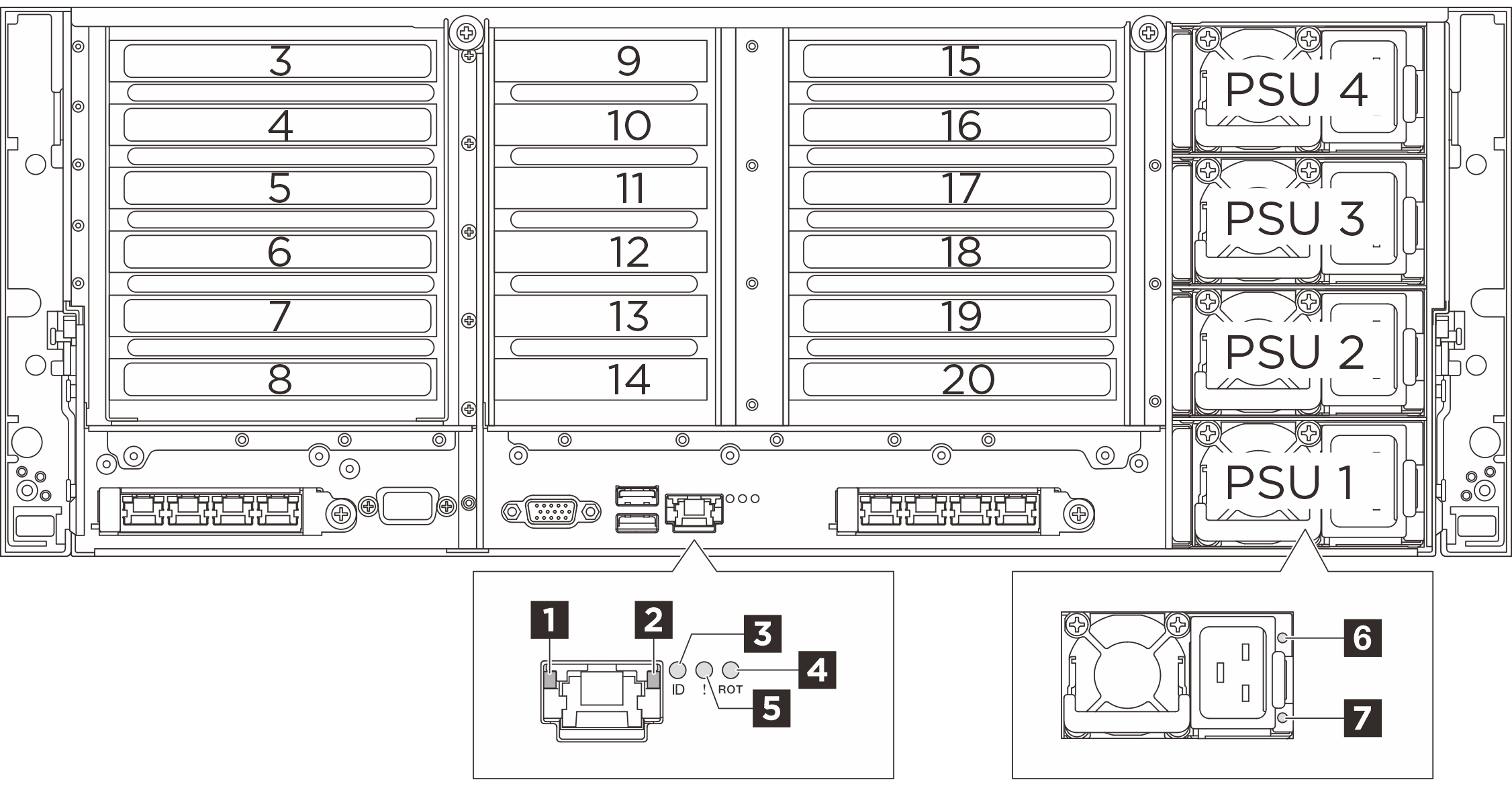

Figure 1. Rear LEDs

Table 1. LEDs on the rear view

LED	Description
1 Link LED of XCC system management port (green)	See XCC system management port LEDs for more information.
2 Activity LED of XCC system management port (green)
3 System ID LED (blue)	See System I/O board LEDs for more information.
4 System error LED (yellow)
5 RoT fault LED (yellow)
67 PSU LEDs	See Power supply LEDs for more information.
