Parts list
Use the parts list to identify each of the components that are available for your solution.
Go to Lenovo Data Center Support and navigate to the support page for your solution.
Click .
Enter the serial number to view a listing of parts for your solution.
It is highly recommended that you check the power summary data for your solution using Lenovo Capacity Planner before purchasing any new parts.
Tier 1 customer replaceable unit (CRU): Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request with no service agreement, you will be charged for the installation.
Tier 2 customer replaceable unit (CRU): You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your solution.
Field replaceable unit (FRU): FRUs must be installed only by trained service technicians.
Consumable and Structural parts: Purchase and replacement of consumable and structural parts (components, such as a cover or bezel) is your responsibility. If Lenovo acquires or installs a structural component at your request, you will be charged for the service.

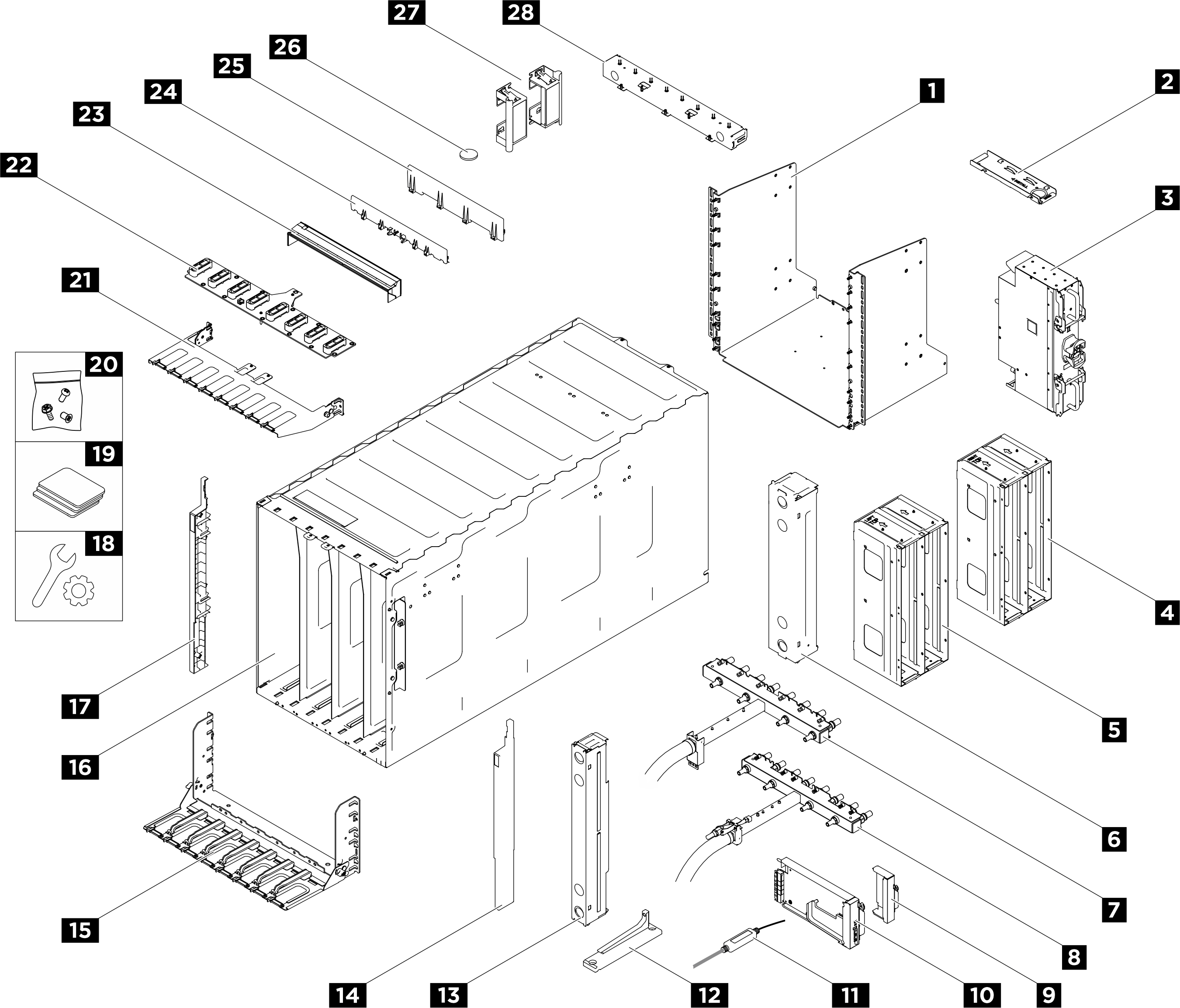

Enclosure parts list
| Index | Description | Type |
|---|---|---|
For more information about ordering parts:
| ||
| 1 | Rear support bracket | FRU |
| 2 | Rear partition bracket | FRU |
| 3 | DWC PCS | FRU |
| 4 | DWC PCS cage (right) | FRU |
| 5 | DWC PCS cage (left) | FRU |
| 6 | DWC PCS filler | FRU |
| 7 | Lower manifold | FRU |
| 8 | Upper manifold | FRU |
| 9 | Rear middle filler | FRU |
| 10 | SMM3 module | FRU |
| 11 | Enclosure leakage sensor | FRU |
| 12 | SMM3 mani conduction plate | FRU |
| 13 | Tray filler | FRU |
| 14 | EIA bracket (right) | FRU |
| 15 | Bottom front support bracket | FRU |
| 16 | Enclosure | FRU |
| 17 | EIA bracket (left) | FRU |
| 18 | Miscellaneous kit | FRU |
| 19 | Thermal pad kit (gap pad kit or putty pad kit) | FRU |
| 20 | Screws | FRU |
| 21 | Top front support bracket | FRU |
| 22 | Interposer card | FRU |
| 23 | Bus bar cover | FRU |
| 24 | Quick connect leakage tray | FRU |
| 25 | PCS leakage tray | FRU |
| 26 | CMOS battery | FRU |
| 27 | Lift handles | FRU |
| 28 | Rear I/O filler | FRU |
