Hot-swap M.2 drive assembly replacement
Follow the instructions in this section to remove and install a hot-swap M.2 drive assembly.
Note
The M.2 interposer and drive shown in the illustration are for reference only and may differ from your actual hardware.

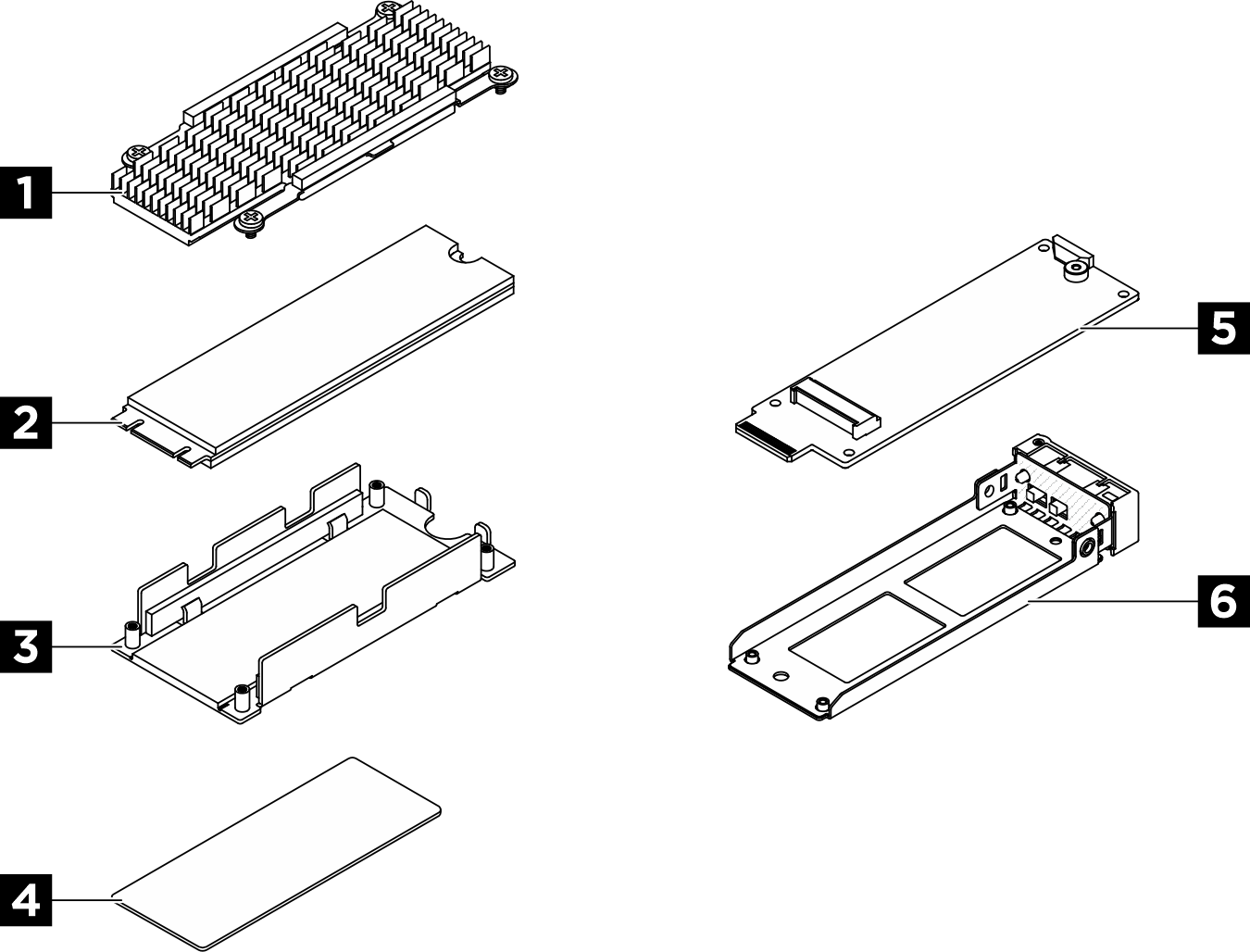

Figure 1. Parts of a hot-swap M.2 drive assembly
| 1 Heat sink | 2 M.2 drive |
| 3 Bottom plate | 4 Thermal pad |
| 5 M.2 interposer | 6 M.2 drive tray |
