Install the manifold (in-rack system)

Follow the instructions to install the manifold in an in-rack direct water cooling system.

About this task

Important

This task must be operated by trained technicians that are certified by Lenovo Service. Do not attempt to remove or install the part without proper training and qualification.

CAUTION

The liquid might cause irritation to the skin and eyes. Avoid direct contact with the liquid.

S002

CAUTION

The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

S011

CAUTION

Sharp edges, corners, or joints nearby.

S038

CAUTION

Eye protection should be worn for this procedure.

S040

CAUTION

Protective gloves should be worn for this procedure.

S042

DANGER

danger

Risk of electric shock due to water or a water solution which is present in this product. Avoid working on or near energized equipment with wet hands or when spilled water is present.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

• Ensure proper handling procedures are followed when working with any chemically treated liquid used in the rack cooling system. Ensure that material safety data sheets (MSDS) and safety information are provided by the liquid chemical treatment supplier and that proper personal protective equipment (PPE) is available as recommended by the liquid chemical treatment supplier. Protective gloves and eyewear may be recommended as a precaution.

• This task requires two or more people.

Procedure

1. Make sure that the in-rack CDU and other devices are not powered on, and that all external cables are disconnected.
2. To install the Processor Neptune^® Core Module (NeptCore), see Install the Lenovo Processor Neptune Core Module.
3. To install the server into the rack, see Install the server to rails.
4. Install the manifold.

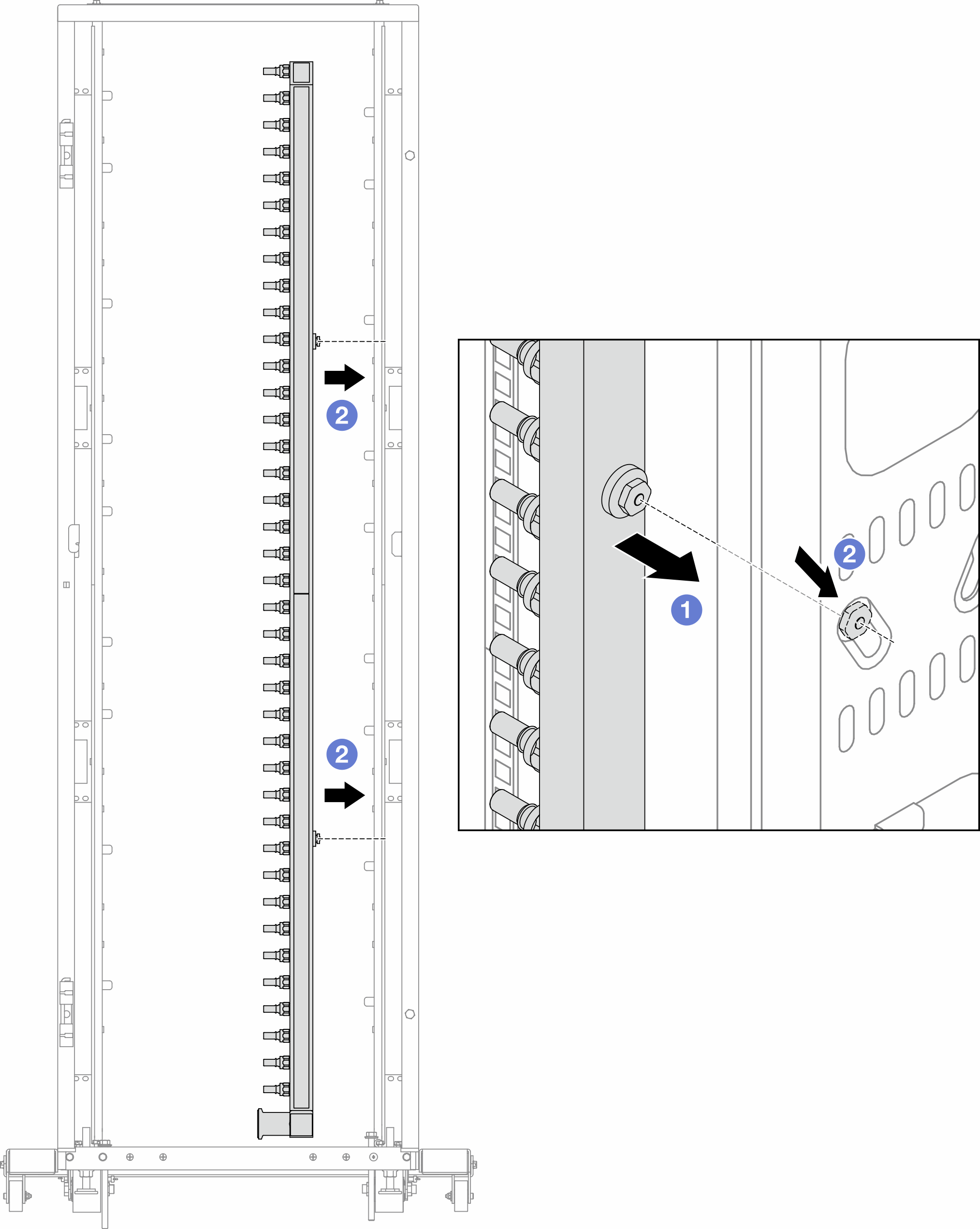

   Figure 1. Installing the manifold






   1. Hold the manifold with both hands, and mount it onto the rack cabinet.
   2. Align the spools with holes, and clutch the cabinet.
   Note

   For more information about the rack cabinet, see ThinkSystem Heavy Duty Full Depth Rack Cabinets User Guide.
5. Repeat 4 to the other manifold.
6. Separate ball valves from connection sets.
   Note

   One end of a connection set comes with a detachable ball valve, and the two parts are connected by a ferrule. Remove the ferrule to separate the ball valve that is bound for CDU in 7.

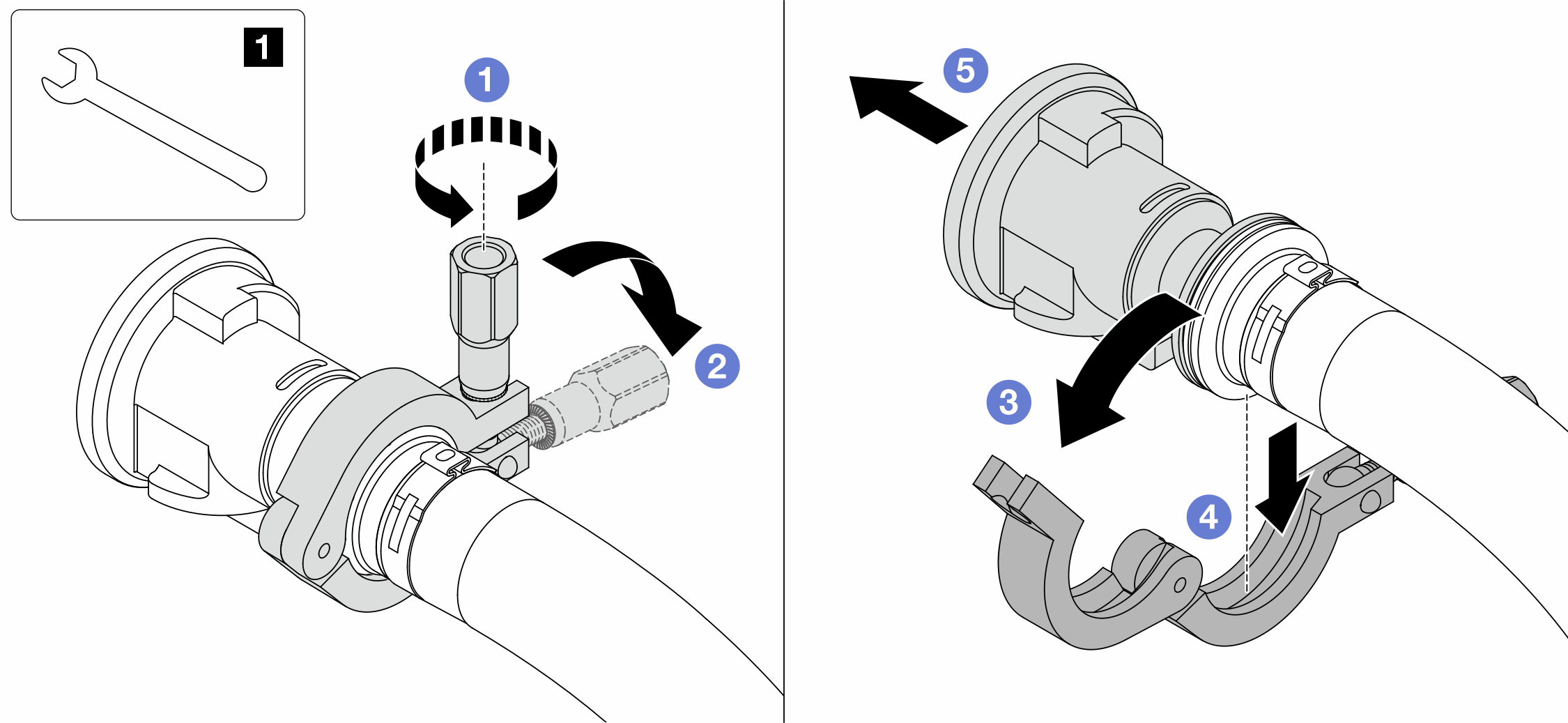

   Figure 2. Separating ball valves







   1 17 mm wrench

   1. Loosen the screw that locks the ferrule.
   2. Put the screw down.
   3. Open the clamp.
   4. Remove the ferrule.
   5. Remove the ball valve from connection set.
7. Install ball valves to CDU.

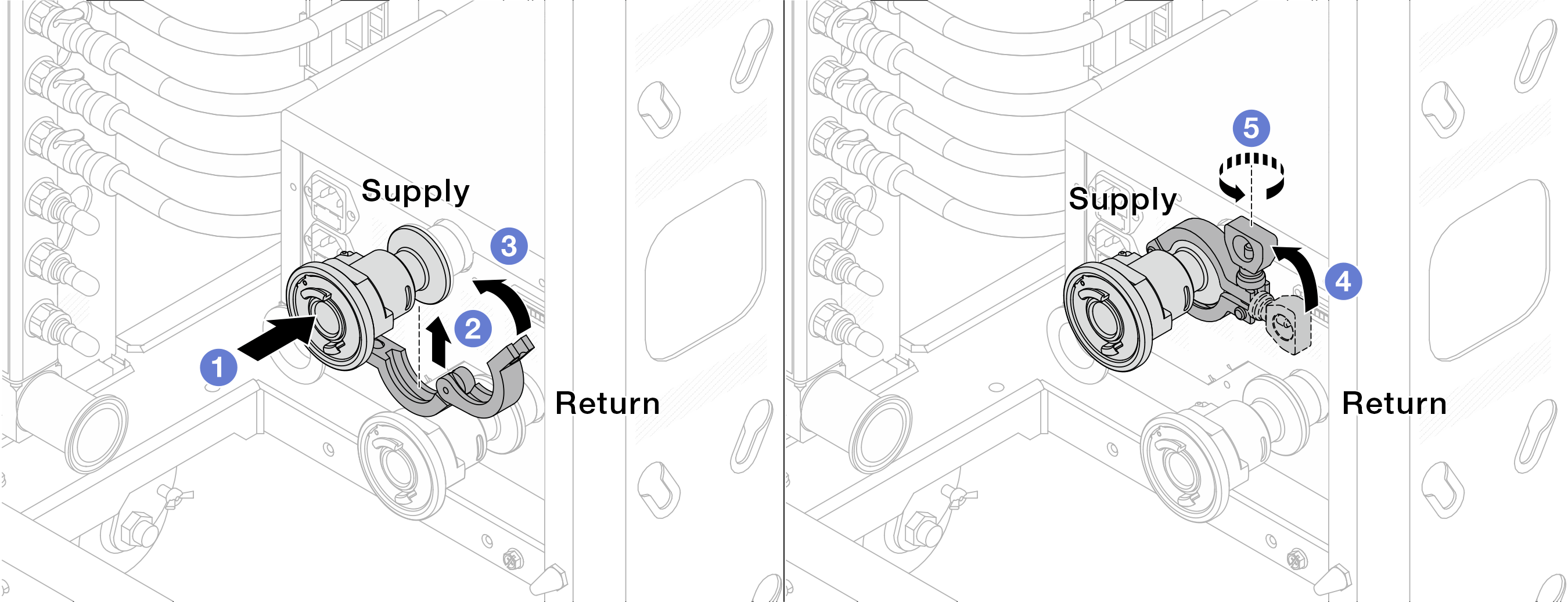

   Figure 3. Installing ball valves






   1. Connect the ball valves to Supply and Return ports.
   2. Wrap the interface around with the clamp.
   3. Close the clamp.
   4. Lift the screw upright.
   5. Tighten the screw and make sure that it is secured.
8. Install the connection set to manifolds.
   Note

   Install the supply side first, then install the return side.

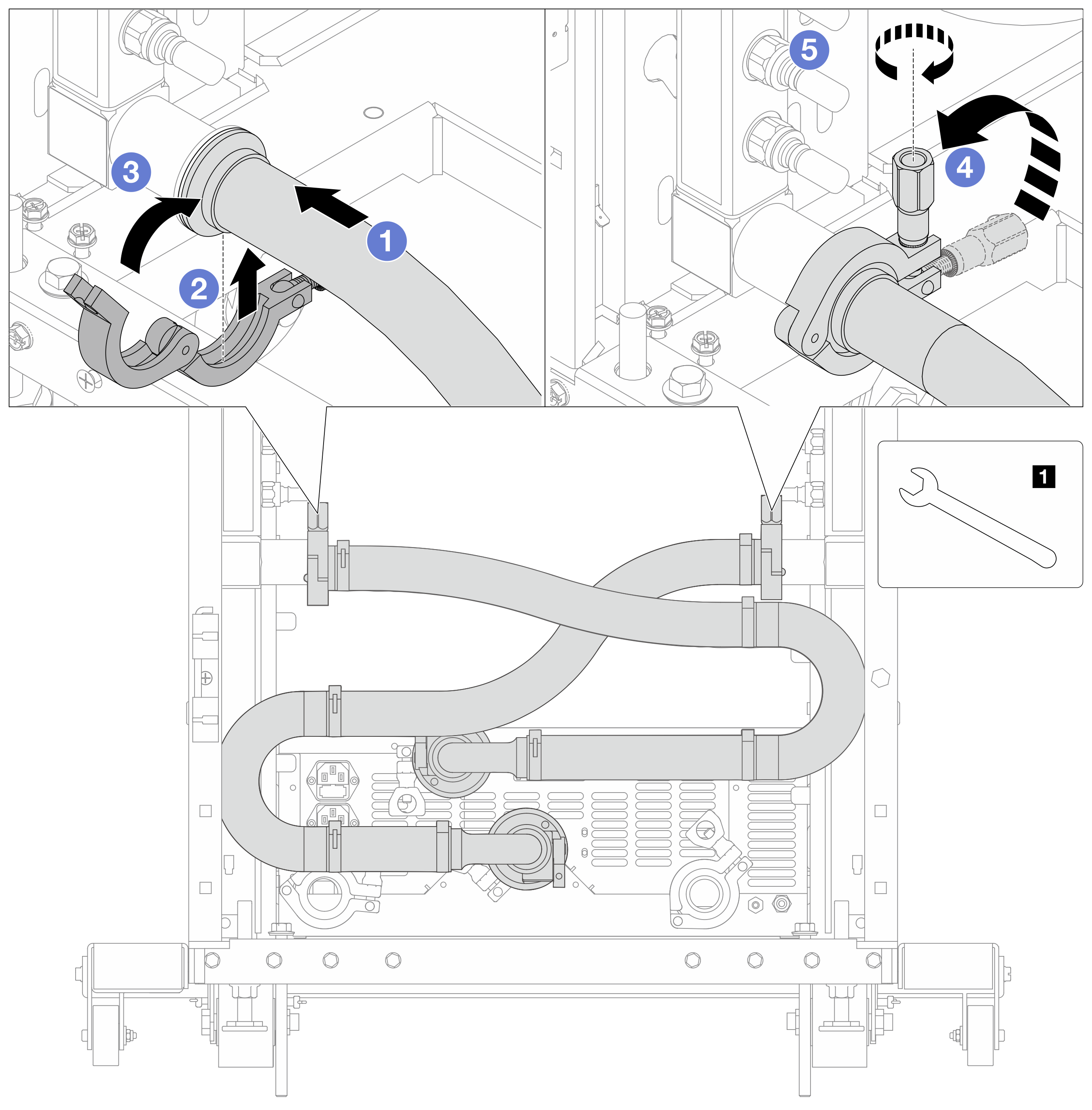

   Figure 4. Installing the connection set







   1 17 mm wrench

   1. Connect the connection set to both manifolds.
   2. Wrap the interface around with the clamp.
   3. Close the clamp.
   4. Lift the screw upright.
   5. Tighten the screw and make sure that it is secured.
9. Install the connection set to ball valves.
   Note

   Install the supply side first, then install the return side.

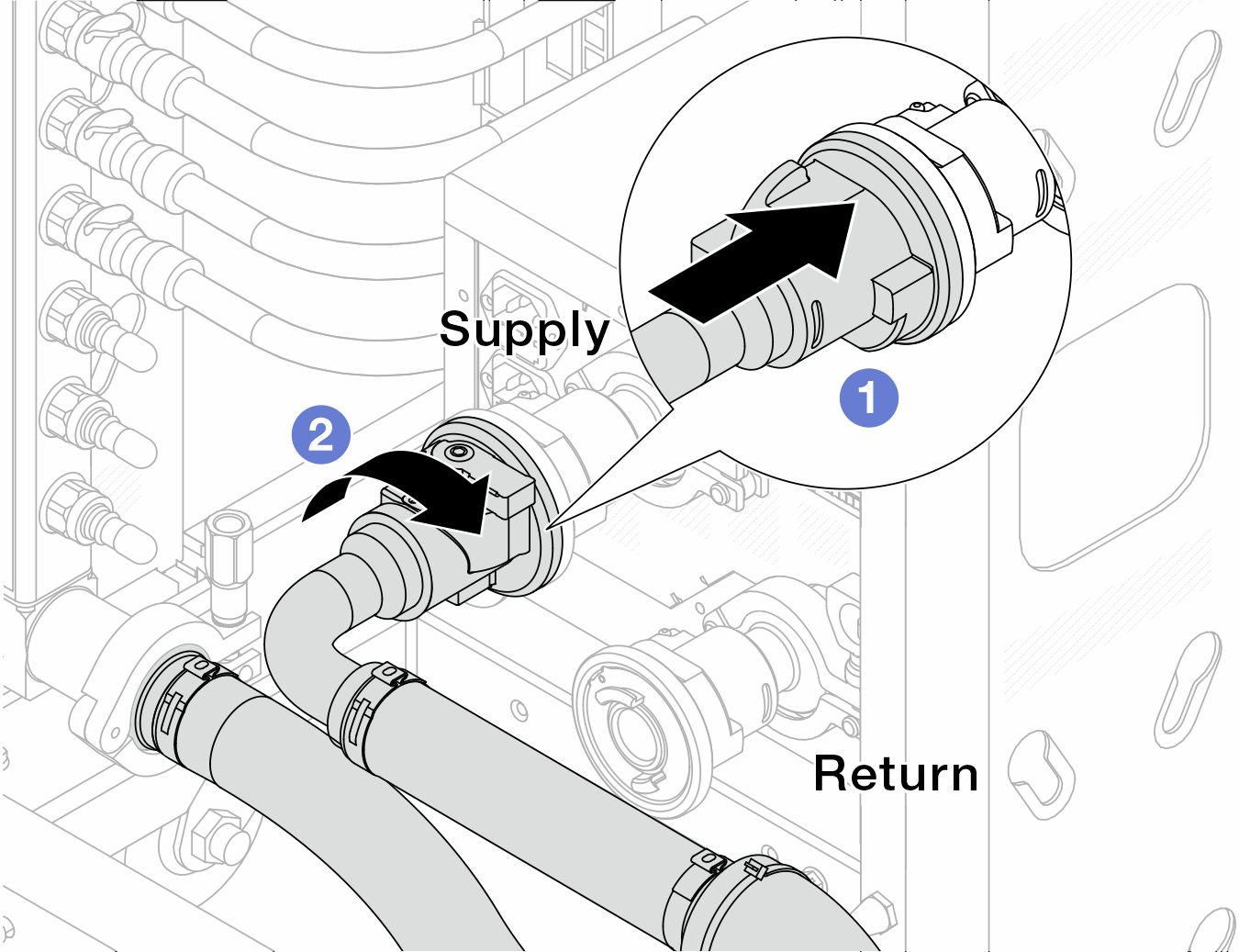

   Figure 5. Connecting ball valves






   1. Connect ball valves.
   2. Rotate to the right to lock the two valves.
10. Prepare the in-rack CDU.
    1. Connect the feed hose to inlet port on the front.

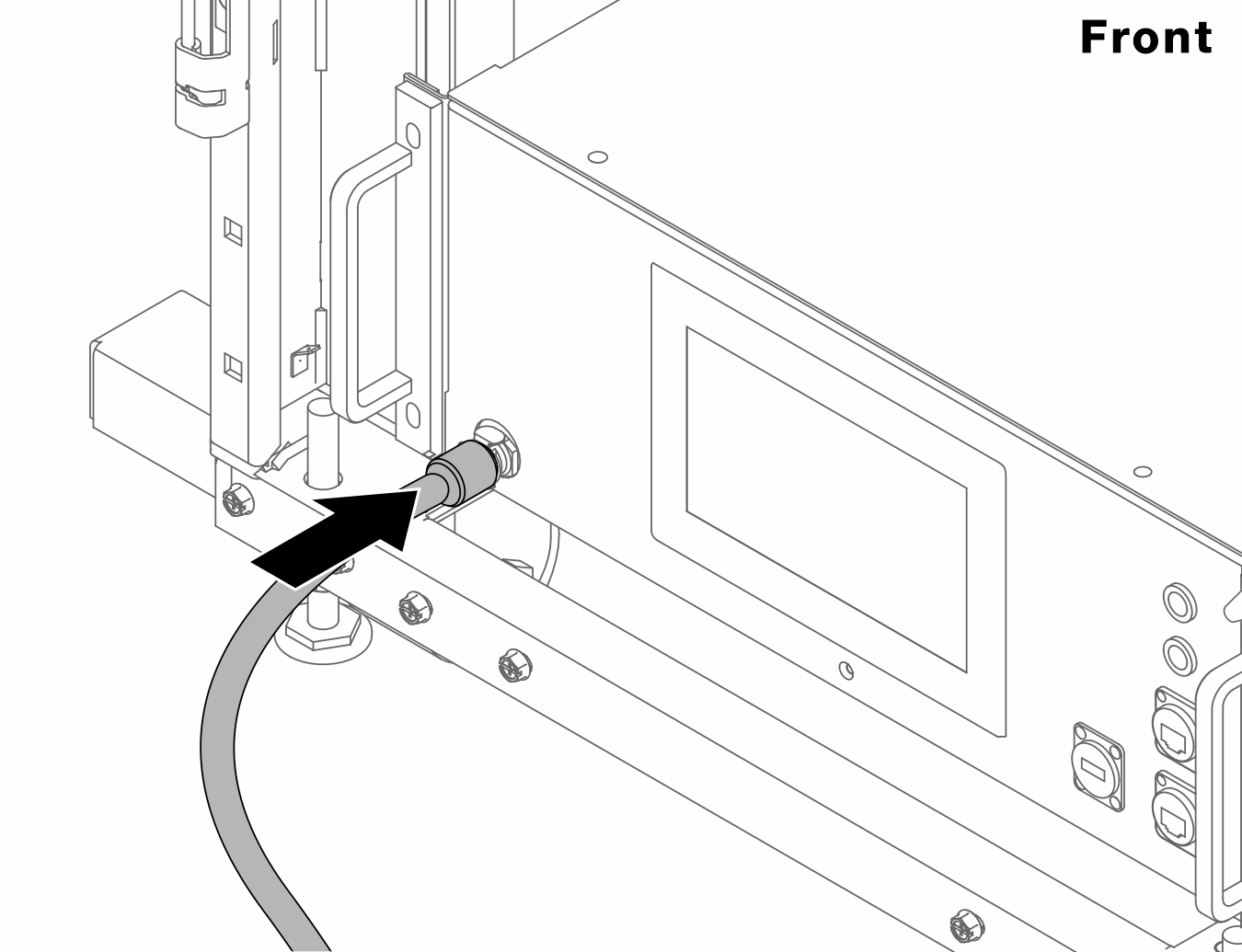

       Figure 6. The front of CDU






    2. Connect hoses to the drain port and bleeder port on the rear.

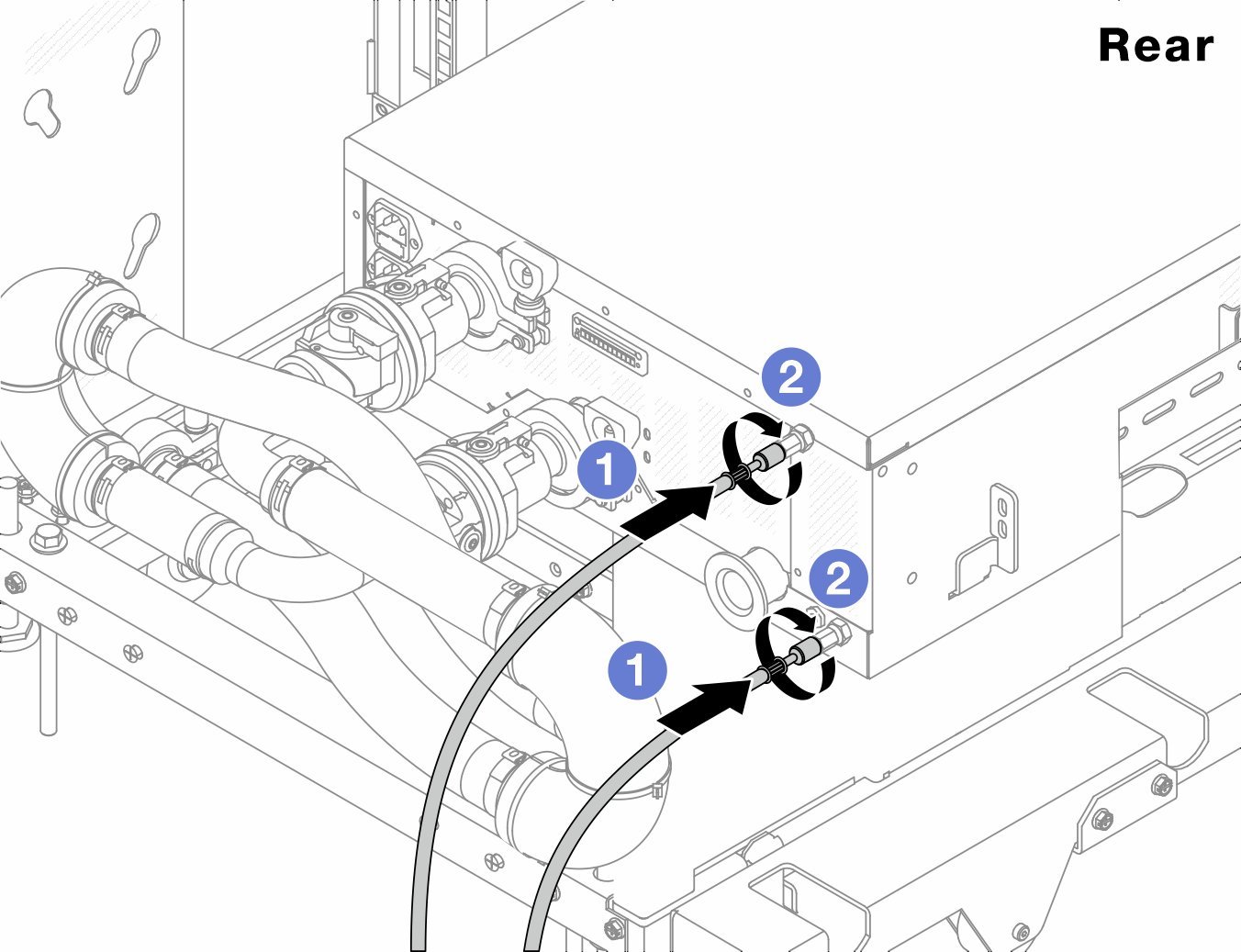

       Figure 7. The rear of CDU







       • Connect both drain and bleeder hoses to CDU.
       • Rotate the connectors to the right to secure the connection.

       Important

       • For more operation and maintenance guidelines, see Lenovo Neptune DWC RM100 in-rack liquid Distribution Unit (CDU) Operation & Maintenance Guide.

       • For service support, associated warranty and maintenance sizing, contact Lenovo Professional Services team at:

         cdusupport@lenovo.com


11. Install the quick connect plug to the manifolds.

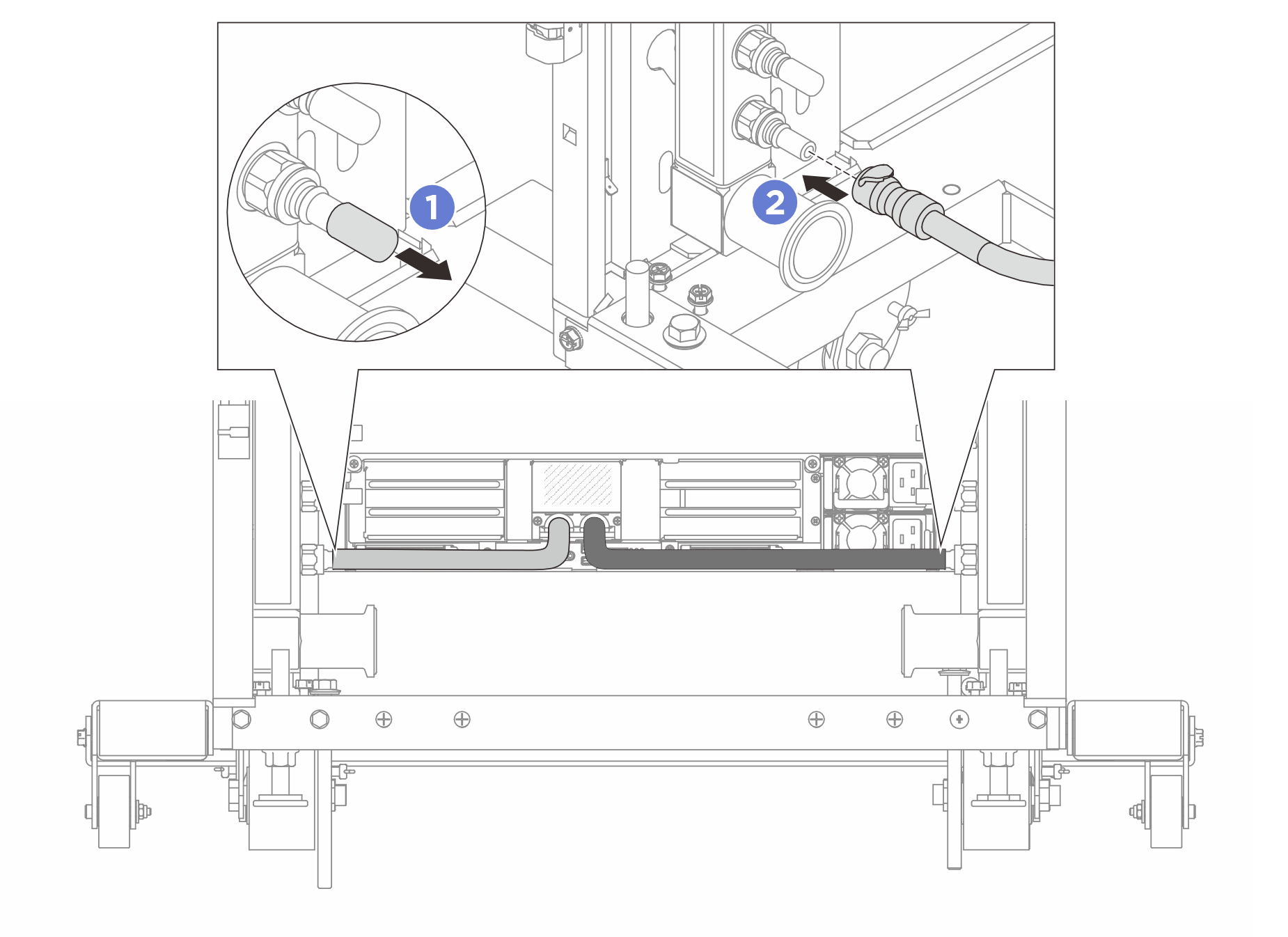

    Figure 8. Installing the quick connect plug






    1. Remove the rubber quick connect plug covers from the ports on the manifold.
    2. Connect the plug to the manifold port.

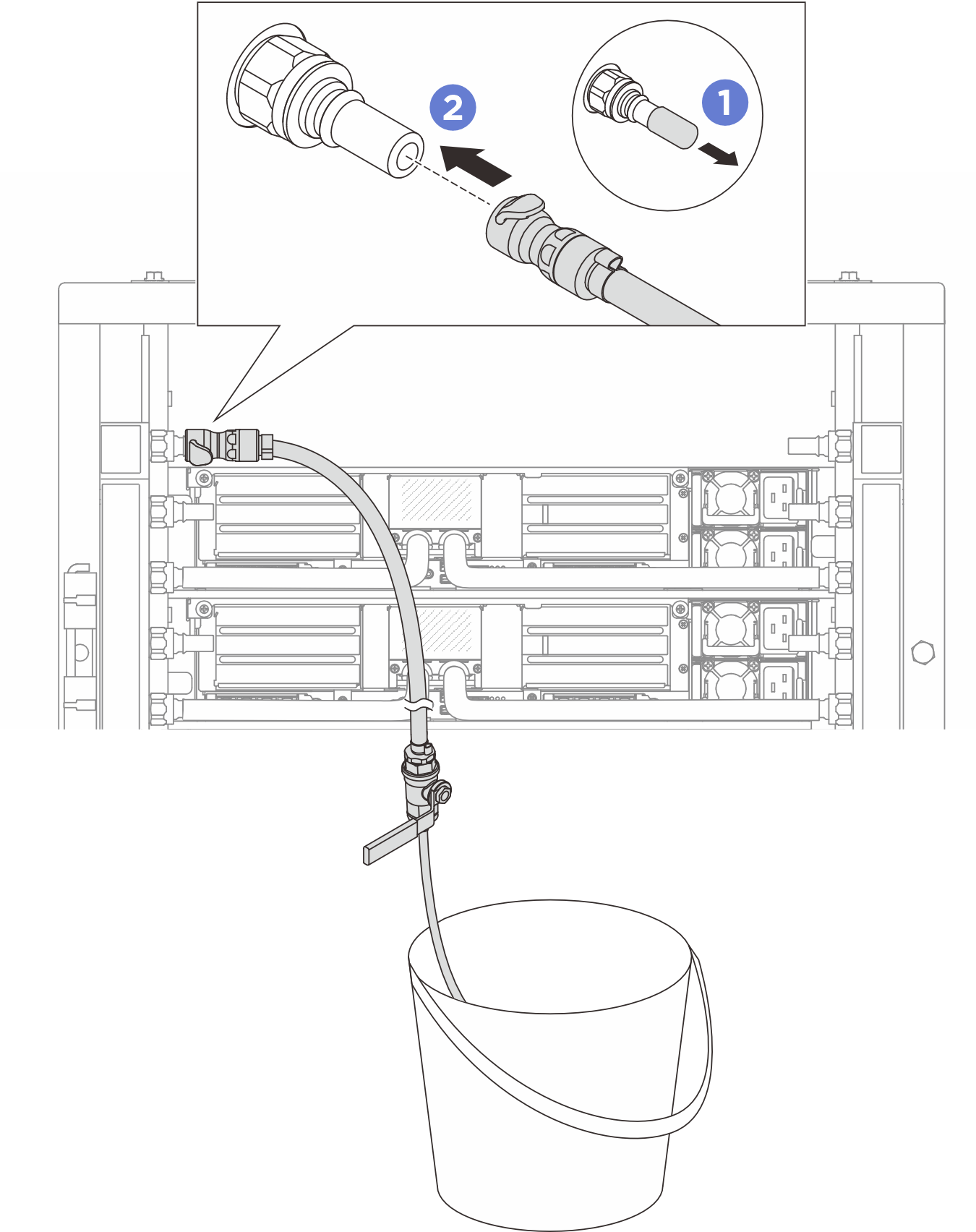

12. Install the bleeder kit to the manifold supply side.
    Figure 9. Installing the bleeder kit to the supply side






    1. Remove the rubber quick connect plug covers from the ports on the manifold.
    2. Plug the bleeder kit to the manifold.
13. To push the air out of the manifolds, open ball valve switches to let liquid fill the system.

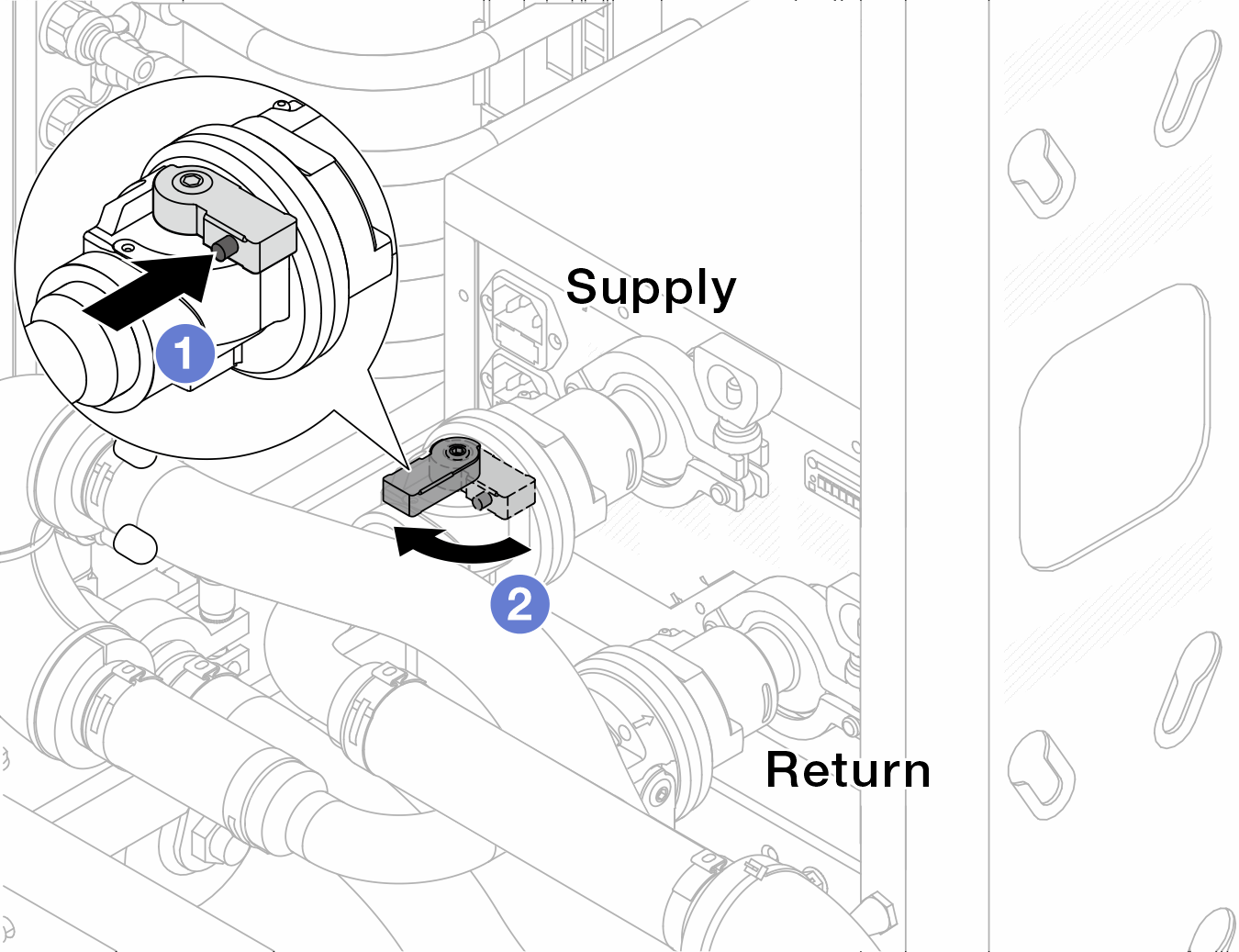

    Figure 10. Opening ball valves






    1. Press the button on the ball valve switch.
    2. Rotate the switch to fully open the valves as illustrated above.
    Attention

    • Pay close attention to the front display of CDU and maintain the system pressure at one bar.

    • For more information about liquid temperature and system pressure requirements, see Water requirements.

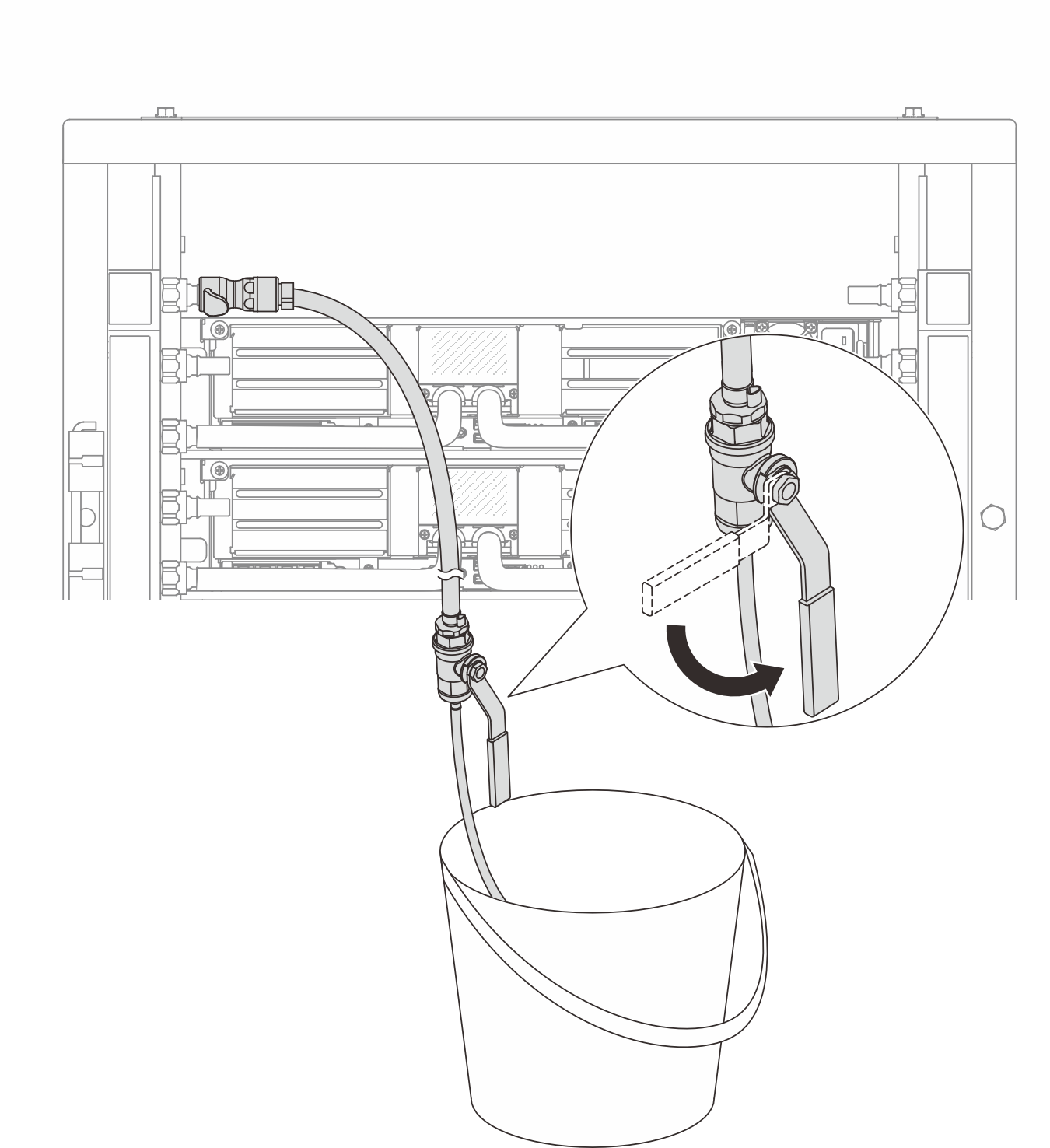

14. Slowly open the bleeder valve to conduct the air out of the hose. Close the bleeder valve once a steady stream of water flows into the bucket or there are only minimal bubbles in the bleeder hose.

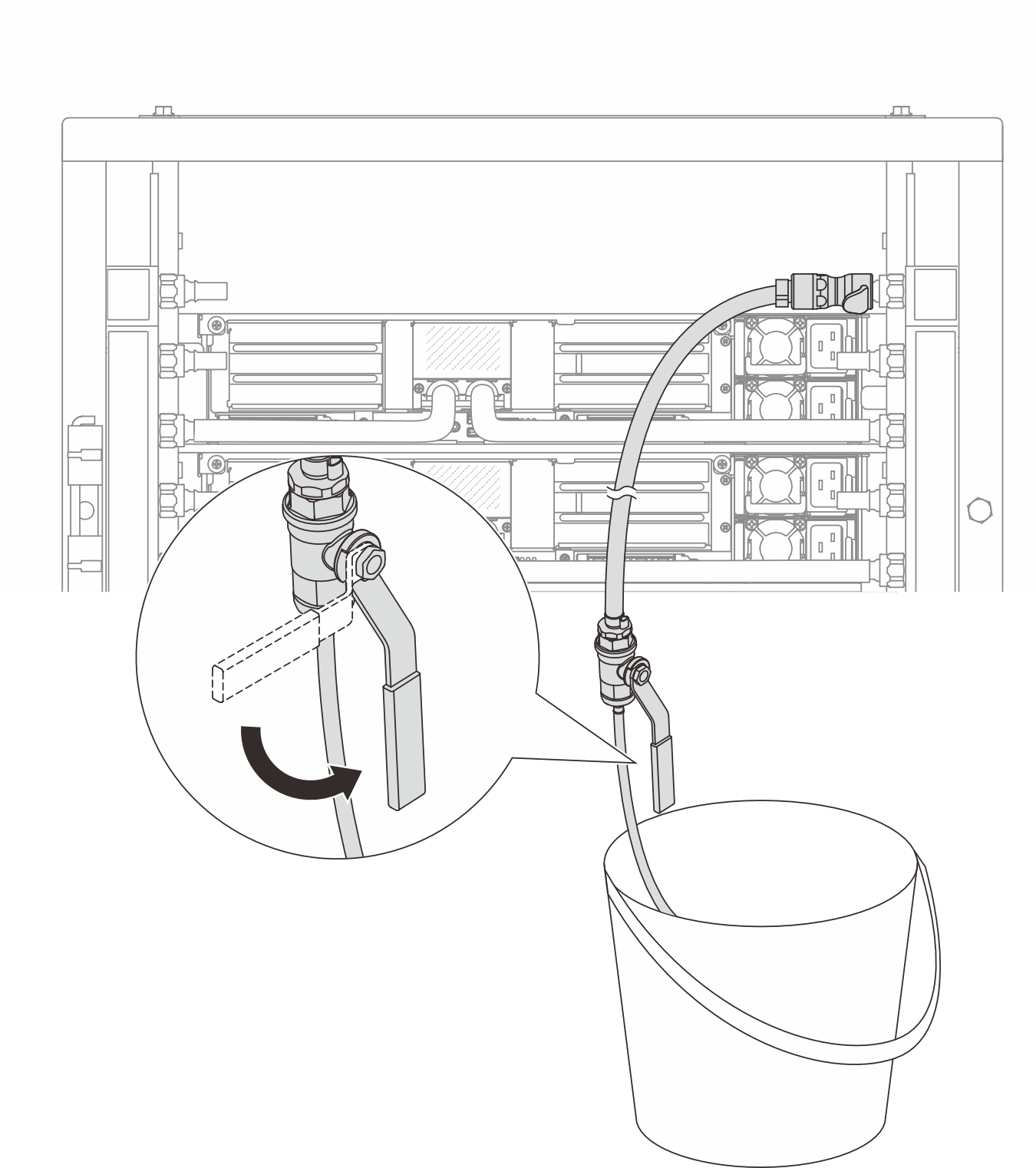

    Figure 11. Opening the bleeder valve on the supply side

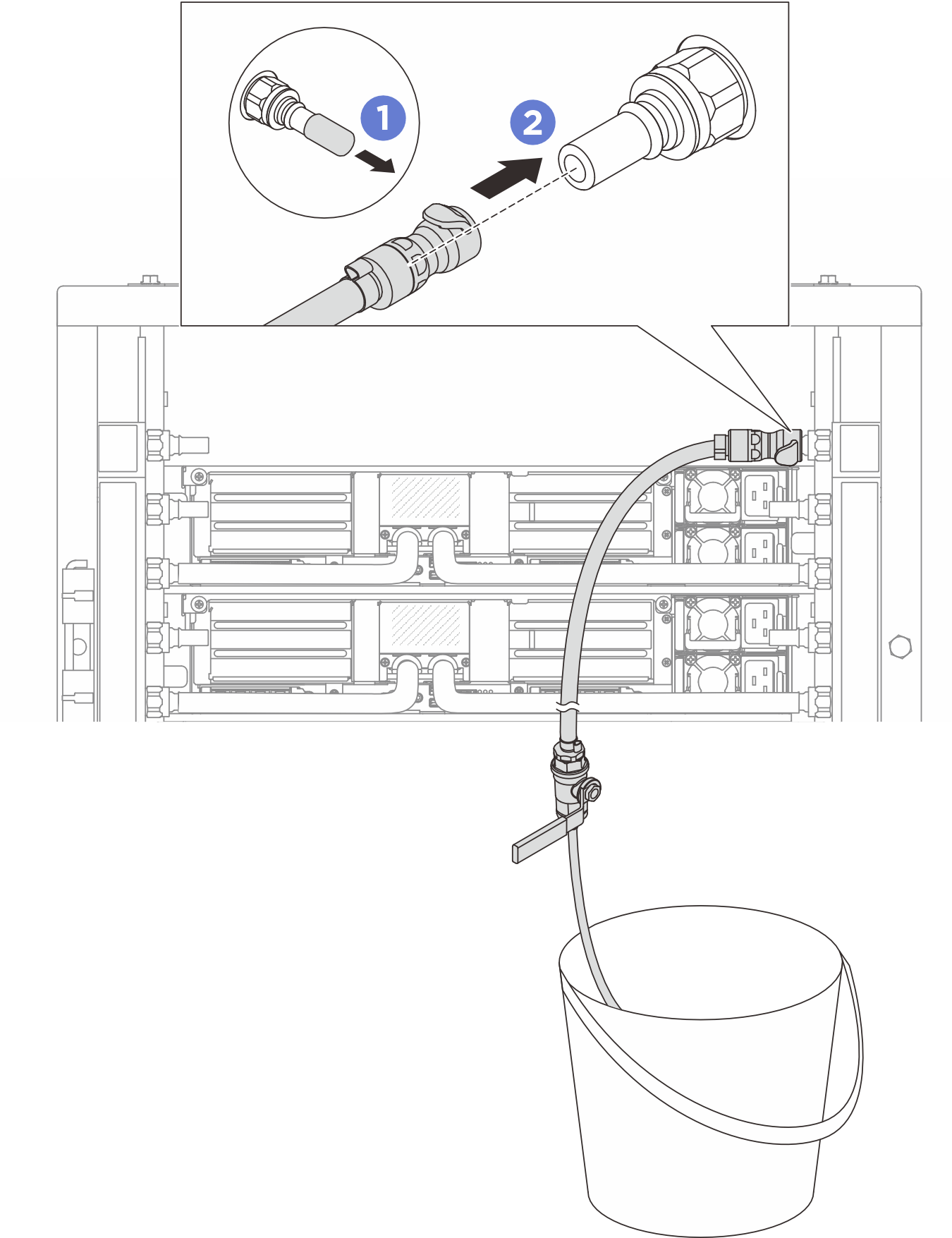

15. Install the bleeder kit to the manifold return side.
    Figure 12. Installing the bleeder kit on the return side






    1. Remove the rubber quick connect plug covers from the ports on the manifold.
    2. Plug the bleeder kit to the manifold.
16. Slowly open the bleeder valve to conduct the air out of the hose. Close the bleeder valve once a steady stream of water flows into the bucket or there are only minimal bubbles in the bleeder hose.
    Figure 13. Opening the bleeder valve on the return side






17. (For precaution) To make sure that the air inside is as little as possible, re-install the bleeder kit back to manifold supply side and do it one more time. Close the bleeder valve once a steady stream of water flows into the bucket or there are only minimal bubbles in the bleeder hose.
    Figure 14. Opening the bleeder valve on the supply side






18. Once completed, pay close attention to the front display of CDU and maintain the system pressure at one bar. For more information about liquid temperature and system pressure requirements, see Water requirements.
