Remove the rails from the rack (2.5-inch bay chassis)

Follow the instructions in this section to remove the rails from the rack.

Procedure

  1. Remove the server from rails. See Remove the server from the rack (2.5-inch bay chassis).
  2. Remove the rails from the rack.
    Front

    		Rear

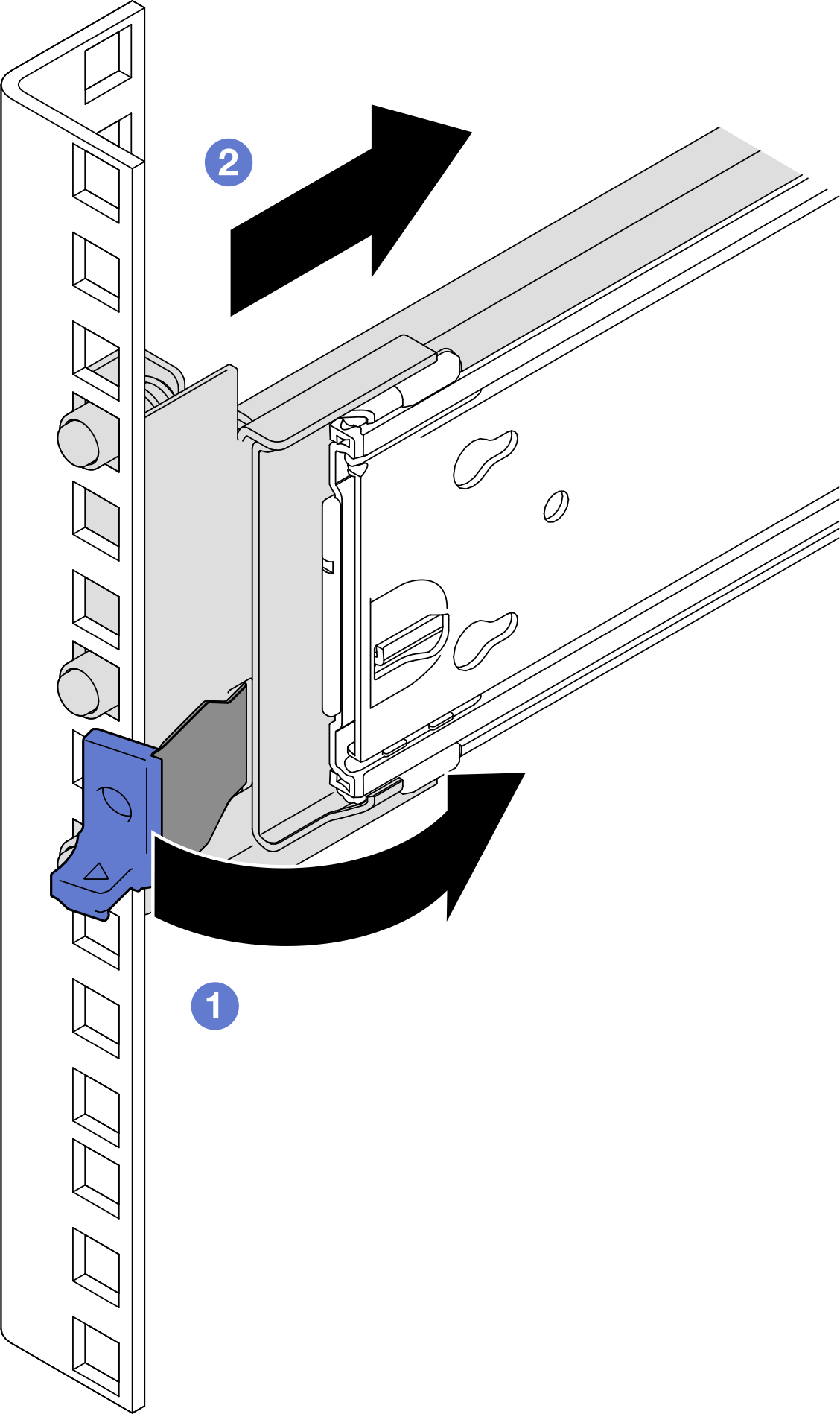

    • Rotate and hold the latch on the front end.
    • Push the rail forward and remove the rail from the front mounting flanges.

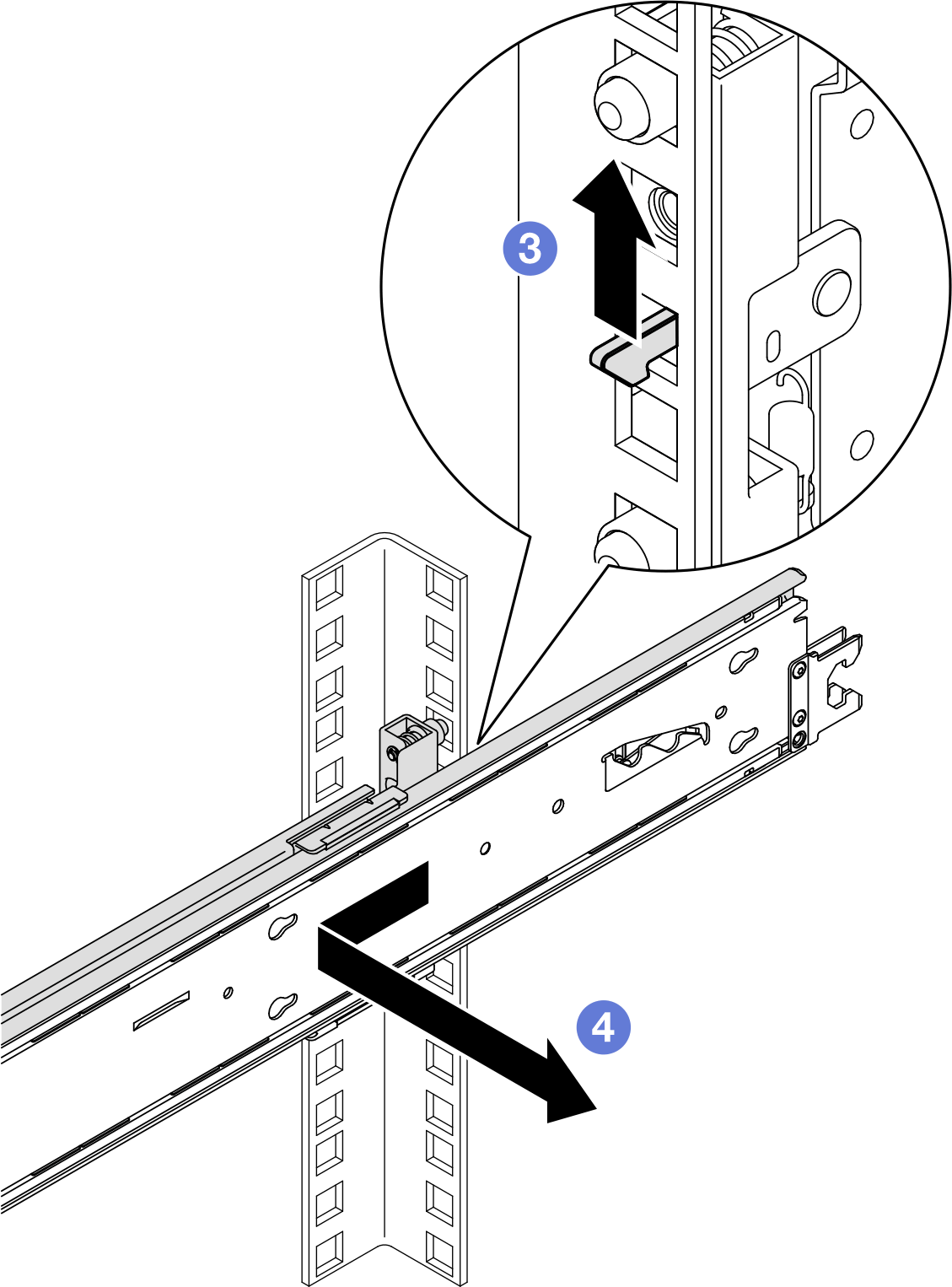

    • Pull the hook latch up to disengage the rear end of the rail.
    • Remove the rail from the rear mounting flanges.
