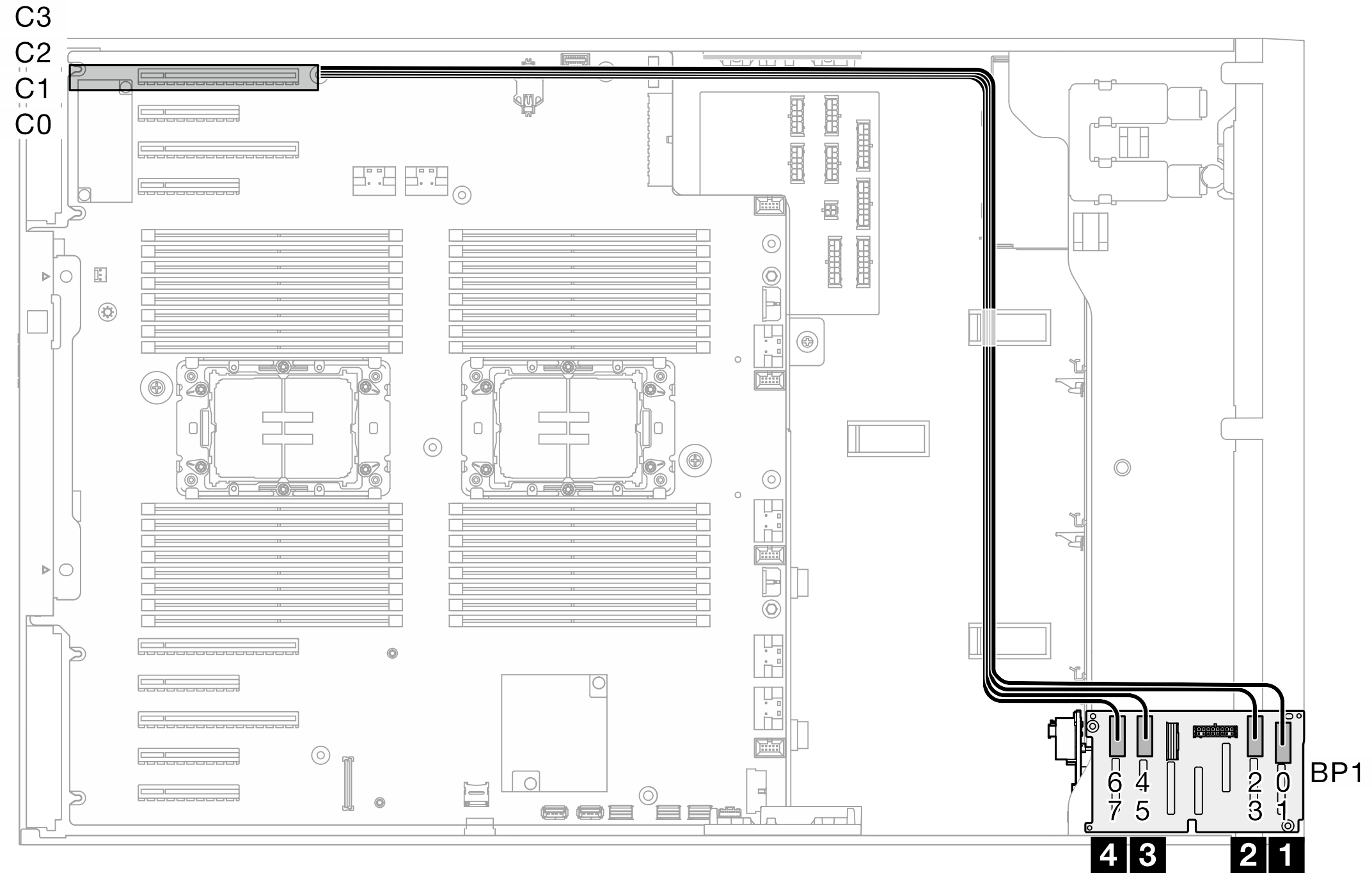

Pure NVMe combinations

See this topic to locate the combination with NVMe drive backplanes.

BP4

VROC (BP4)

Table 1. 2.5-inch drive cable routing - VROC (BP4)

From	To	Backplanes
`4b` PCIe 1, system board `4b` PCIe 2, system board `4a` PCIe 5, system board `4a` PCIe 6, system board	`4b` NVMe 4-5, BP4 `4b` NVMe 6-7, BP4 `4a` NVMe 0-1, BP4 `4a` NVMe 2-3, BP4	BP4: NVMe (empty) (empty) (empty)

BP34

VROC (BP34)

Table 2. 2.5-inch drive cable routing - VROC (BP34)

From	To	Backplanes
`4b` PCIe 1, system board `4b` PCIe 2, system board `4a` PCIe 5, system board `4a` PCIe 6, system board `3b` PCIe 4, system board `3b` PCIe 3, system board `3a` C0, Retimer `3a` C1, Retimer `3s` NA	`4b` NVMe 4-5, BP4 `4b` NVMe 6-7, BP4 `4a` NVMe 0-1, BP4 `4a` NVMe 2-3, BP4 `3b` NVMe 4-5, BP3 `3b` NVMe 6-7, BP3 `3a` NVMe 0-1, BP3 `3a` NVMe 2-3, BP3 `3s` NA	BP4: NVMe BP3: NVMe (empty) (empty)

BP234

VROC (BP234)

Table 3. 2.5-inch drive cable routing - VROC (BP234)

From	To	Backplanes
`4b` PCIe 1, system board `4b` PCIe 2, system board `4a` PCIe 5, system board `4a` PCIe 6, system board `3a` PCIe 4, system board `3a` PCIe 3, system board `3b` C0, Retimer `3b` C1, Retimer `2b` C0, Retimer `2b` C1, Retimer `2a` C0, Retimer `2a` C1, Retimer `2s` NA	`4b` NVMe 4-5, BP4 `4b` NVMe 6-7, BP4 `4a` NVMe 0-1, BP4 `4a` NVMe 2-3, BP4 `3a` NVMe 0-1, BP3 `3a` NVMe 2-3, BP3 `3b` NVMe 4-5, BP3 `3b` NVMe 6-7, BP3 `2b` NVMe 0-1, BP2 `2b` NVMe 2-3, BP2 `2a` NVMe 4-5, BP2 `2a` NVMe 6-7, BP2 `2s` NA	BP4: NVMe BP3: NVMe BP2: NVMe (empty)
