System I/O board, front I/O board, and processor board
The following illustrations show the locations of different boards that the system-board assembly consists of.
Locations of system I/O board, front I/O board, and processor board
The system-board assembly consists of system I/O board, front I/O board, and processor board. See the following illustration for their locations.

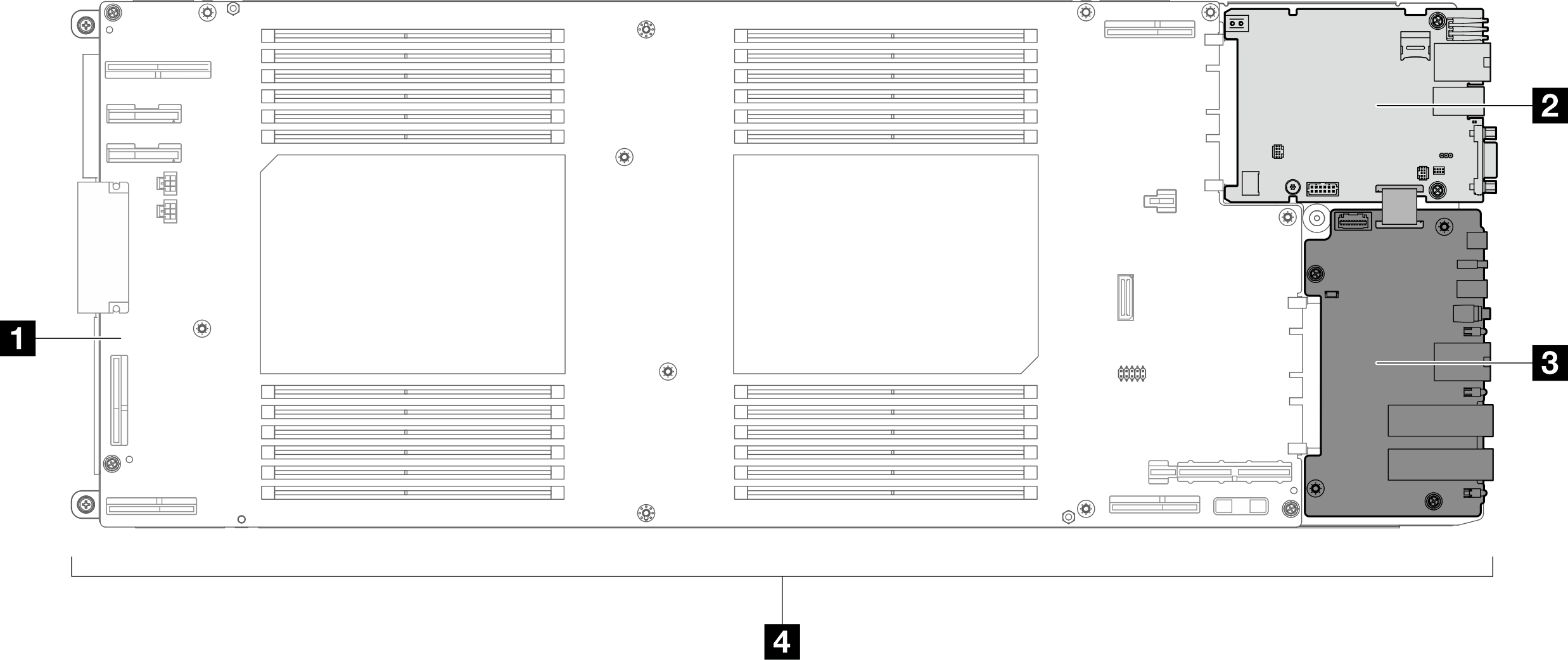

Figure 1. Locations of system I/O board, front I/O board, and processor board
| 1 Processor board | 2 System I/O board System I/O board is also known as also known as Datacenter-ready Secure Control Module (DCSCM). |
| 3 Front I/O board | 4 System-board assembly |
