Remove the MicroSD card

Follow instructions in this section to remove the MicroSD card.

About this task

S002

CAUTION

The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

• Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

• If the node is installed in an enclosure or mounted, remove the node from the enclosure or mount. See Configuration guide.

Procedure

1. Make preparation for this task.
   1. Remove the fan shroud. See Remove a fan shroud.
   2. If applicable, remove the expansion filler. See Remove the expansion filler.
   3. If applicable, remove the expansion kit. See Remove the expansion kit.
   4. Remove the bottom cover. See Remove the bottom cover.
2. Locate the MicroSD socket on the system board. See System-board connectors.
3. Remove the MicroSD card.
   1. Slide the socket lid to the open position.
   2. Lift open the socket lid.
   3. Remove the MicroSD card from the socket.

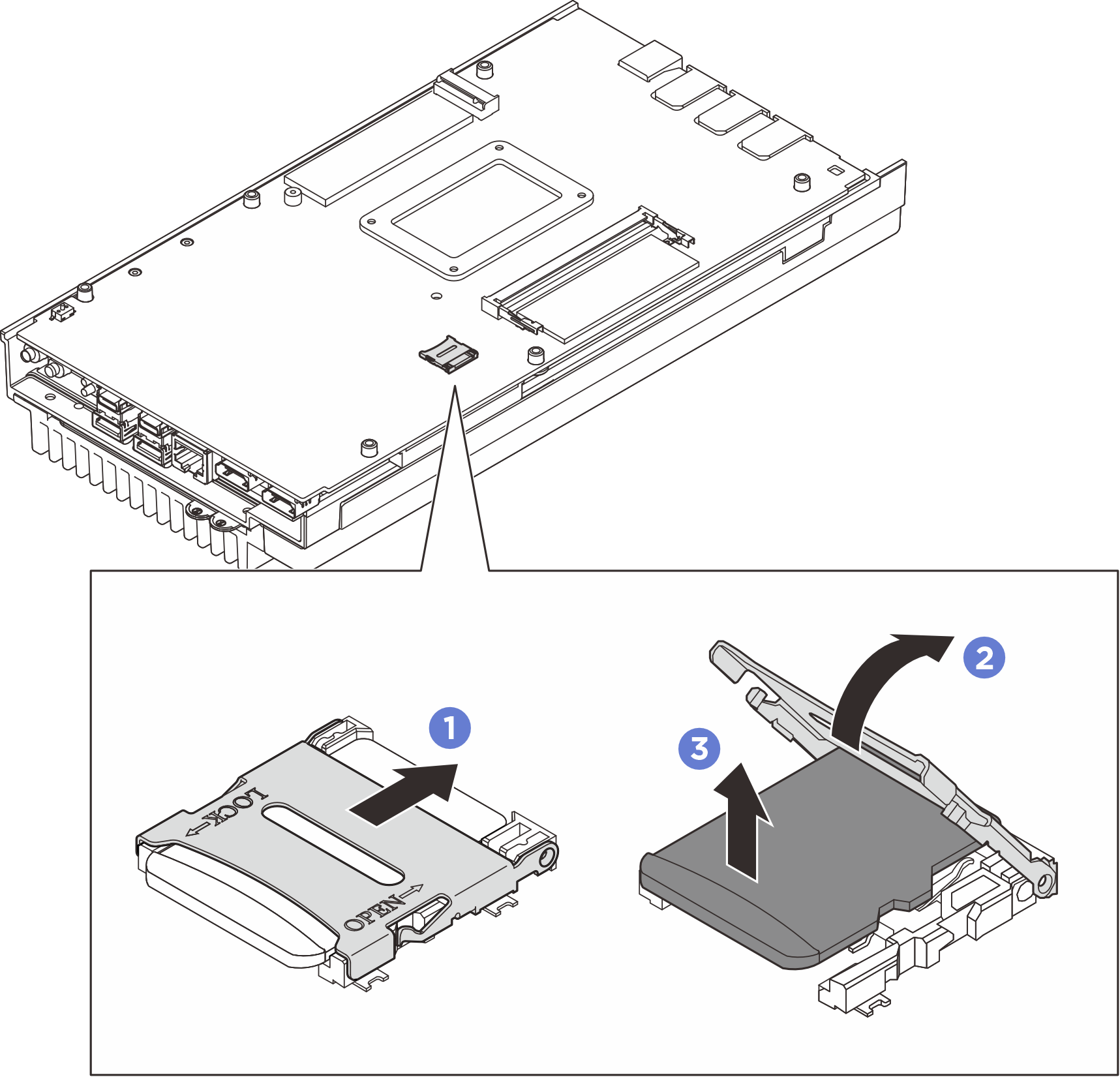

   Figure 1. Removing the MicroSD card
