System-board connectors
The following illustrations show the internal connectors on the system board.

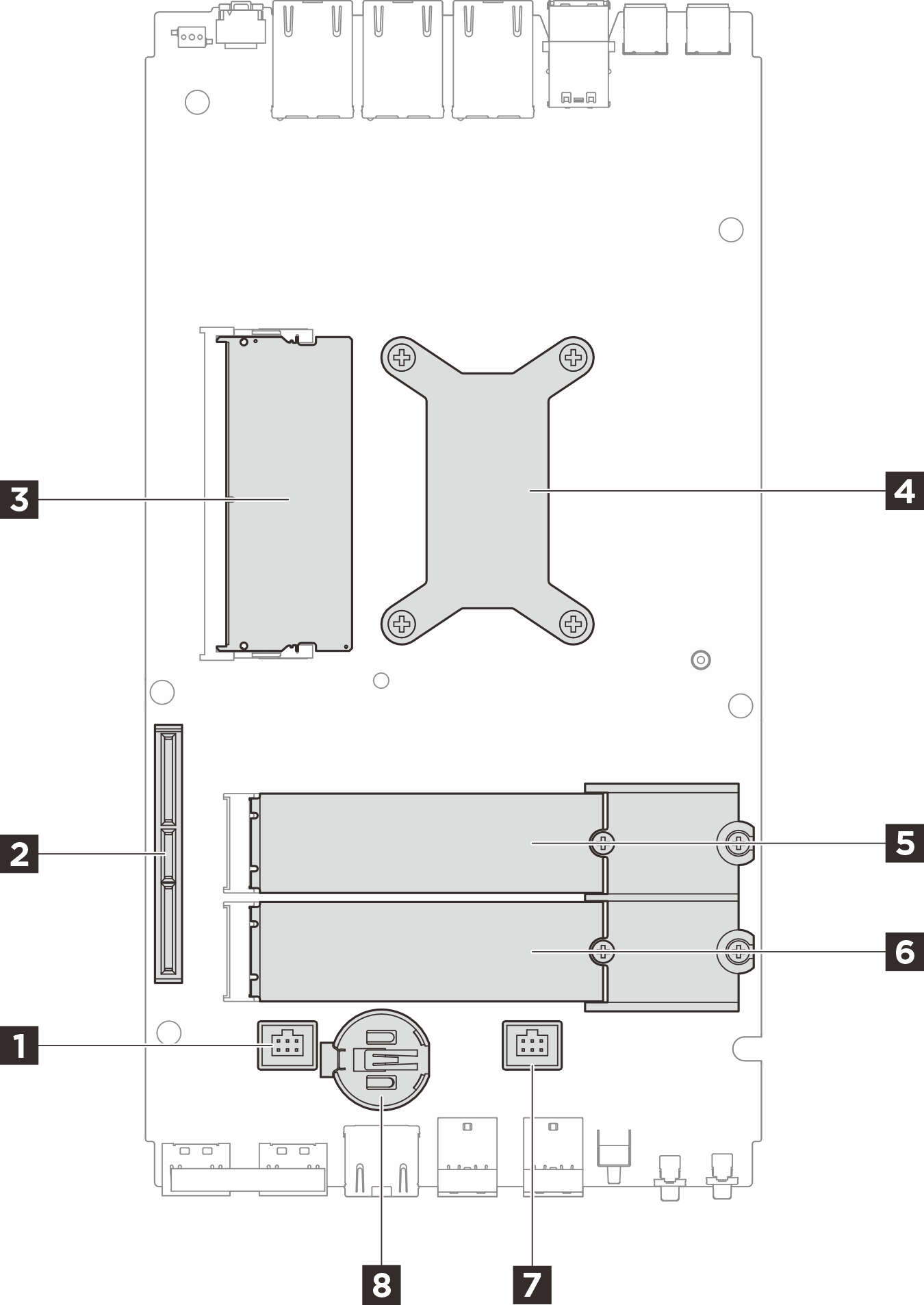

Figure 1. System-board connectors
Top side | Bottom side |
![]() | ![]() |
Top side | Bottom side |
1 Fan connector 1 | 1 M.2 slot 1 |
2 GenZ 4C connector for expansion kit | 2 Processor backplate |
3 DIMM slot 1 | 3 DIMM slot 2 |
4 Processor & processor heatsink | 4 MicroSD socket |
5 M.2 slot 2 | |
6 M.2 slot 3 | |
7 Fan connector 2 | |
8 CMOS battery (CR2032) |
