Top view
The illustrations in this section provide information about the top view of the server.
Note
Depending on the configuration, your server might be slightly different from the illustration.
Top view: top layer
The following illustration is the top view after removing the fan shroud.

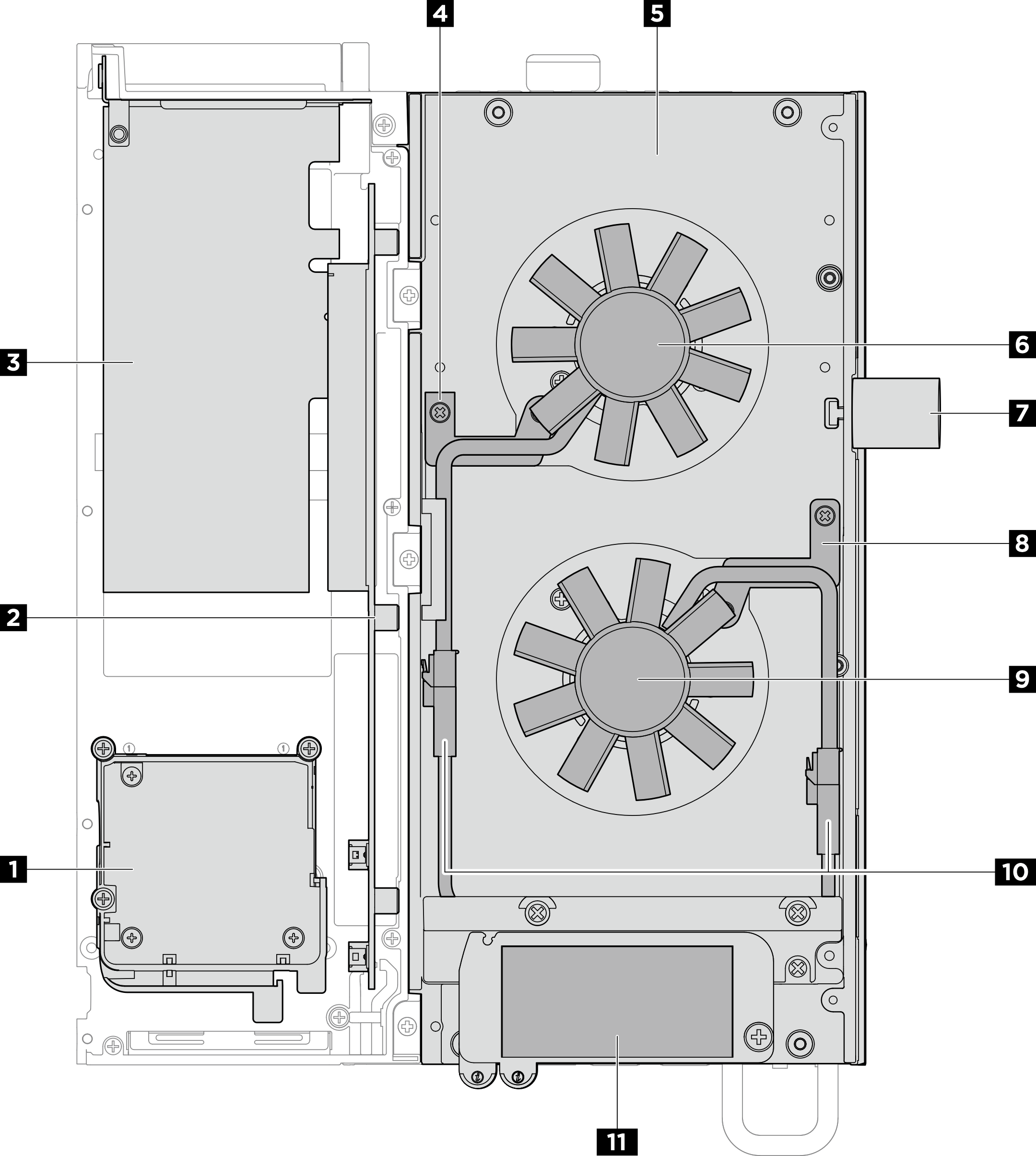

Figure 1. Top view: top layer
| Expansion kit | Server |
1
| 4 Fan bridge cable bracket 1 |
| 2 PCIe riser card | 5 Top cover |
| 3 PCIe adapter | 6 Fan 1 |
| 7 Kensington lock | |
| 8 Fan bridge cable bracket 2 | |
| 9 Fan 2 | |
| 10 Fan bridge cables | |
| 11 Pull-out information tabs |
Top view: bottom layer
The following illustration is the top view after removing the expansion kit, fan shroud, and the removable components on the top layer.

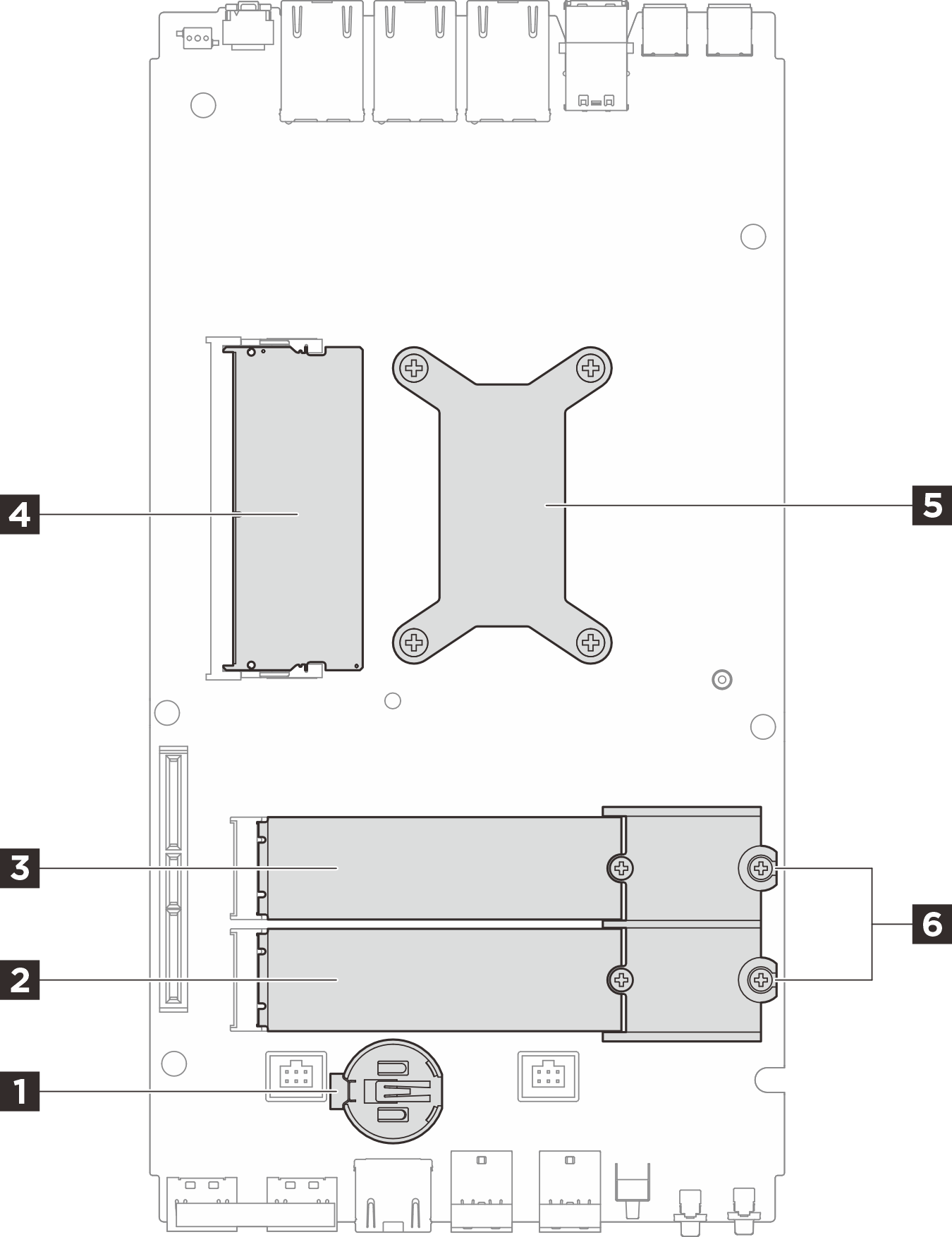

Figure 2. Top view: bottom layer
| 1 CMOS battery | 2 M.2 drive slot 3 |
| 3 M.2 drive slot 2 | 4 DIMM slot 1 |
| 5 Processor & processor heatsink | 6 M.2 holder (For M.2 2280 drive only) |
