System fan numbering
This section contains system fan numbering information of SE100. Understanding the system fan numbering helps you correctly install and configure fans in the system.
Fan support matrix
| Location |  |  |  | |||
| Numbering | 1 Fan 1 | 2 Fan 2 | 3 Fan 3 | 4 Fan 4 | 5 Fan 5 | 6 Fan 6 |
| Node | √ | √ | ||||
| Node with Ethernet adapter expansion kit | √ | √ | √ | √ | ||
| 1U2N enclosure | √ | √ | √ | √ | ||
| 1U3N enclosure | √ | √ | ||||
Note
Before installing the node to the enclosure, to avoid the node interfering with the enclosure, make sure to remove the fan 1 & 2 from the node.
1 2 Node fan module: Two 6513 non-hot swap fans for each node.

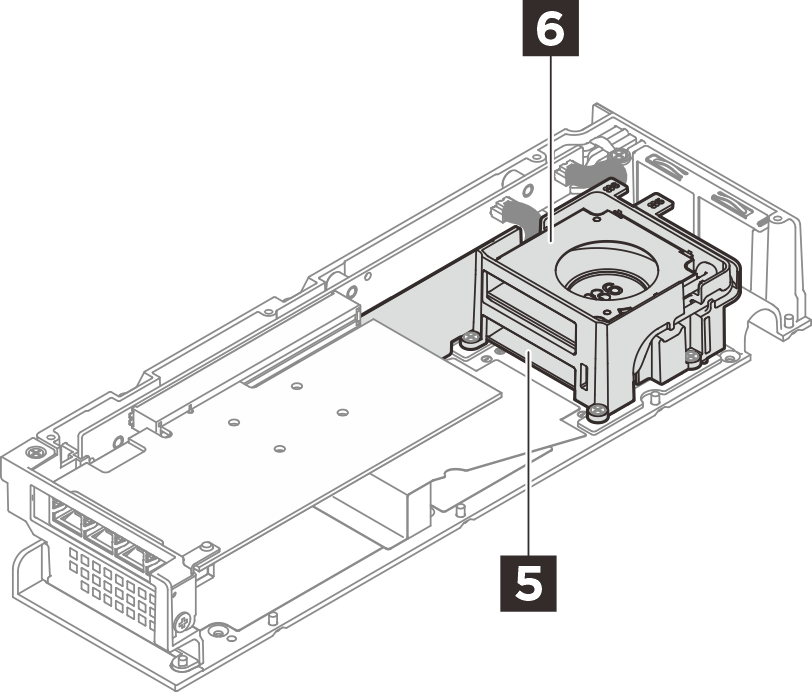

5 6 Expansion kit fan module: Ethernet adapter expansion kit supports two 5010 blower fans.

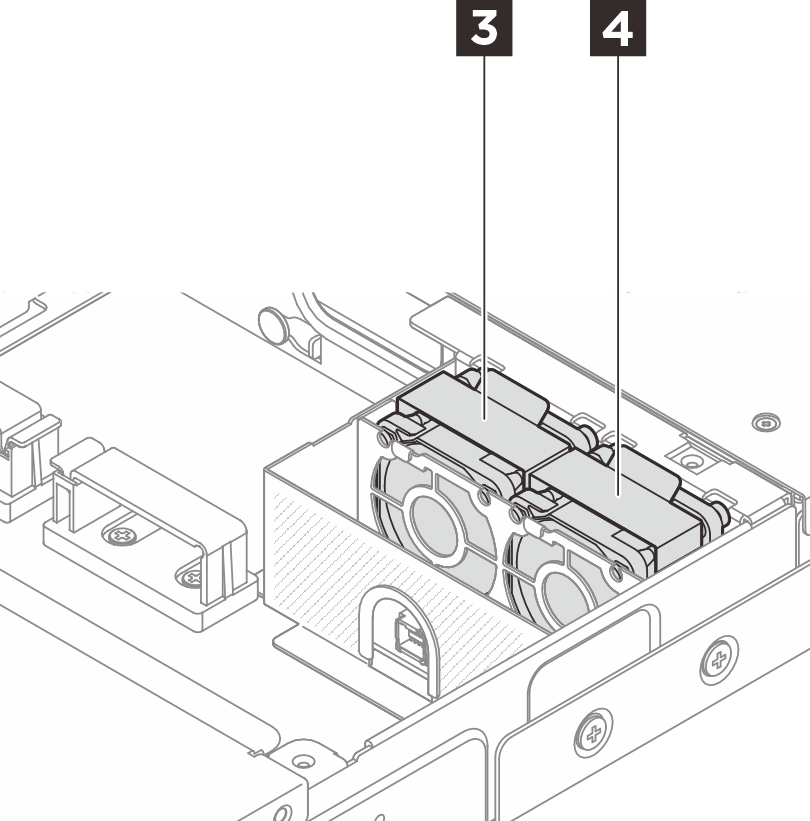

- 3 4 Enclosure fan module:
- 1U2N enclosure supports up to four 4028 non-hot swap fans, two for each node
- 1U3N enclosure supports up to six 4028 non-hot swap fans, three for each node
